- Type: Vacuum Tube
- 150 Watts x 2-Channels
- Striking design with carbon fiber side panels
- Unity Coupled Circuit Output Transformers
- Sentry Monitor™, Solid Cinch™ speaker binding posts
MC2152 70th Anniversary 2-Channel Power Amplifier
Ideal for 2-Channel Audio Systems

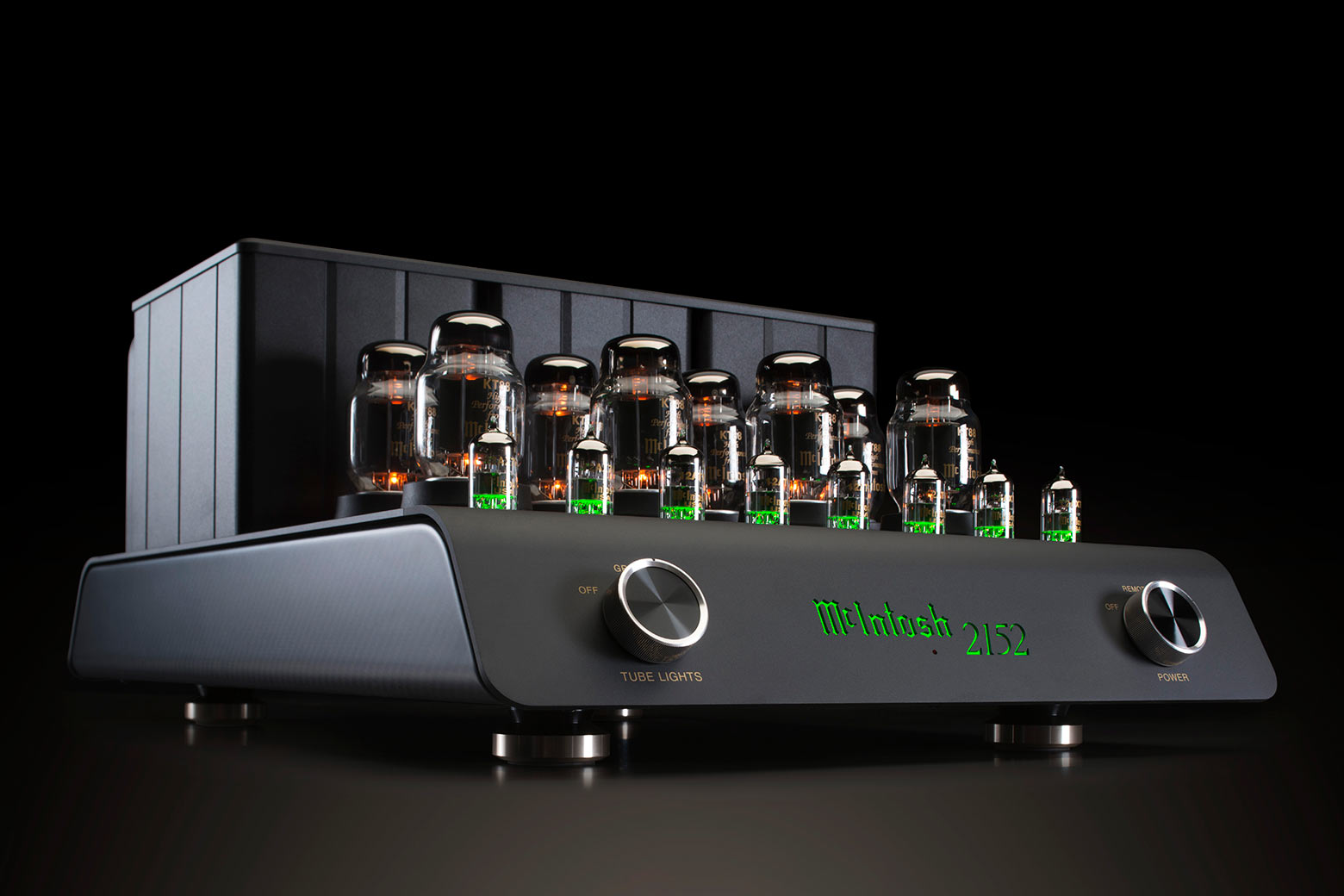

The MC2152 70th Anniversary Vacuum Tube Amplifier is a 150 Watt per channel stereo amplifier and features a striking new design to celebrate our seven decades of handcrafting some of the best home audio equipment the world has ever heard. While its design is new, the MC2152 incorporates the lessons we’ve learned and the techniques we’ve invented in our 70 years of audio engineering.

Utilizing our patented Unity Coupled Circuit output transformer technology – the same technology the company was founded on in 1949 – the full 150 Watts can be delivered to almost any pair of speakers regardless if they have 2, 4 or 8 Ohm impedance.
"What ever I played the McIntosh duo threw it into our room with stunning clarity and shocking power... the C70 and MC2152 are truly amazing – a visual and audible display like no other." Awarded 5 out of 5 Globes. – Hi-Fi World

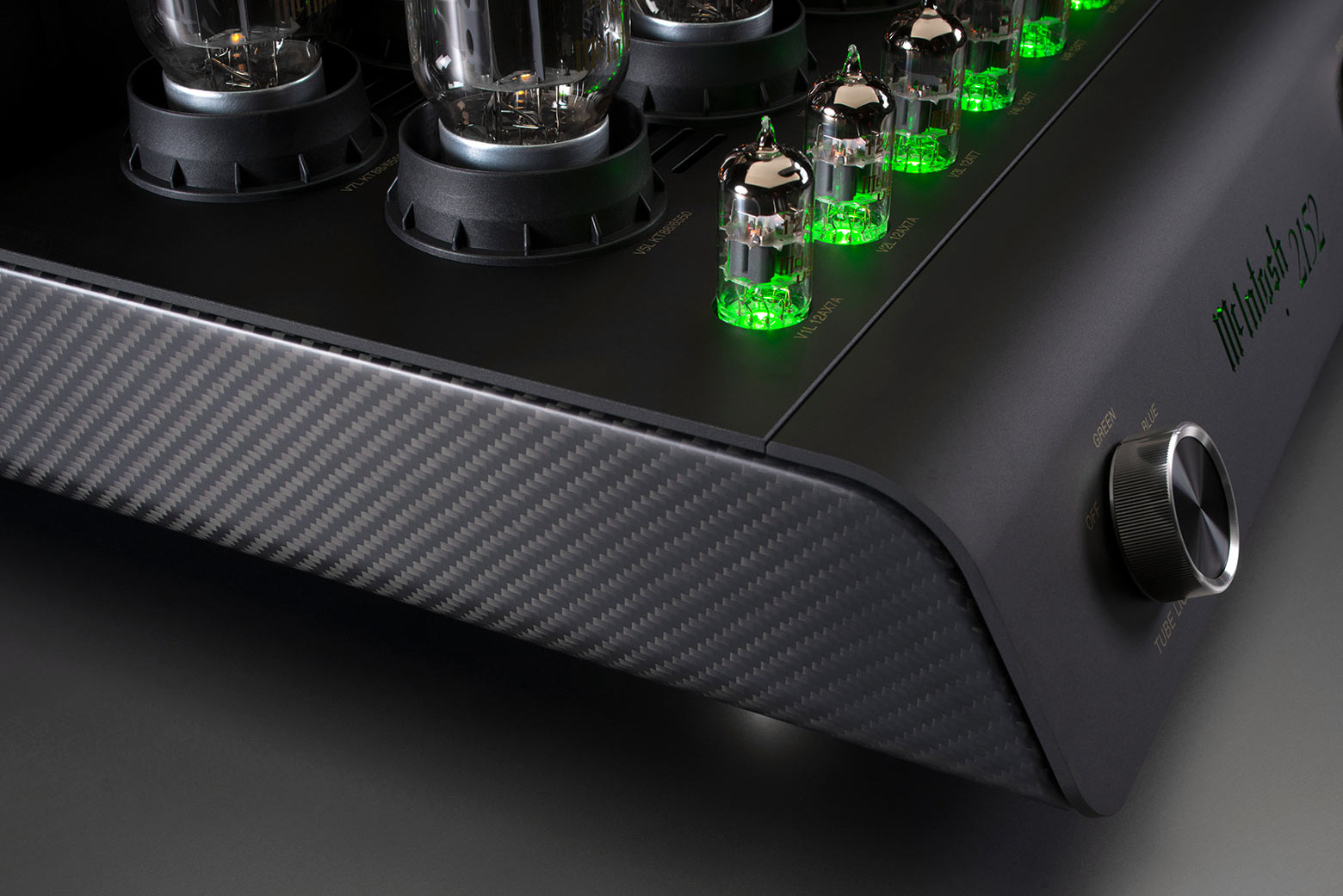

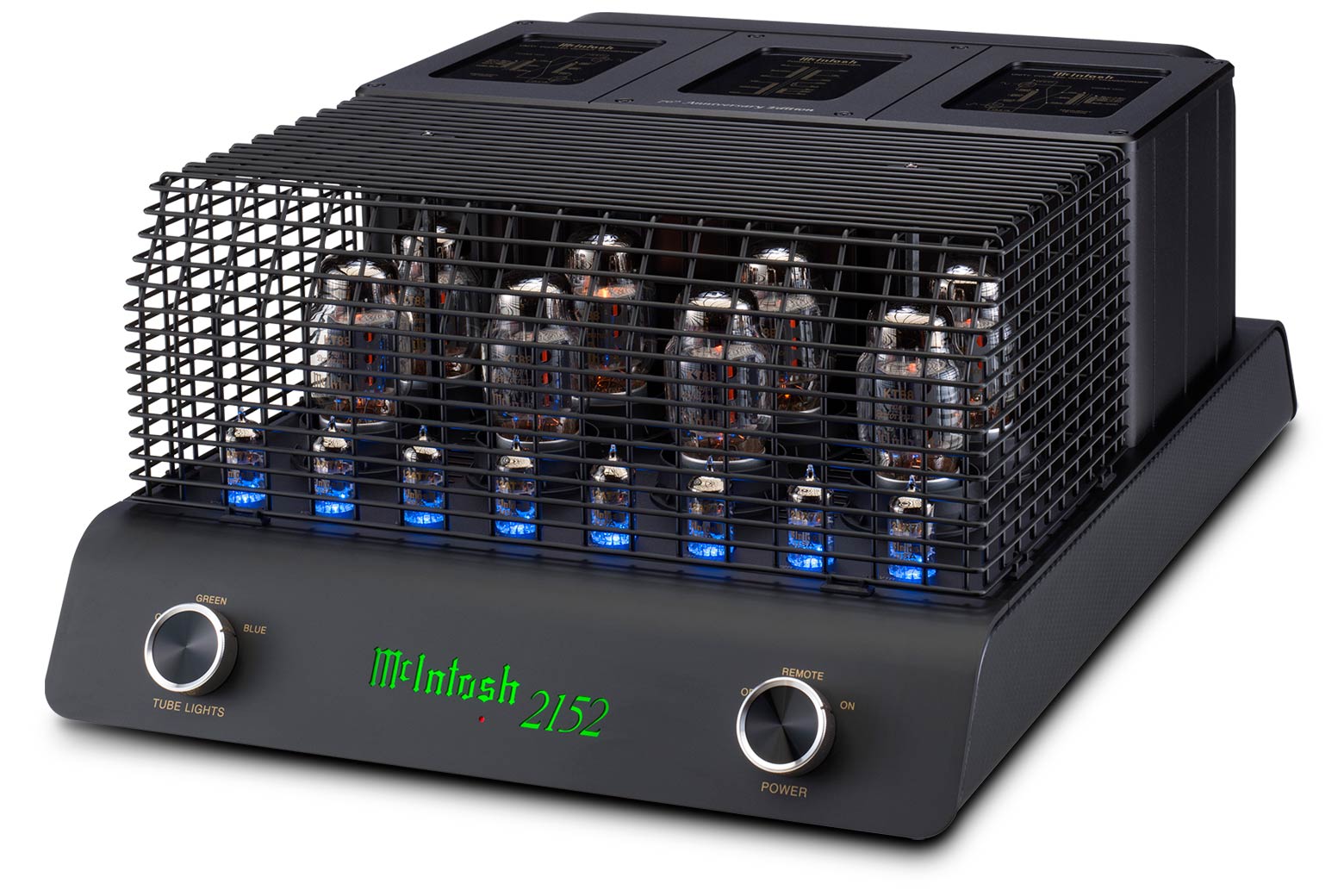

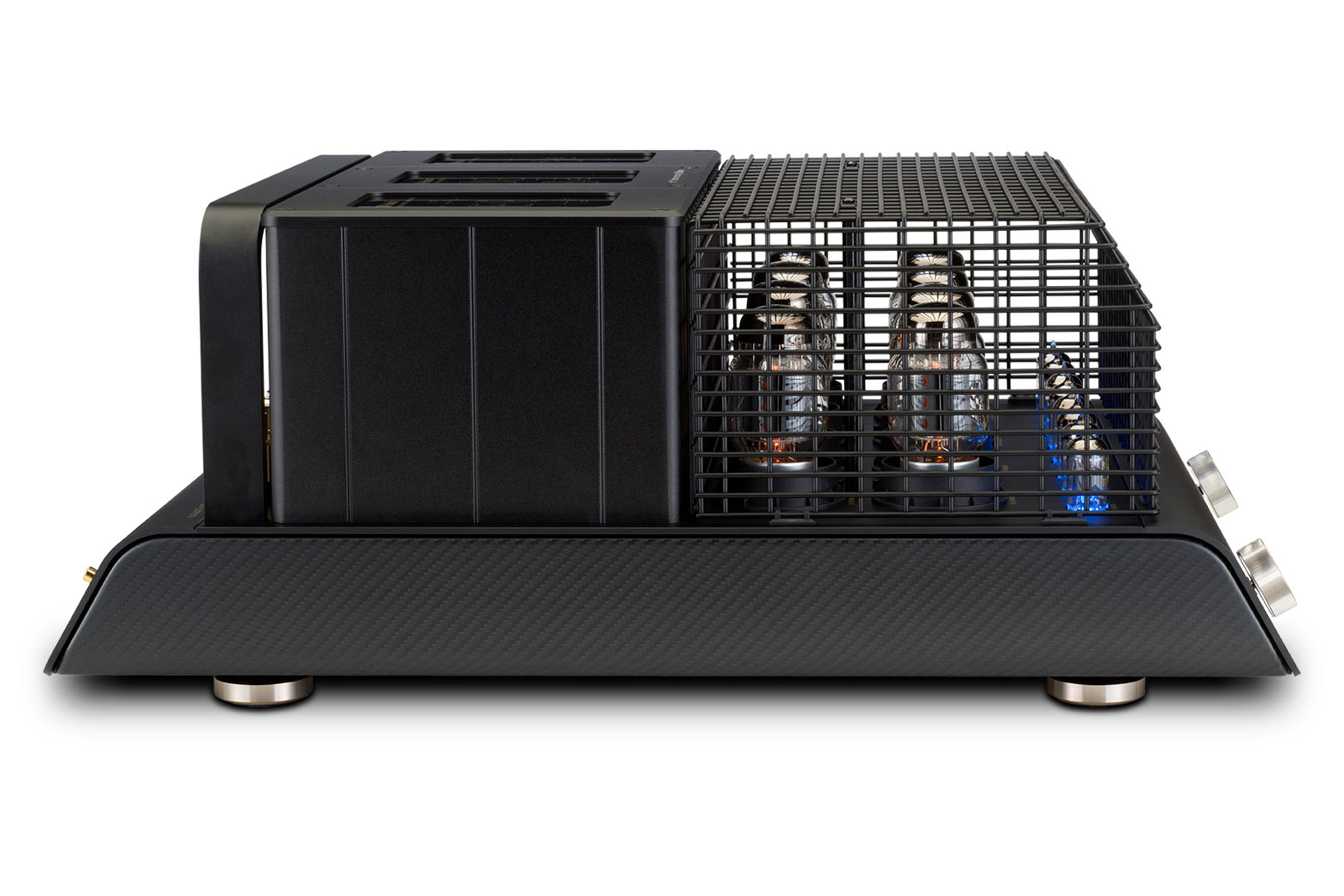

The stunning new design of the MC2152 is highlighted by a bead blasted black anodized aluminum chassis accentuated with matte finish carbon fiber side panels. The front panel showcases a backlit laser cut McIntosh logo flanked by classic McIntosh knobs. The vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder coated finish.

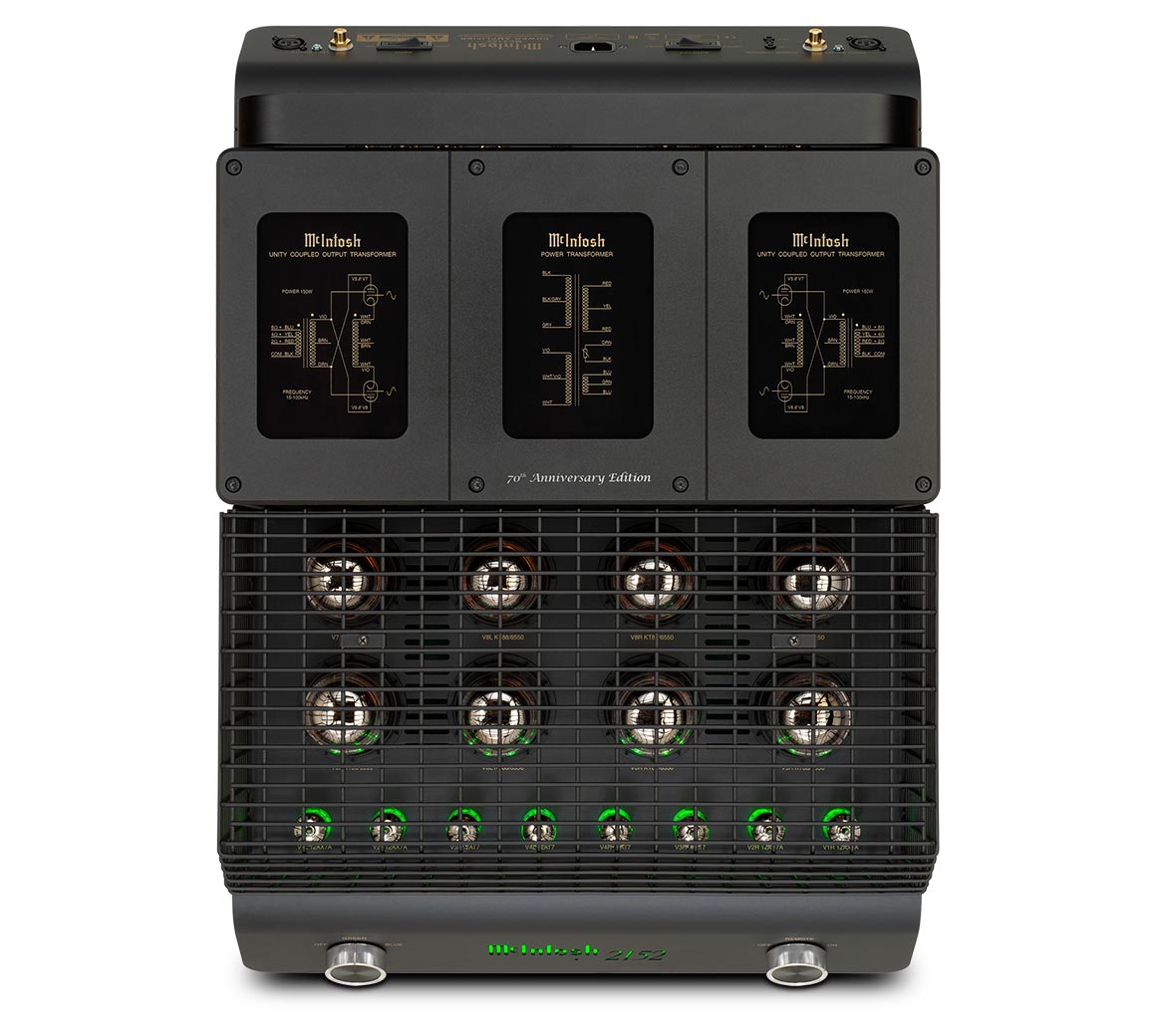

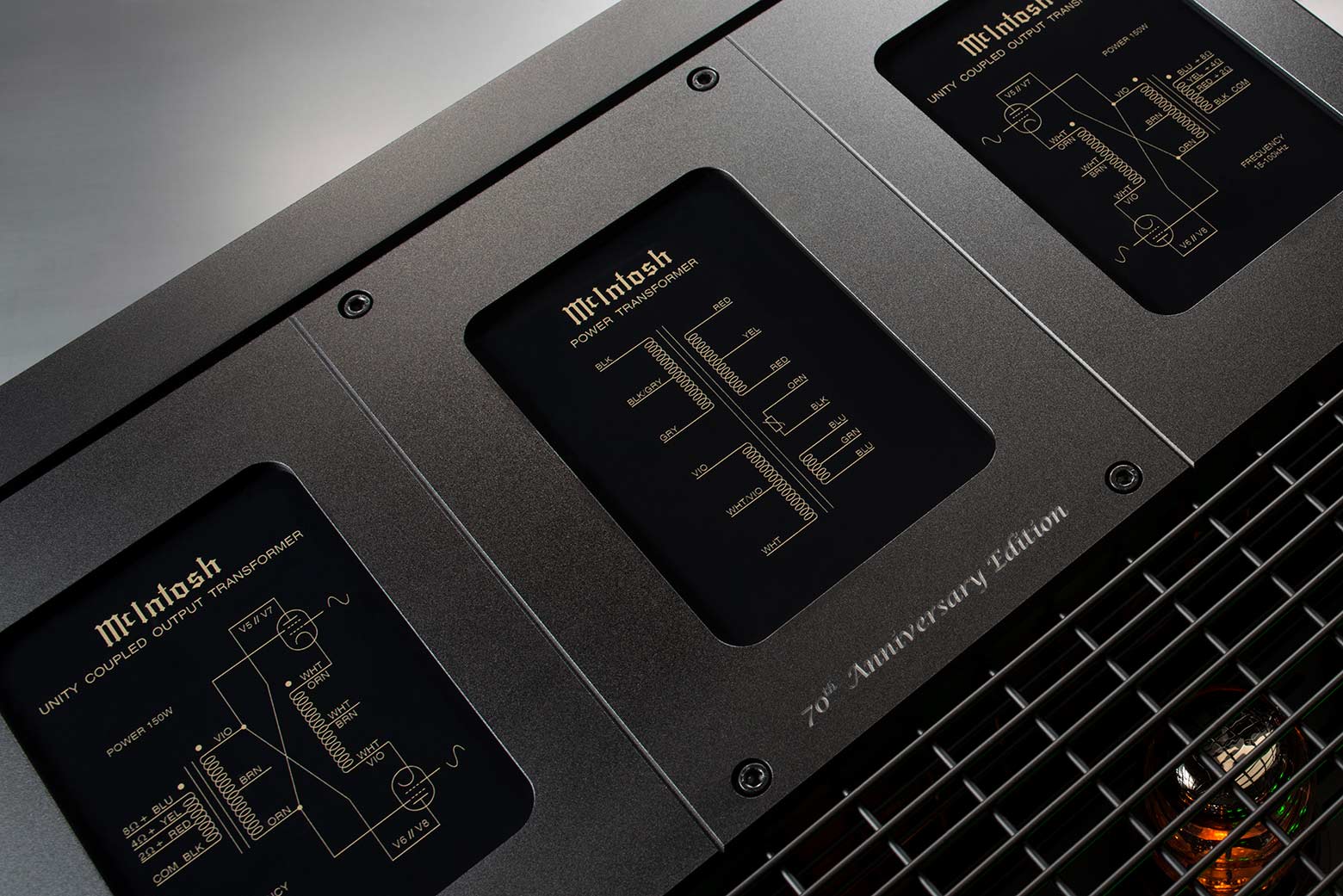

To the back are the two Unity Coupled Output Transformers with the power transformer centered between them. All three transformers are housed in glass topped extruded enclosures displaying the wiring diagram for each transformer. A 70th Anniversary badge is laser engraved into the top plate of the enclosures.

"Deep and satisfying bass, a huge soundstage, lifelike imaging... the kind of tube sound we all secretly want, with utterly no constraints on frequency range." - The Occasional

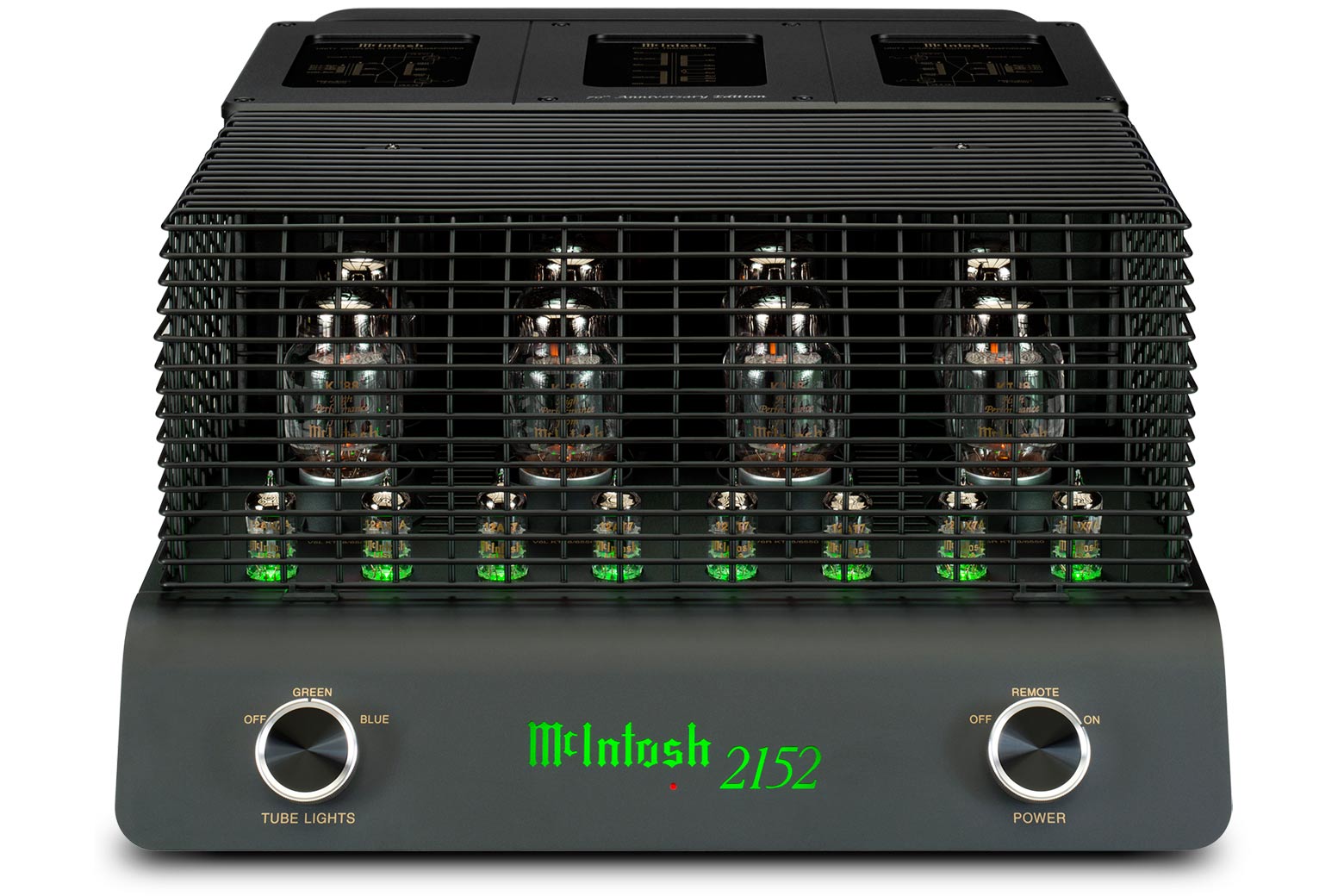

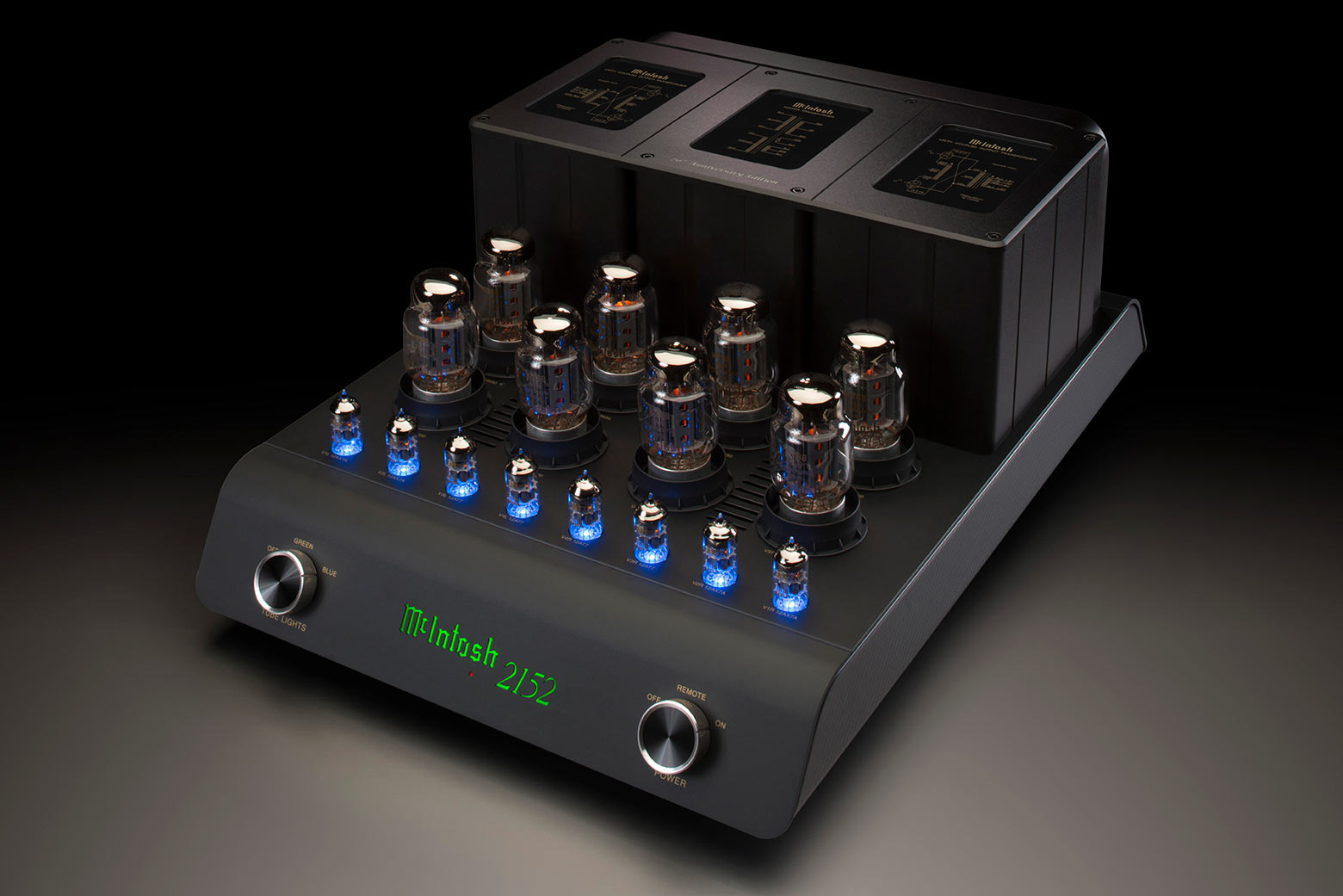

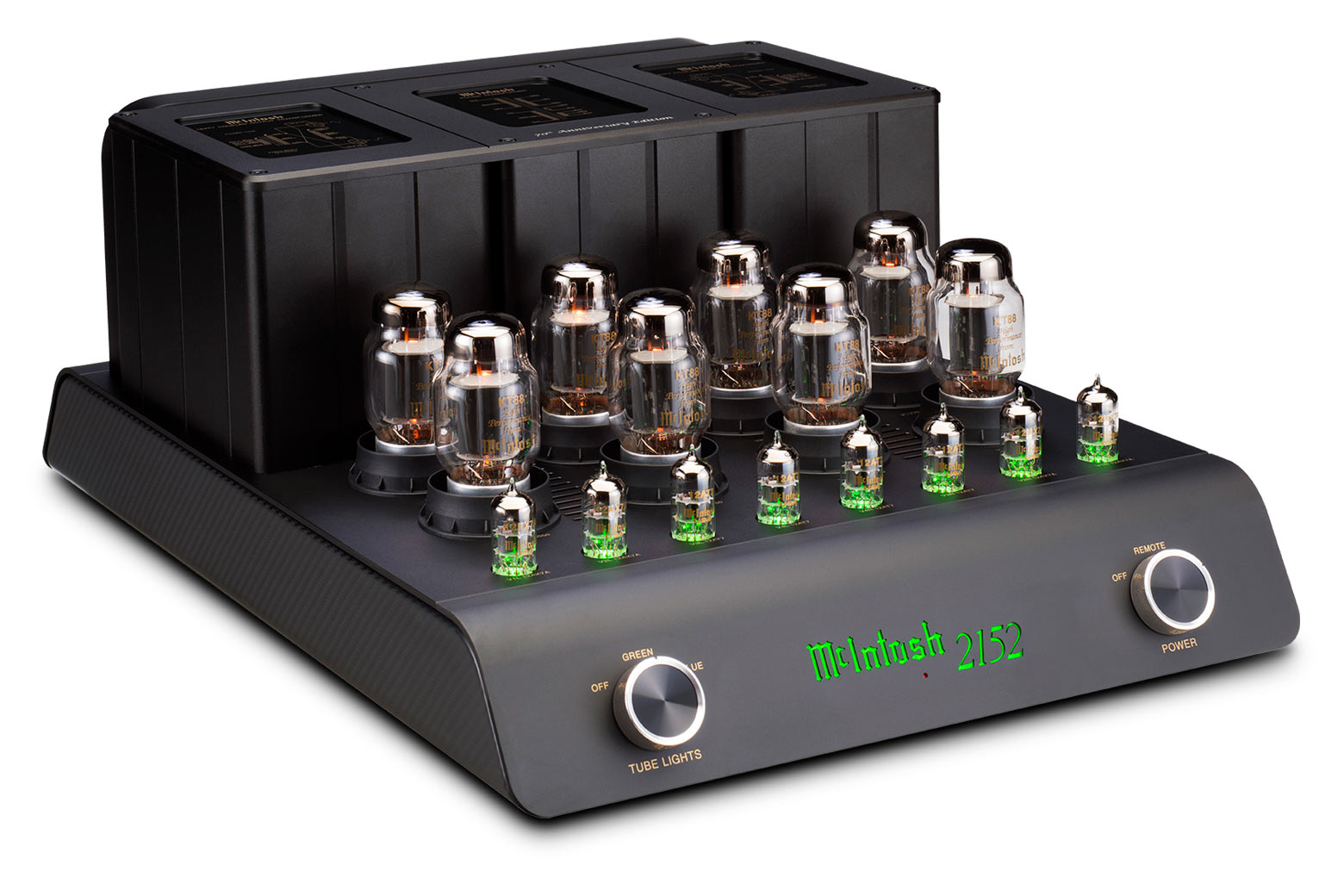

The MC2152 uses eight KT88 output vacuum tubes plus eight small signal tubes comprised of four 12AX7A and four 12AT7 vacuum tubes; half of the tube complement is assigned to each audio channel. The 12AX7A vacuum tubes are for the Balanced and Input amps, while the 12AT7 tubes are for the Voltage and Driver amps. The LEDs under the eight small signal tubes can be set to three illumination settings: Off (which allows the tubes natural amber glow to be visible), Green or Blue – a new color option unique to the MC2152. Our Sentry Monitor™ technology monitors the output current and shuts the amplifier off if it ever exceeds safe limits.

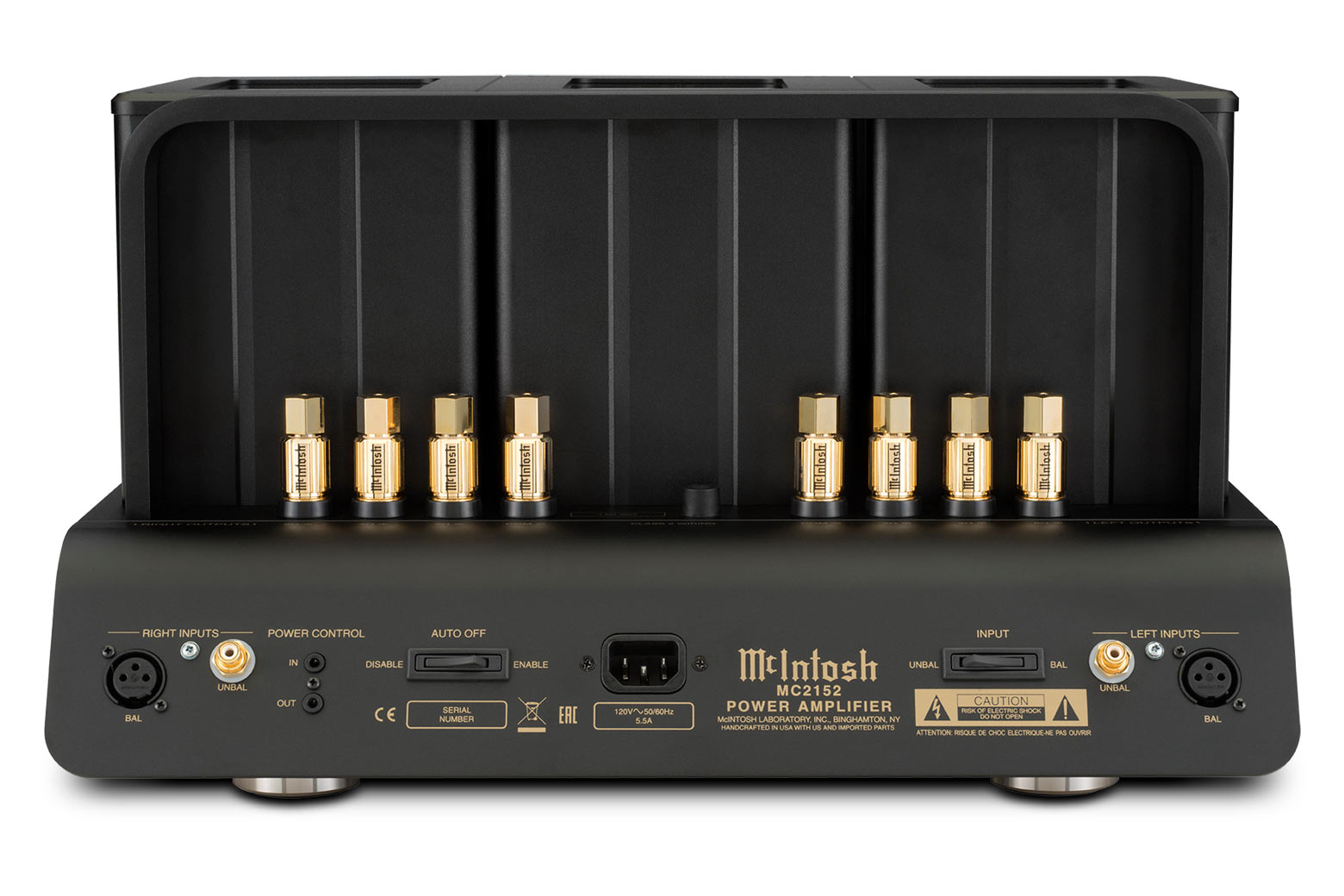

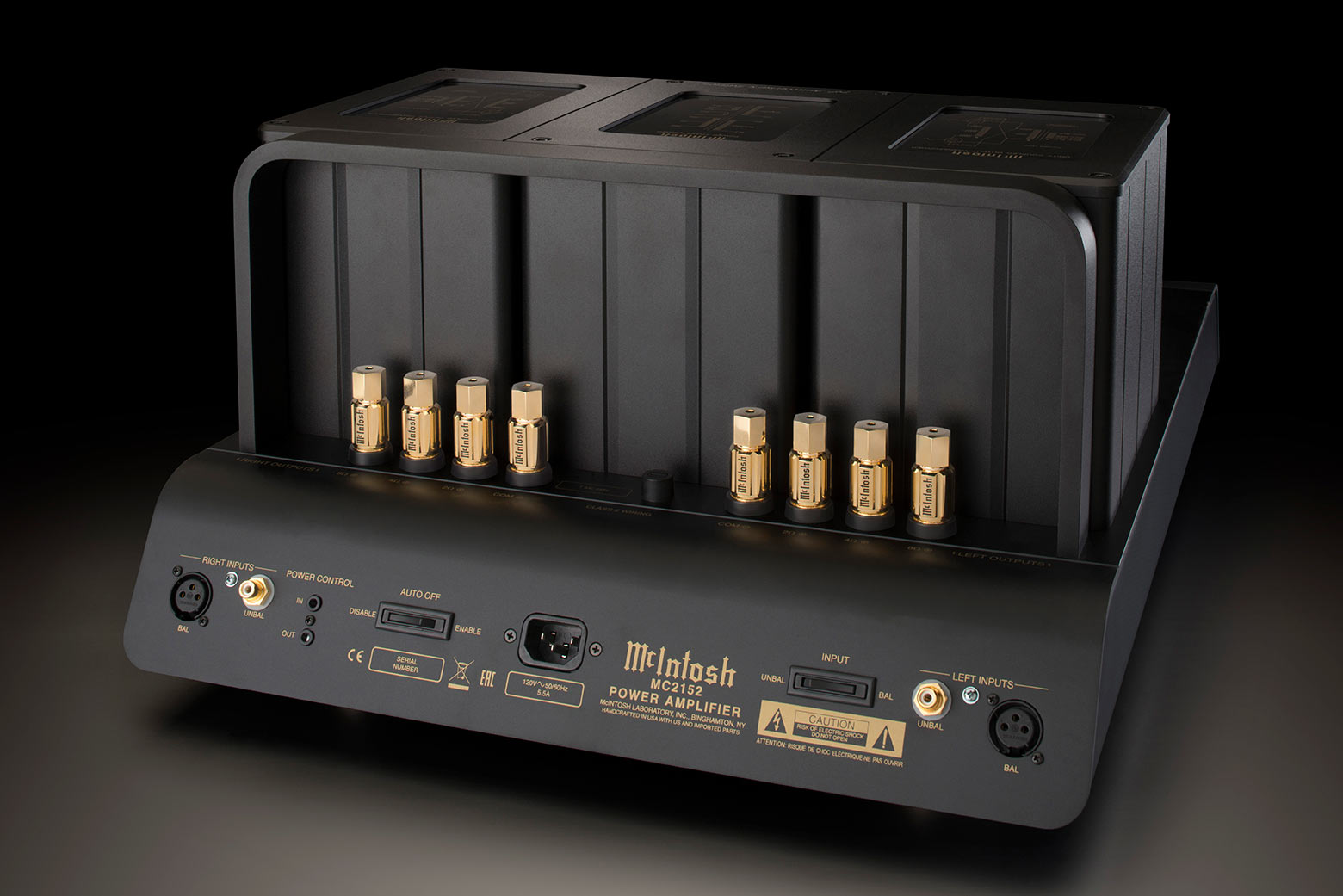

On the back are both balanced and unbalanced inputs, along with our patented Solid Cinch™ speaker binding posts to securely connect your speaker cables to your speakers, and an input and output for our Power Control technology that will automatically turn other connected McIntosh components such as preamplifiers, CD players or turntables, on and off. Contact your local dealer to learn more.

-
Specifications
Electronic Specifications
-
- FTC Power Output Rating
- 150 W
-
- Power Output per Channel
- 150 W into 2, 4 or 8 ohms
-
- Number of Channels
- 2
-
- Total Harmonic Distortion
- 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20kHz
(≤ 0.25% harmonic distortion at 1kHz)
-
- S/N below rated output
- 112dB
-
- Dynamic Headroom
- 1.2dB
-
- Damping Factor
- >18
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.25dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 70kHz
Control
-
- Remote Power Control
- Yes
-
- Multi-Channel DB25 Cable
- N/A
Connectivity
-
- Speaker Binding Post Type
- Patented Solid Cinch™ Speaker Binding Posts
General Specifications
-
- Circuit Configuration
- Unity Coupled
-
- Circuit Design
- Vacuum Tube
-
- Mono Bridge
- No
-
- Mono Parallel
- No
-
- Output Type
- Unity Coupled Output Transformer
-
- Meters
- No
-
- Meter Light Switch
- N/A
-
- Balanced Input
- 2
-
- Front Panel
- N/A
-
- Illumination
- Small Signal Tubes: Green, Blue, Natural
-
- Chassis Style
- Bead blasted black anodized aluminum with matte finish carbon fiber side panels
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 10-1/4" (26cm) (including feet) x 28" (71.1cm) (including front panel and cables)
-
- Unit Weight
- 125 lbs (56.7 kg)
-
- Shipping Weight
- 138 lbs (62.6 kg)
-
-
Downloads
Product Literature User Documents - MC2152 Power Amplifier Brochure (1.59 MB)
- MC2152 Power Amplifier Owner's Manual (8.08 MB)
- MC2152 Power Amplifier Connection Diagram (0.44 MB)
-
