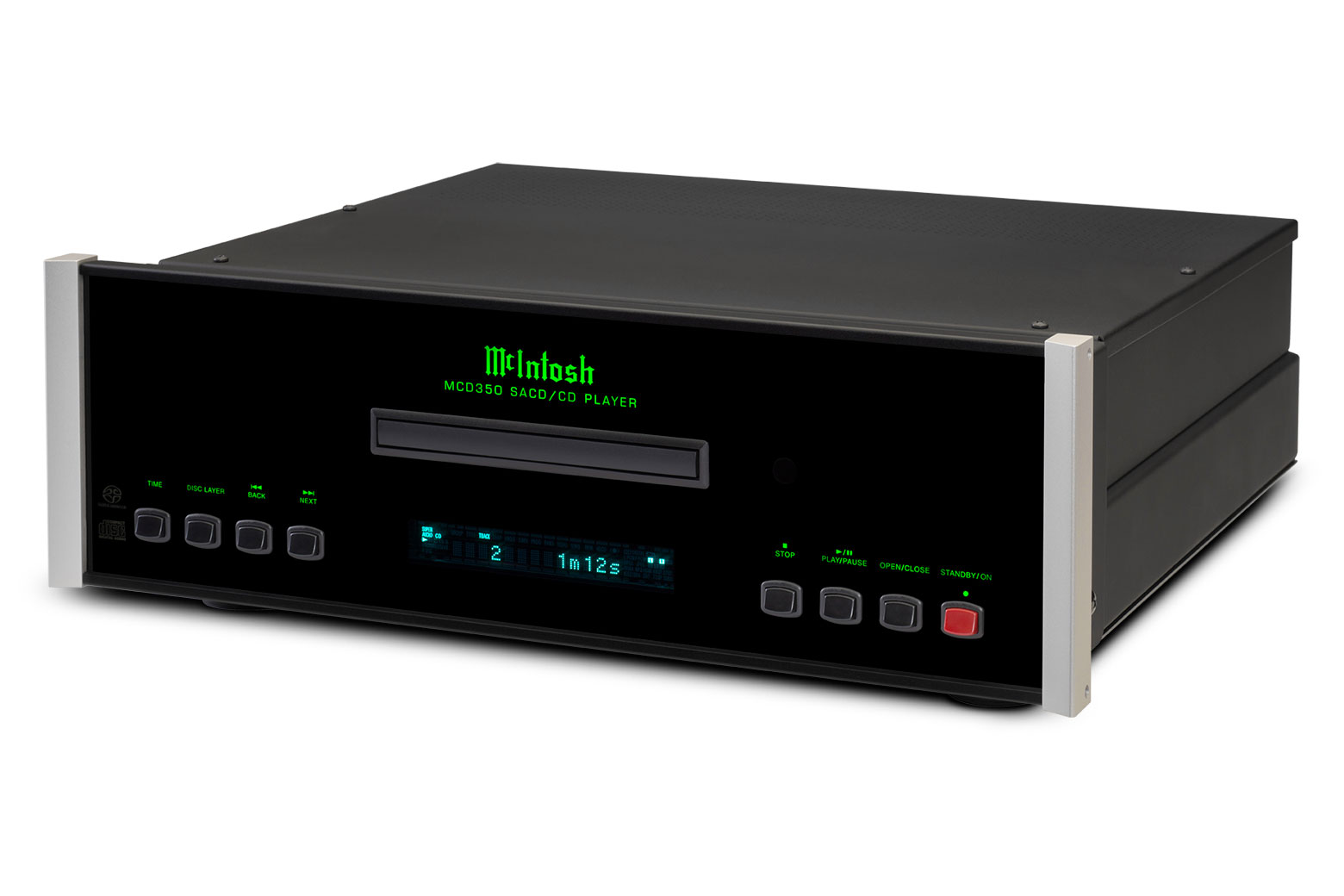

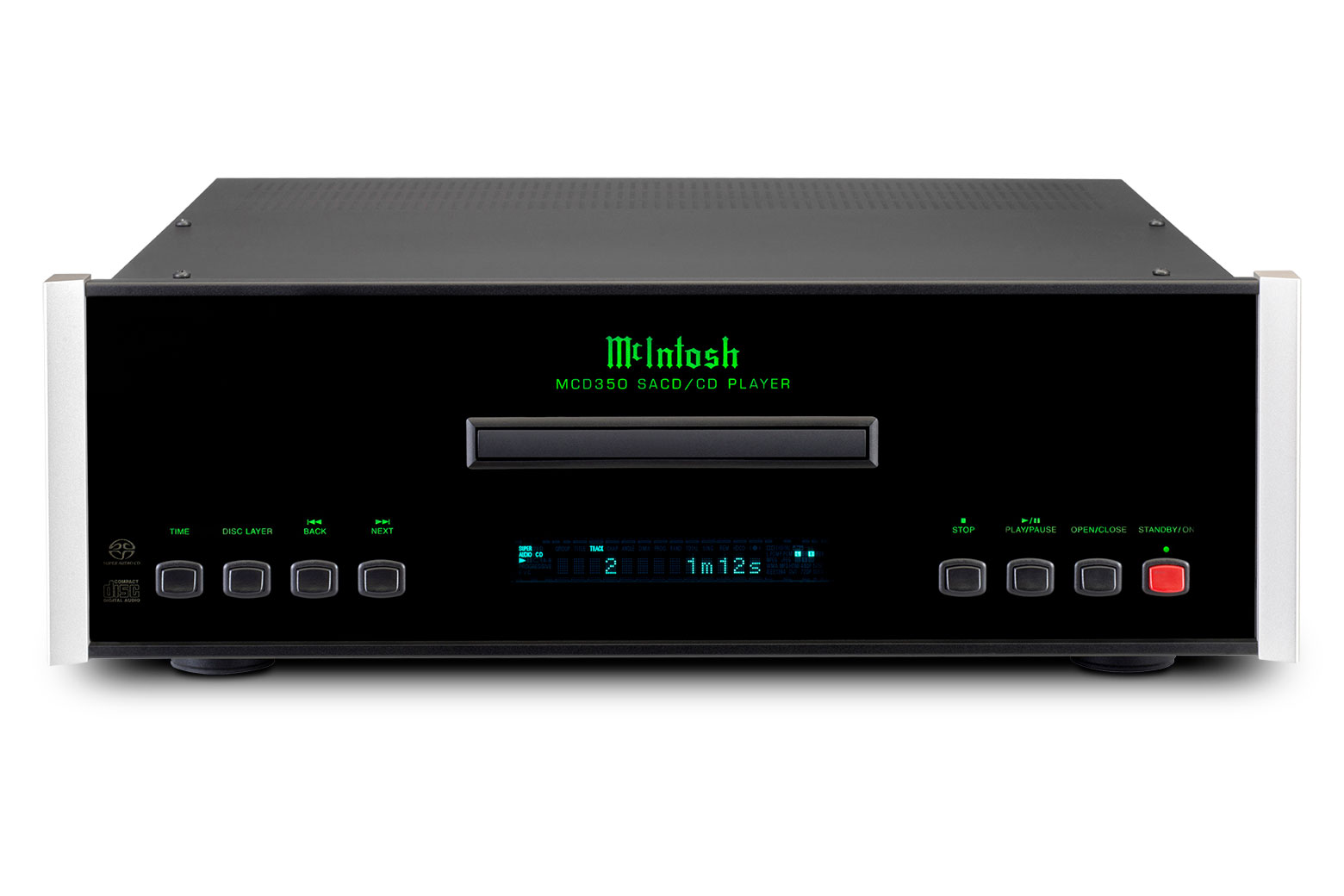

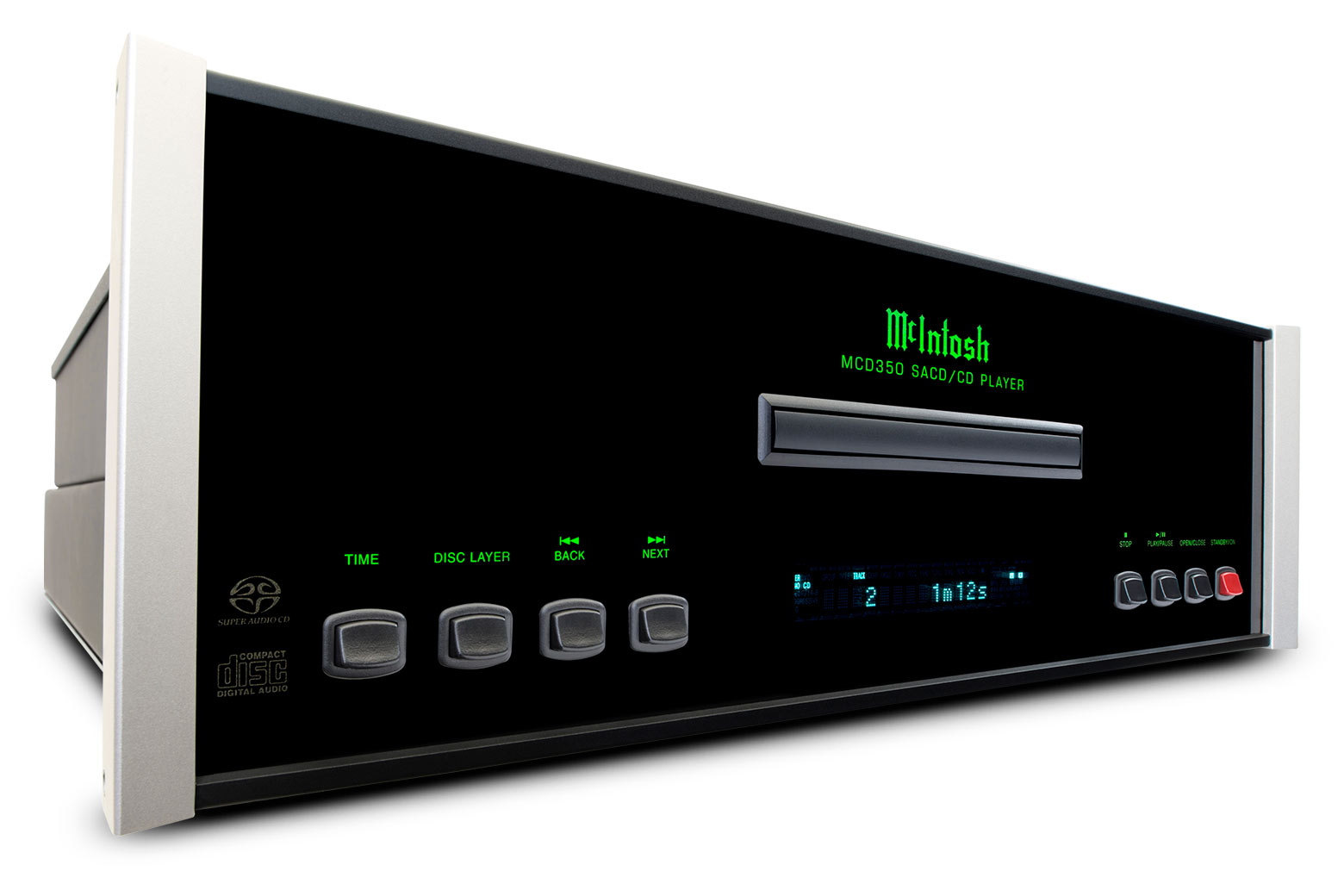

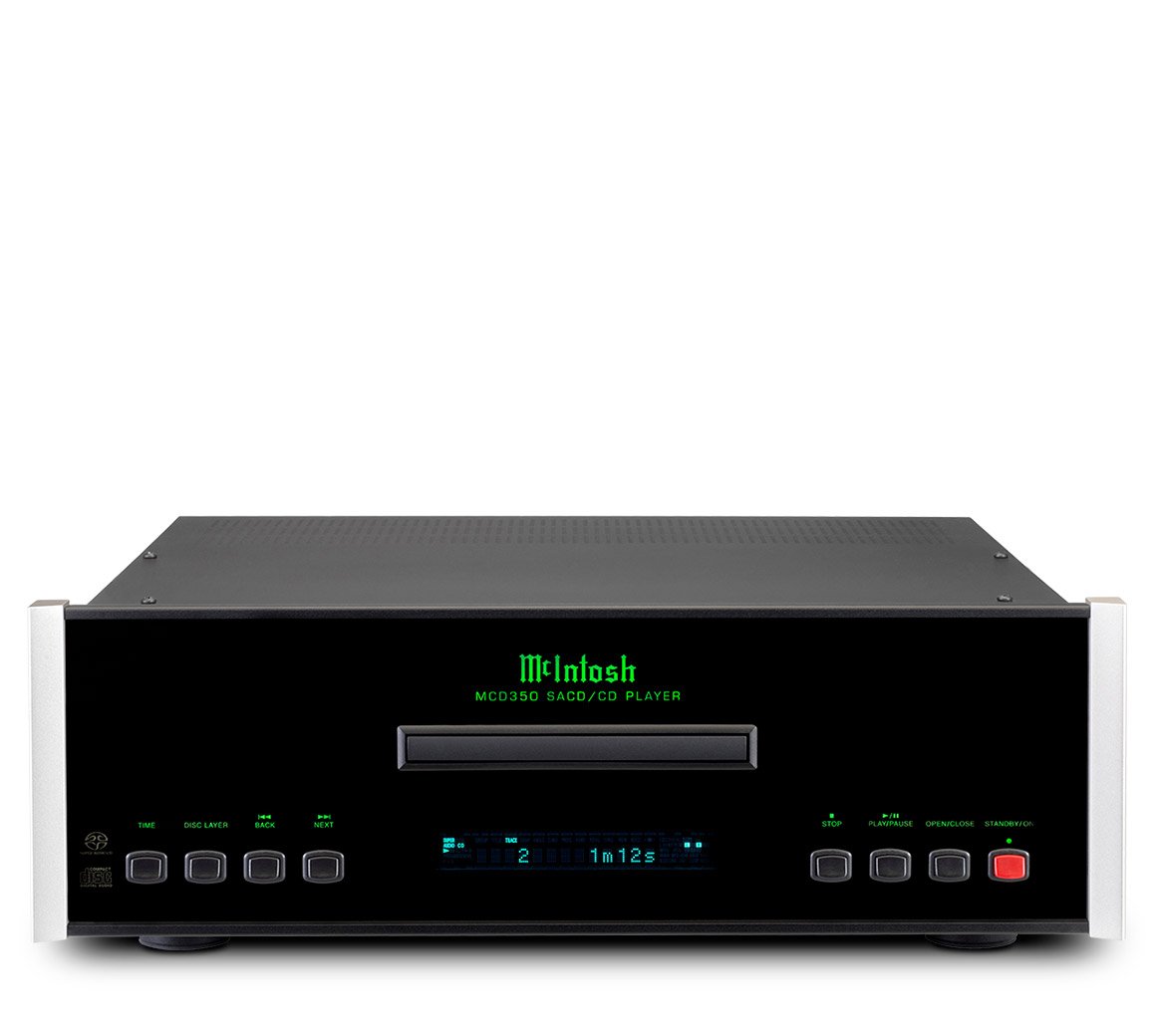

MCD350 2-Channel SACD/CD Player

Audio Specifications

• Number of Channels

  2

• Fixed Output Level

  2.0Vrms Unbalanced
  4.0Vrms Balanced

• Variable Output Level

  N/A

• Output Impedance

  600 ohms Unbalanced and Balanced

• Frequency Response

  4Hz to 40kHz, +0.5, -2dB (SACD)
  4Hz to 20kHz, ±0.5dB (CD)

• Signal To Noise Ratio

  Better than 108dB (A-weighted)

• Dynamic Range

  Better than 100dB

• Total Harmonic Distortion

  0.003% @ 1000Hz (SACD)
  0.002% @ 1000Hz (CD)

• Channel Separation

  Better than 98dB (1,000Hz)

• Headphone Output Impedance

  N/A

Digital Audio Specifications

• Digital-to-Analog Converter (DAC) Type

  2-channel, 32-bit/192kHz PCM/DSD

• Coaxial Sample Rate

  N/A

• Optical Sample Rate

  N/A

• USB Sample Rate

  N/A

• Digital Coaxial Input

  N/A

• Digital Optical Input

  N/A

• Digital Output Sample Rate

  Up to 24-bit/192kHz

• Digital Optical Output

  -15dbm to -21dbm

• Digital USB Input Type

  N/A

• Digital Coaxial Output

  0.5V p-p/75 ohms

• Digital XLR Output

  N/A

• Digital MCT Output

  N/A

• Digital Output Jitter

  N/A

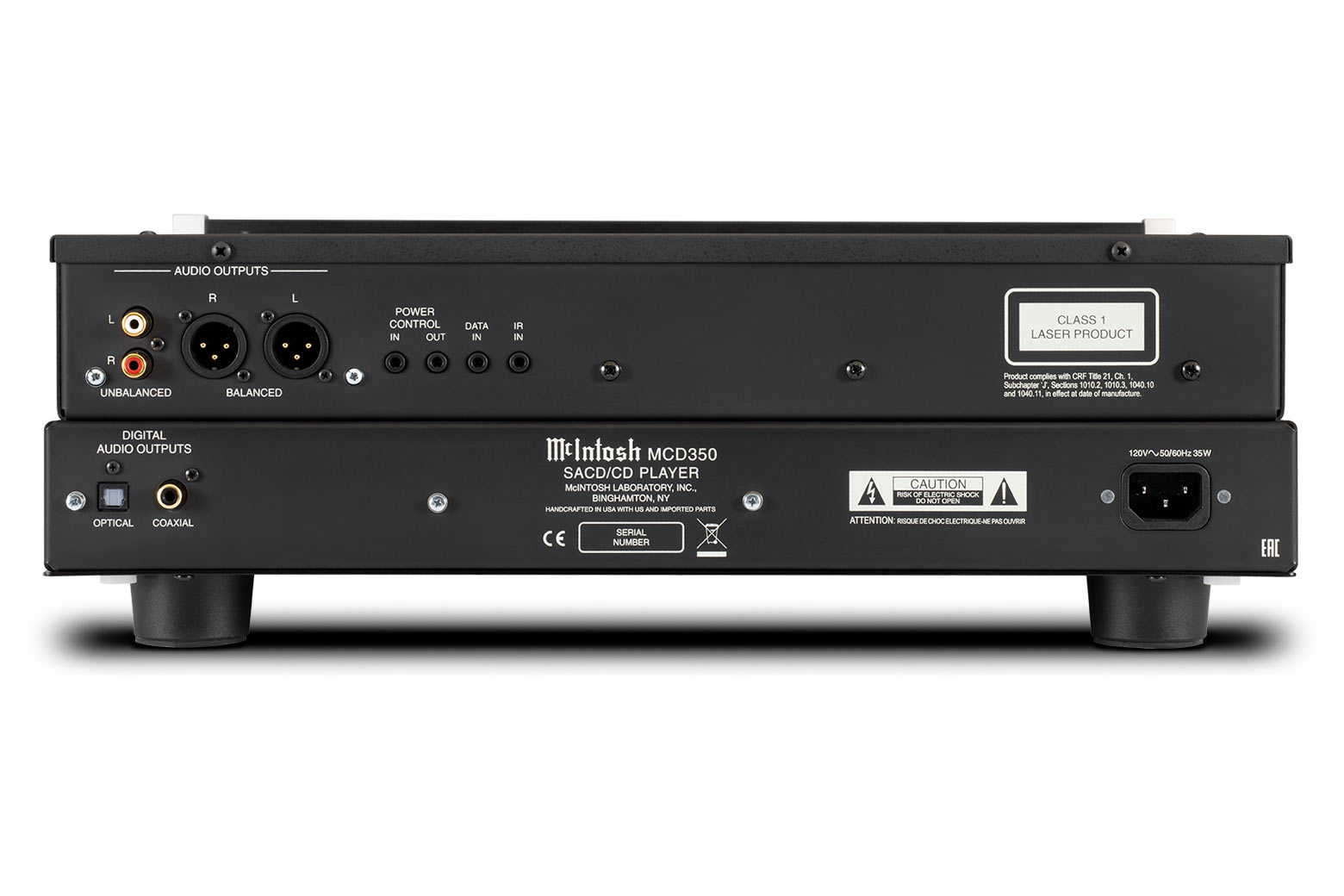

Connectivity

• Balanced Fixed Output

  1

• Unbalanced Fixed Output

  1

• Balanced Variable Output

  0

• Unbalanced Variable Output

  0

• Digital Coaxial Input

  0

• Digital MCT Input

  0

• Digital Optical Input

  0

• Digital USB Input

  0

• Digital USB Input Type

  N/A

• Digital Coaxial Output

  1

• Digital MCT Output

  0

• Digital Optical Output

  1

• Digital XLR Output

  0

• Headphone Output

  0

Control

• Power Control Input

  1

• Power Control Output

  1

• Rear Panel Data Input

  1

• Rear Panel IR Sensor Input

  1

• RS232 Control Input

  0

General Specifications

• Disc Formats

  CD, SACD, MP3 and WMA

• Disc Capacity

  1

• Laser Type

  Twin Beam

• Laser Beam Wavelength

  650nm (SACD)
  790nm (CD)

• Laser Power

  CLASS IIa/CLASS I

• Standby Power Requirement

  <0.5 watt

Weights & Dimensions

• Unit Dimensions (W x H x D)

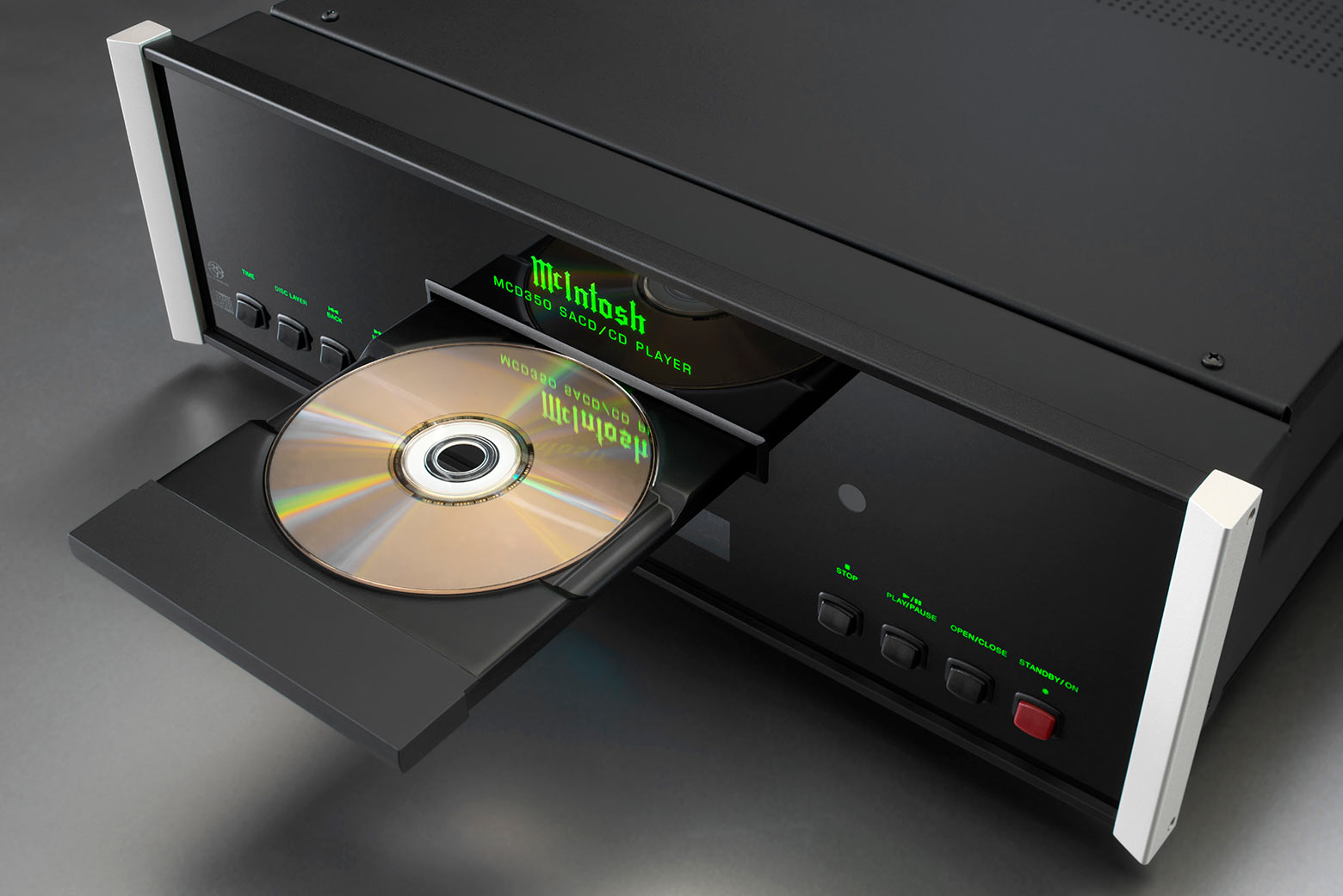

  17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).

• Unit Weight

  28 lbs (12.7 kg)

• Shipping Weight

  42.5 lbs (19.2 kg)
