Home / Custom Install / WS500 In-Wall Loudspeaker

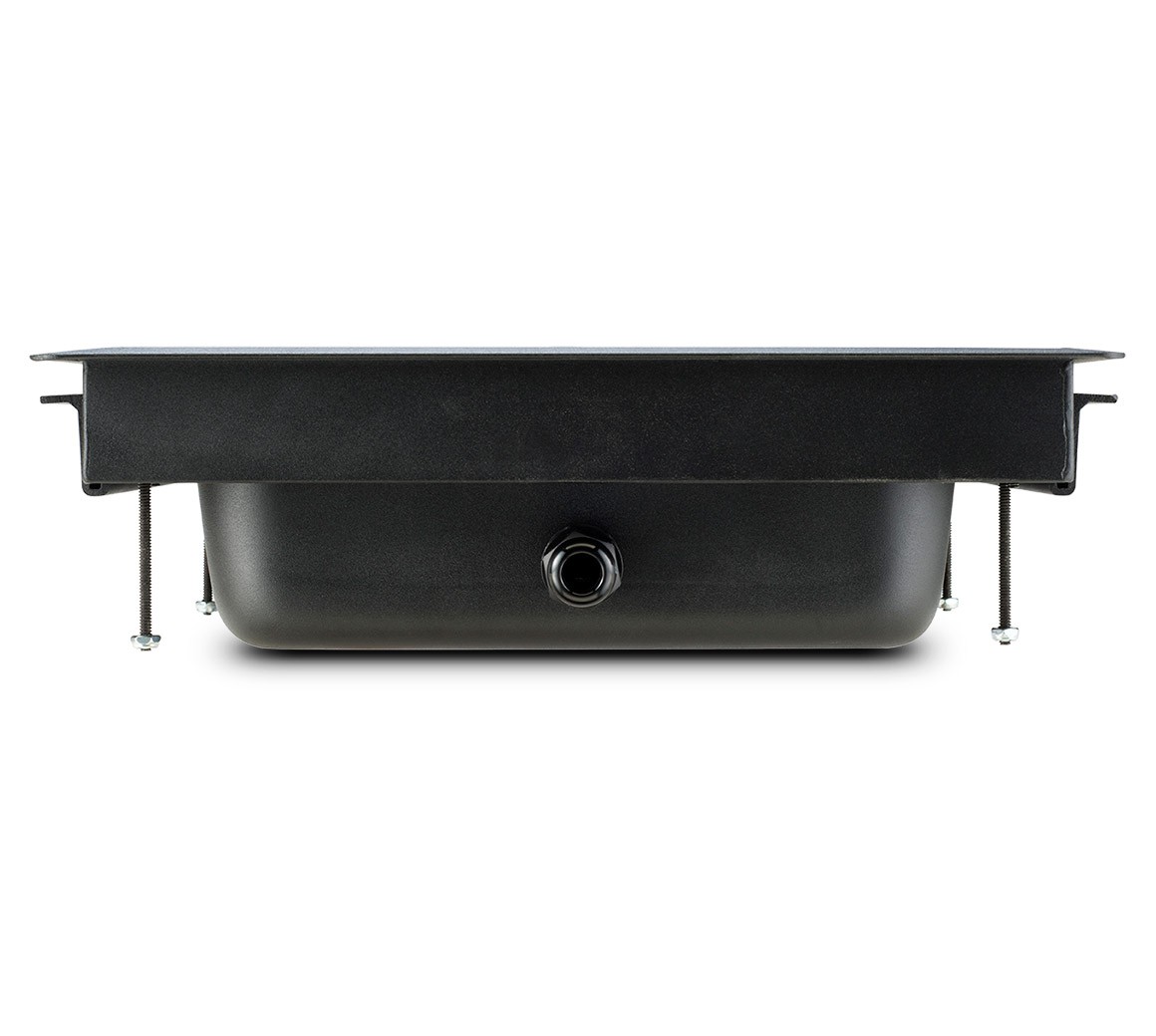

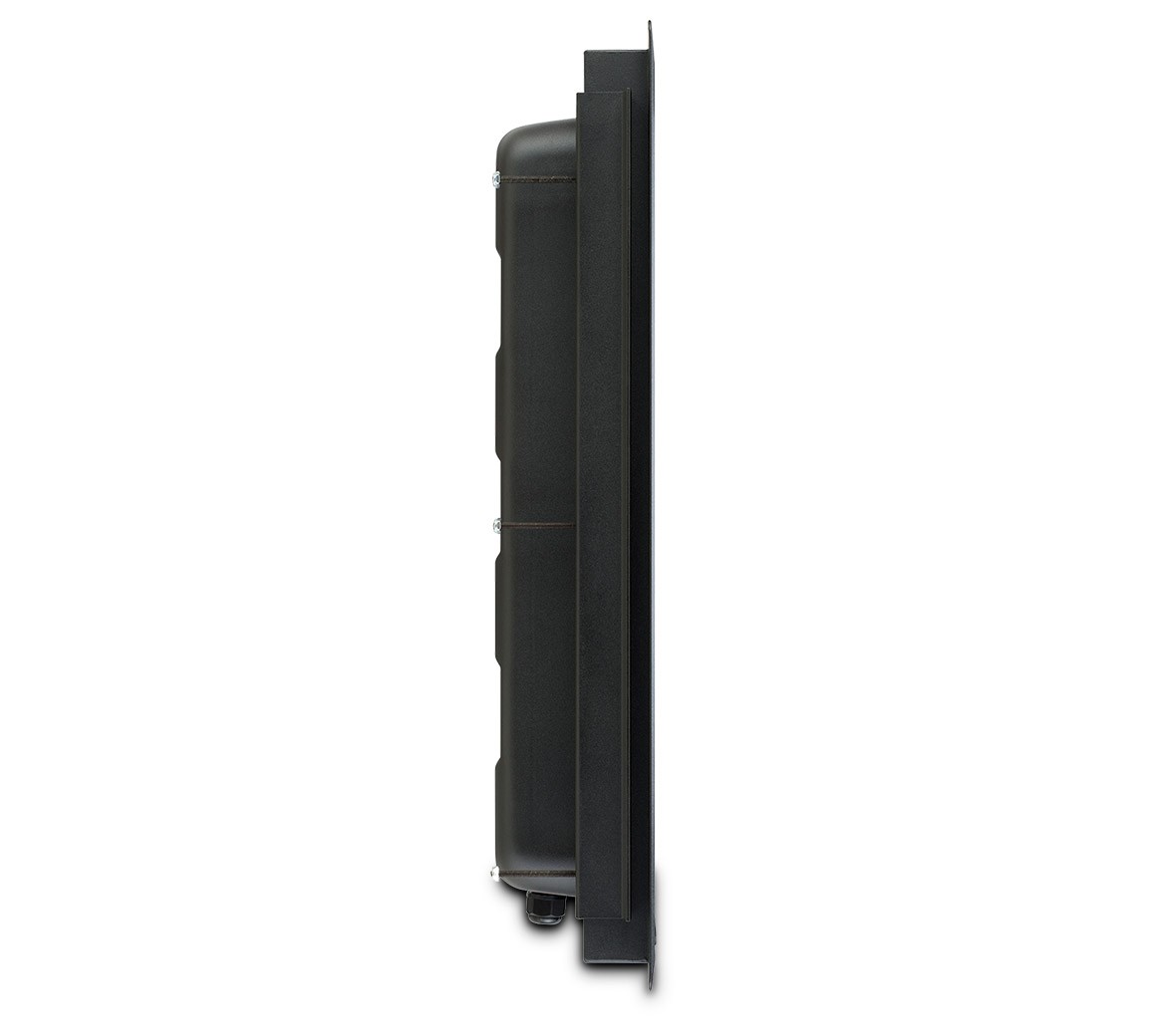

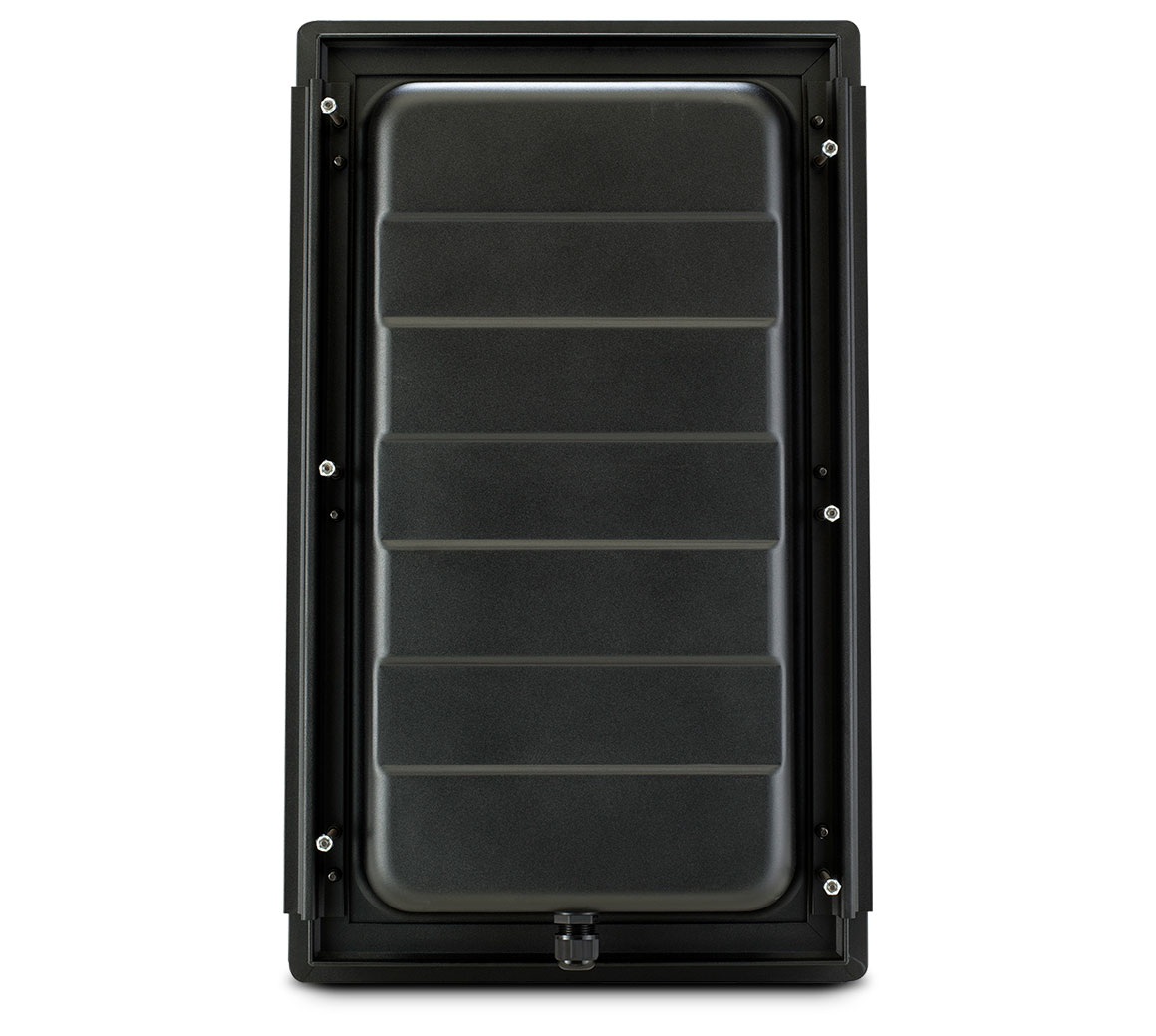

McIntosh WS500 In-Wall Speaker
McIntosh WS500 In-Wall Speaker
McIntosh WS500 In-Wall Speaker
McIntosh WS500 In-Wall Speaker
McIntosh WS500 In-Wall Speaker

WS500 In-Wall Loudspeaker

  • Fully enclosed speaker that fits in 2x4 walls
  • Perfect for distributed audio or home theaters
  • Up to 250 Watt Power Rating
Eligible for online purchase?
5 Year Limited Warranty
Add to WishlistRemove From Wishlist
Print this page
COMPARE
Ask an Expert
Share

WS500 In-Wall Loudspeaker

5 Year Limited Warranty
Print this page
COMPARE
Ask an Expert
Share
Add to WishlistRemove From Wishlist
BUY ONLINE

The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers

The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

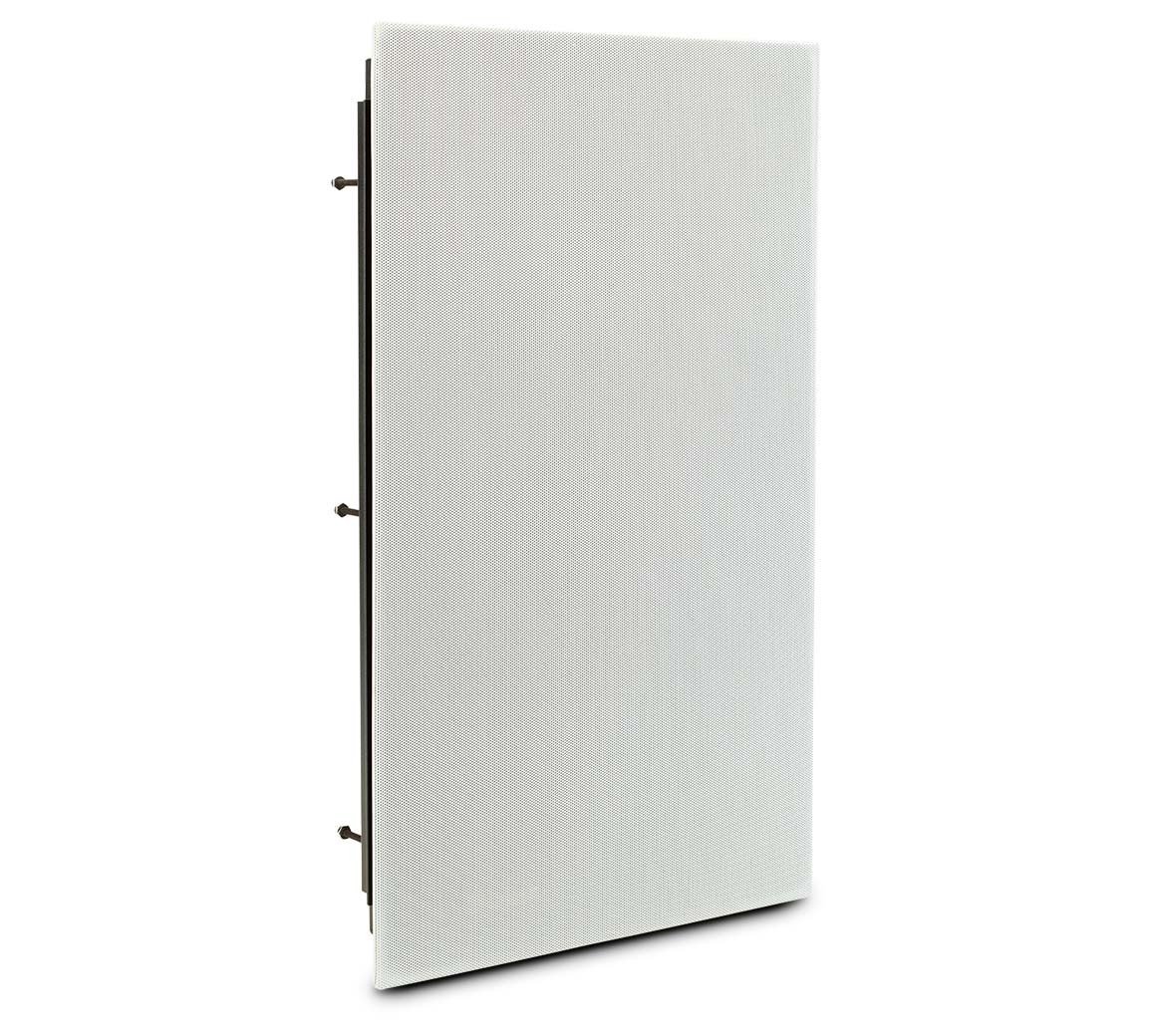

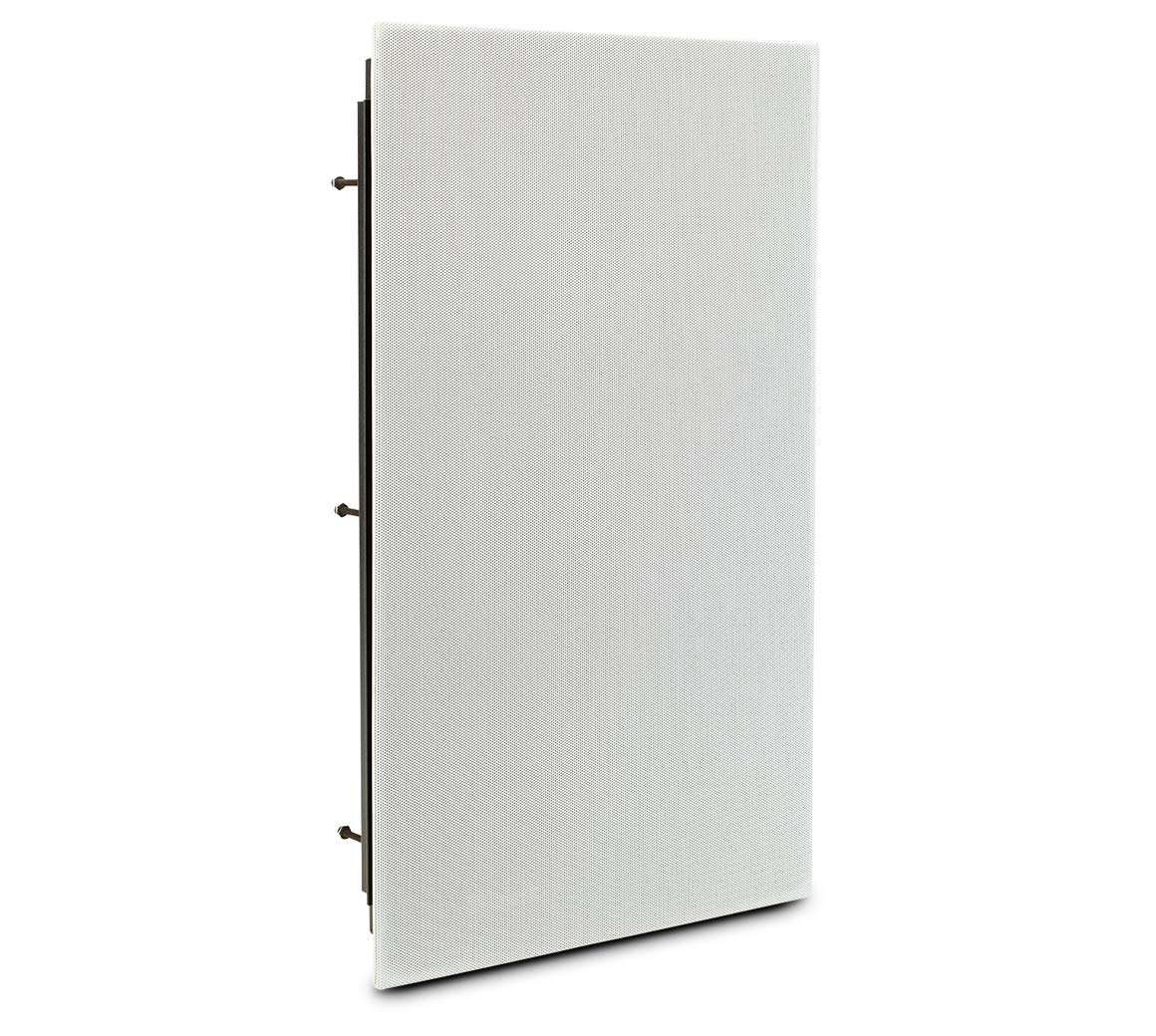

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed. Contact your local dealer to learn more.

  • Specifications

    Electronic Specifications

    • Impedance Nominal
      4 Ohms
    • Power Rating
      Up to 250 Watts
    • Frequency Response
      80Hz to 20kHz
    • Sound Pressure Level, 2.8V/1m
      86dB
    • Crossover
      350Hz, 2,500Hz

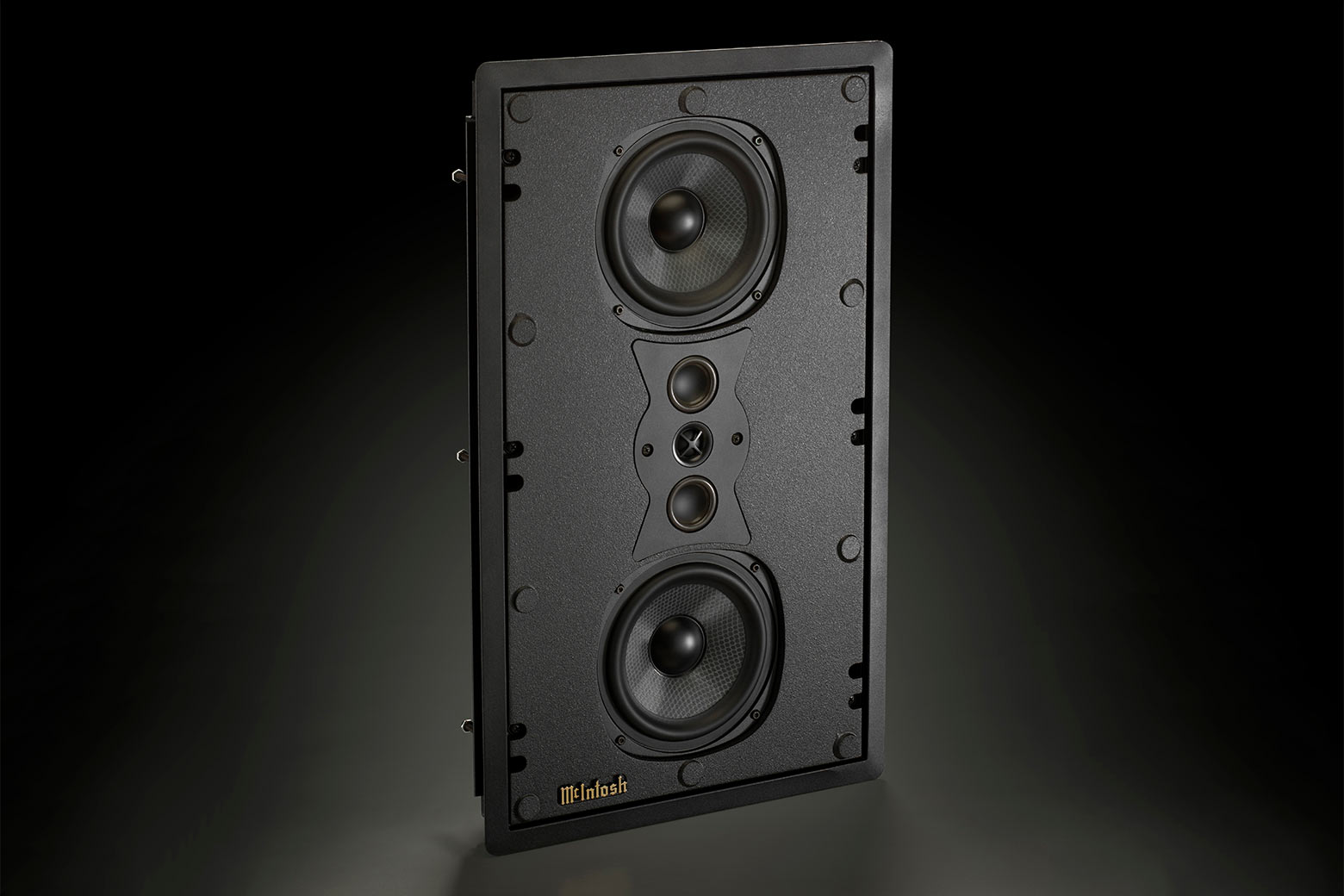

    Driver Specifications

    • Number of Woofers
      2
    • Woofer Size
      6.5"
    • Woofer Type
      Woven Glass Fiber
    • Number of Midranges
      2
    • Midrange Size
      2"
    • Midrange Type
      Inverted Titanium Dome
    • Number of Tweeters
      1
    • Tweeter Size
      3/4"
    • Tweeter Type
      Titanium Dome

    General Specifications

    • System Type
      3-Way In-Wall
    • Grille
      Magnetic metal mesh
    • Available Finishes
      Black chassis with white paintable grille

    Weights & Dimensions

    • Unit Dimensions (W x H x D)
      14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
    • Unit Weight
      24 lbs (10.9 kg)
    • Shipping Weight
      29 lbs (14.1 kg)
  • Downloads

    Product Literature User Documents
    • WS500 and WS300 In-Wall Loudspeaker Brochure (1.6 MB)
    • WS500 In-Wall Loudspeaker Installation Guide (4.68 MB)
    • RK500 Rough-In Kit Installation Guide (for use with WS500 In-Wall Loudspeaker) (0.5 MB)
