MA8900

2-Channel Integrated Amplifier

3 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

FIND A DEALER

2017 Best Stereo
Integrated Amplifier
Winner of Diapason d'Or
2017 Hi-Fi Award

Bring all your music to life with the MA8900 Integrated Amplifier. It offers 200 Watts per channel and combines many new features with our legendary amplification prowess and preamplifier capabilities into one all-encompassing unit.

"The McIntosh MA8900 Integrated Amplifier is everything an audiophile might desire, both sonically and in durability... The sound is dynamic without being harsh, controlled without being lifeless, detailed without becoming shrill, and absolutely realistic... [it] can help you make the best of your music, your speakers, and your room." - SECRETS of Home Theater and High Fidelity

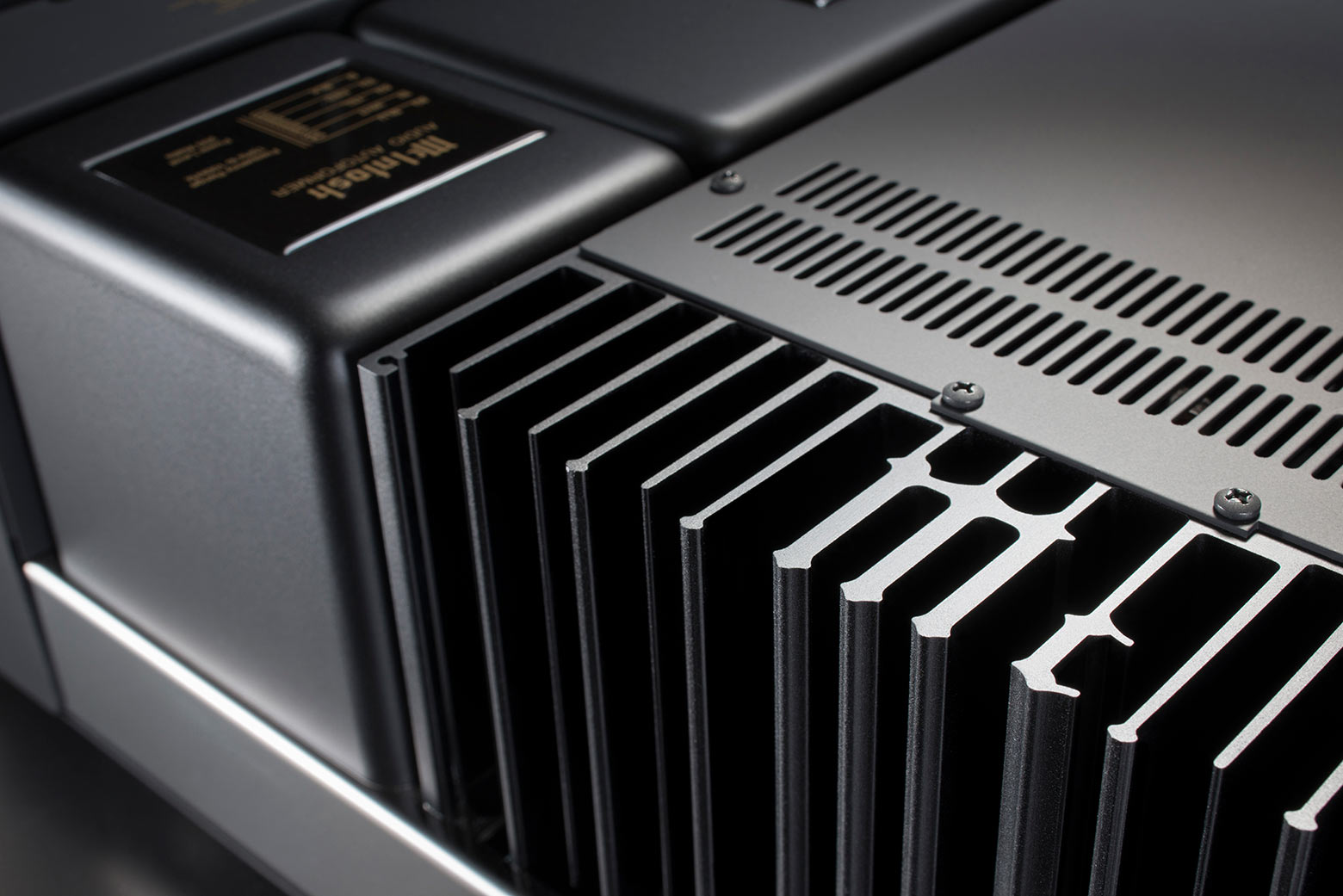

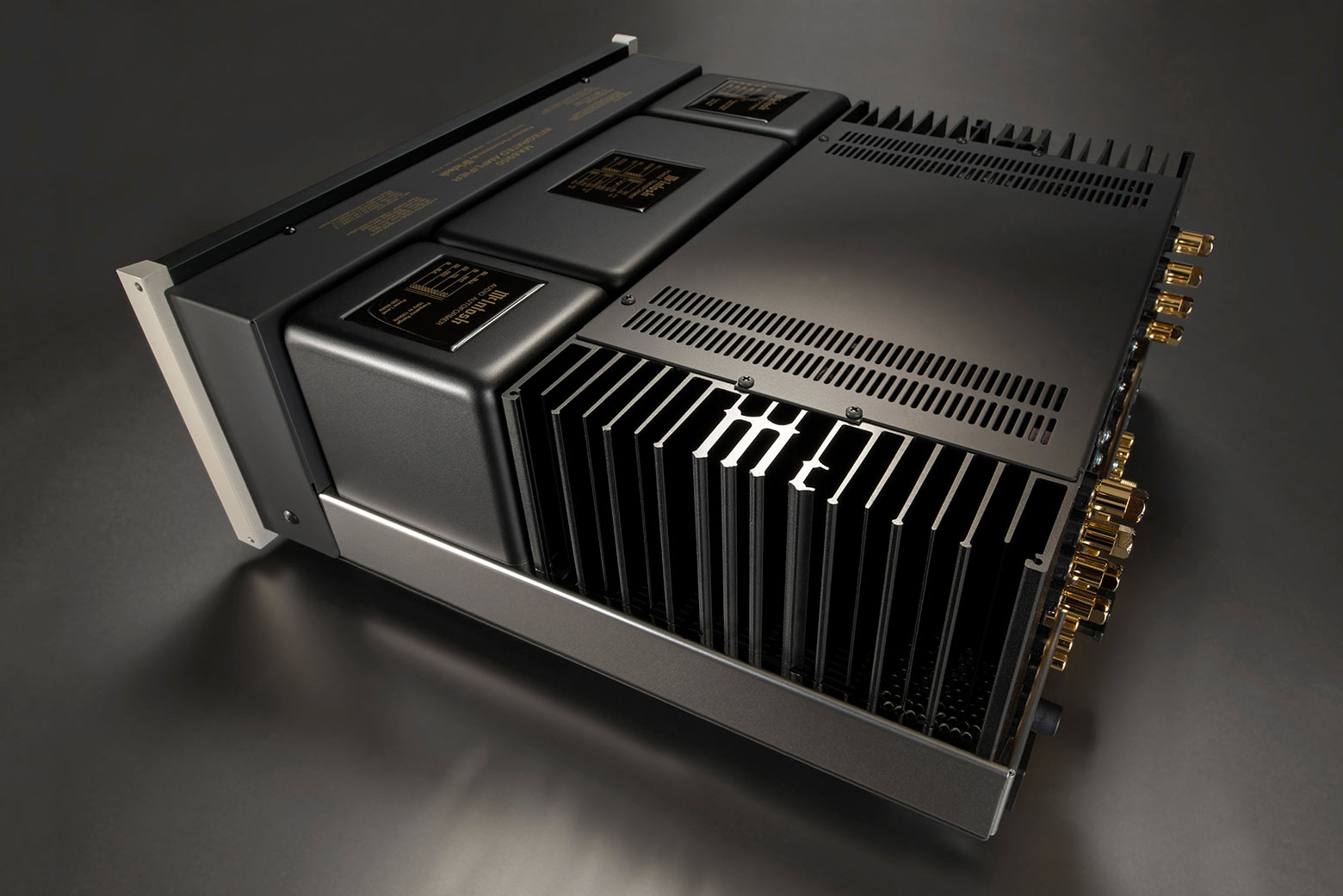

The MA8900 is the first product to feature our new McIntosh Monogrammed Heatsinks™. They are made from high quality materials with excellent thermal conductivity properties and are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. Besides helping your MA8900 run cool, they’ll also help it look cool thanks to our new finishing process that results in a higher quality appearance. They are connected to advanced high current output transistors that eliminate thermal equilibrium lag time (or warm-up time) so that the first musical note played sounds just as good as songs played later in your listening session.

"The sound character of the McIntosh MA8900 is beautifully balanced and detailed, and I have to admit that I am very much in love." Awarded 5 Stars. - Stereo+

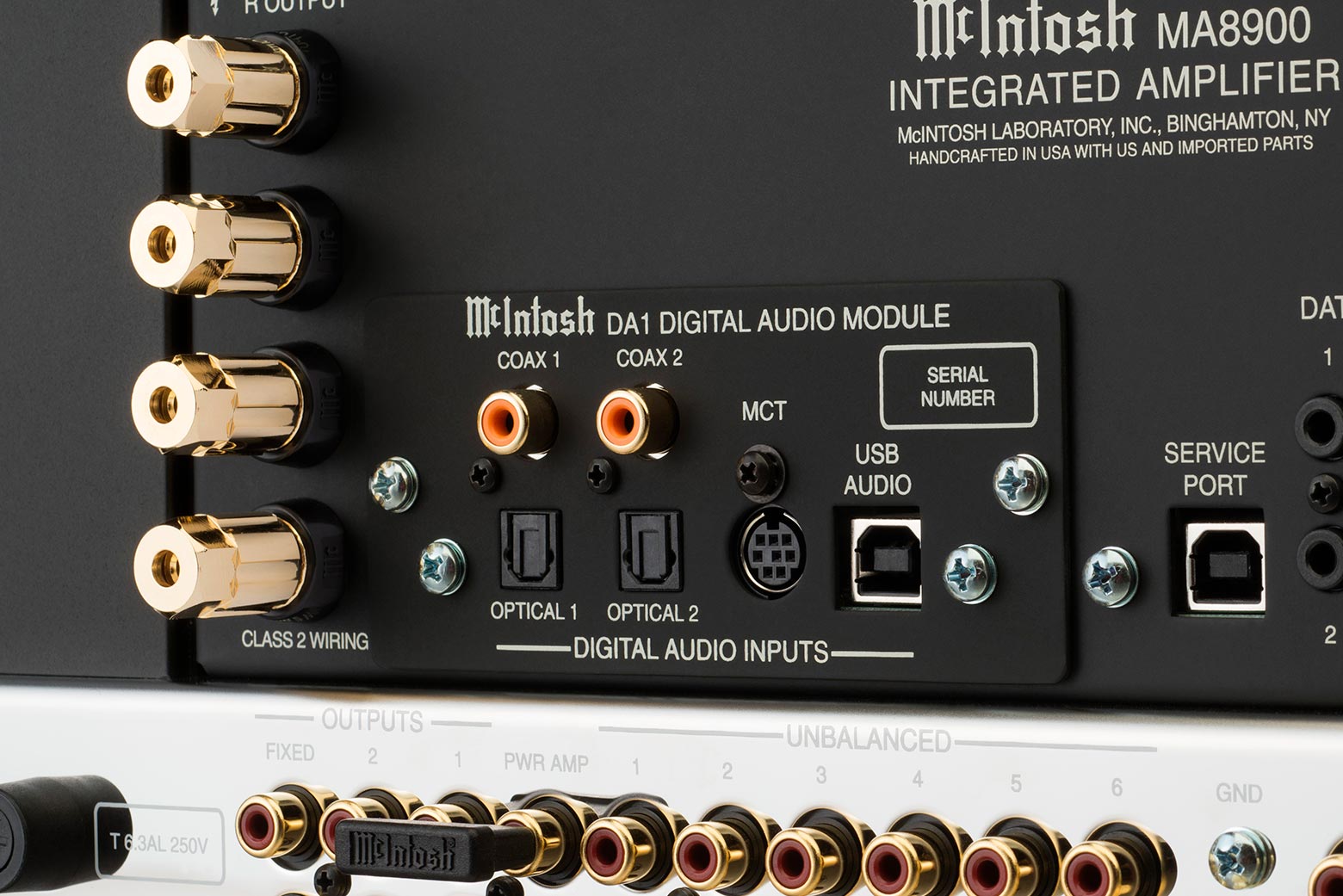

To keep up with the ever-changing world of digital audio, all the digital inputs are housed in our new DA1 Digital Audio Module. The DA1 Digital Audio Module can be replaced by future modules to easily keep your MA8900 current with all the latest digital audio formats and technologies. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an upgraded 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode; it has 6 digital inputs consisting of 2 coax, 2 optical, 1 USB and 1 MCT for use with our MCT500 SACD/CD Transport. The coax and optical inputs will decode music up to 24-bit/192kHz for high resolution audio playback; the USB input accepts even higher PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz. Analog stereo inputs include 1 balanced and 6 unbalanced plus 1 each of Moving Coil and Moving Magnet for turntable connectivity. All inputs can be given custom names for user-friendly system control and configuration. Unlike our previous integrated amplifiers, every input now functions independently of each other and all are always available for use regardless of how you connect your sources.

With "a fluid sound" that's "without hardness," the MA8900 can "cope with the most difficult speakers." Unlike many solid state amplifiers, the MA8900 "creates no tiredness" of listening and does so "without sacrificing the speed or sharpness sometimes necessary" for certain types of music while at the same time it can do "justice to the volume of a symphonic orchestra" and exhibit "extreme refinement when the music requires it." Awarded d'Or 2017 Hi-Fi Award - Diapason

Besides new heatsinks and advanced digital audio capabilities, the MA8900 includes many other updates. Our engineers have used new, more powerful control microprocessors to improve overall system operation. They have also incorporated some of the latest audio-grade circuit components to allow the MA8900 to deliver the best sound possible.

"The MA8900 doesn’t sound good - it sounds marvelous, on all types of music. It engenders a sense of pride of ownership, has Cadillac build quality, [and] intelligent user features." - StereoNET

At 200 Watts per channel, the MA8900 has enough power to properly drive virtually all loudspeakers. And the renowned McIntosh Autoformer™ guarantees your speakers will always receive the full 200 Watts regardless if they have 2, 4 or 8 Ohm impedance. Other McIntosh features included in the MA8900 are:

Power Guard^® that monitors and adjusts the sound wave at the speed of light to prevent harsh sounding distortion and clipping that could damage your speakers
Sentry Monitor™ is our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
Home Theater PassThru that allows for seamless integration into a home theater system
High Drive headphone amplifier with Headphone Crossfeed Director (HXD^®) which can bring an added dimension to headphone listening
A discrete, five-band tone control that permits manual analog adjustment of your favorite recordings
Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown
Gold-plated speaker binding posts that prevent corrosion to ensure a quality signal is sent over your speaker cables to your speakers

The MA8900 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

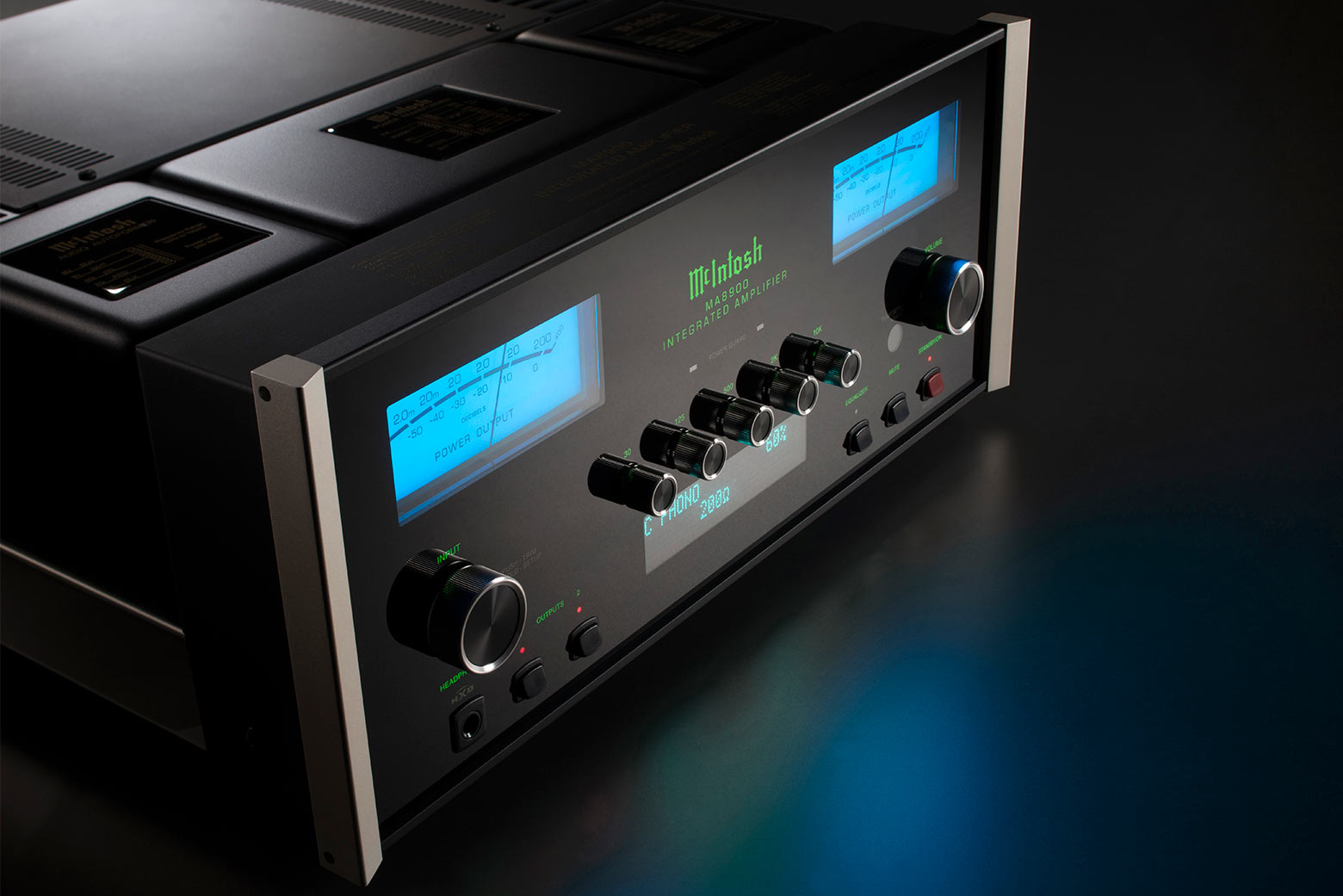

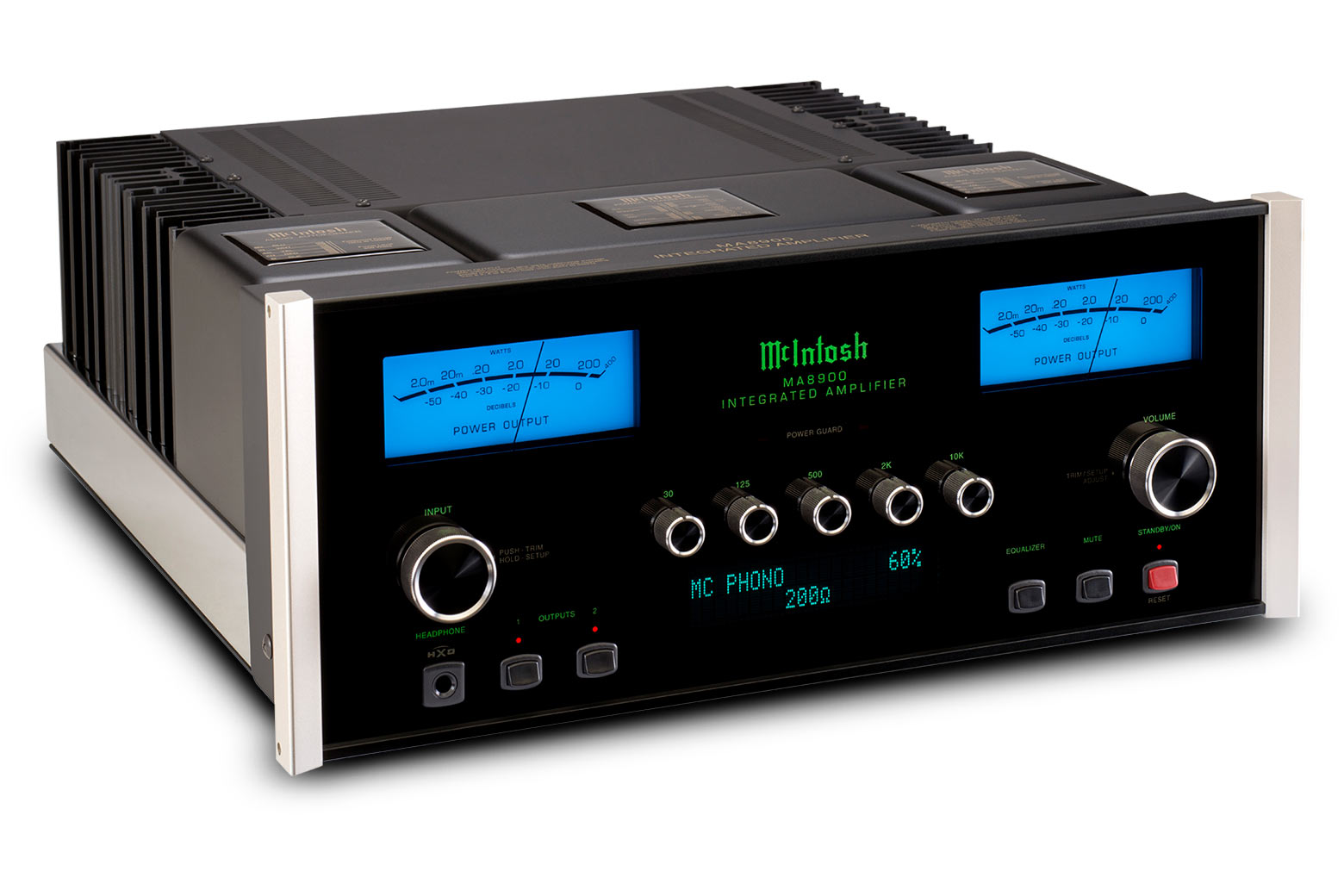

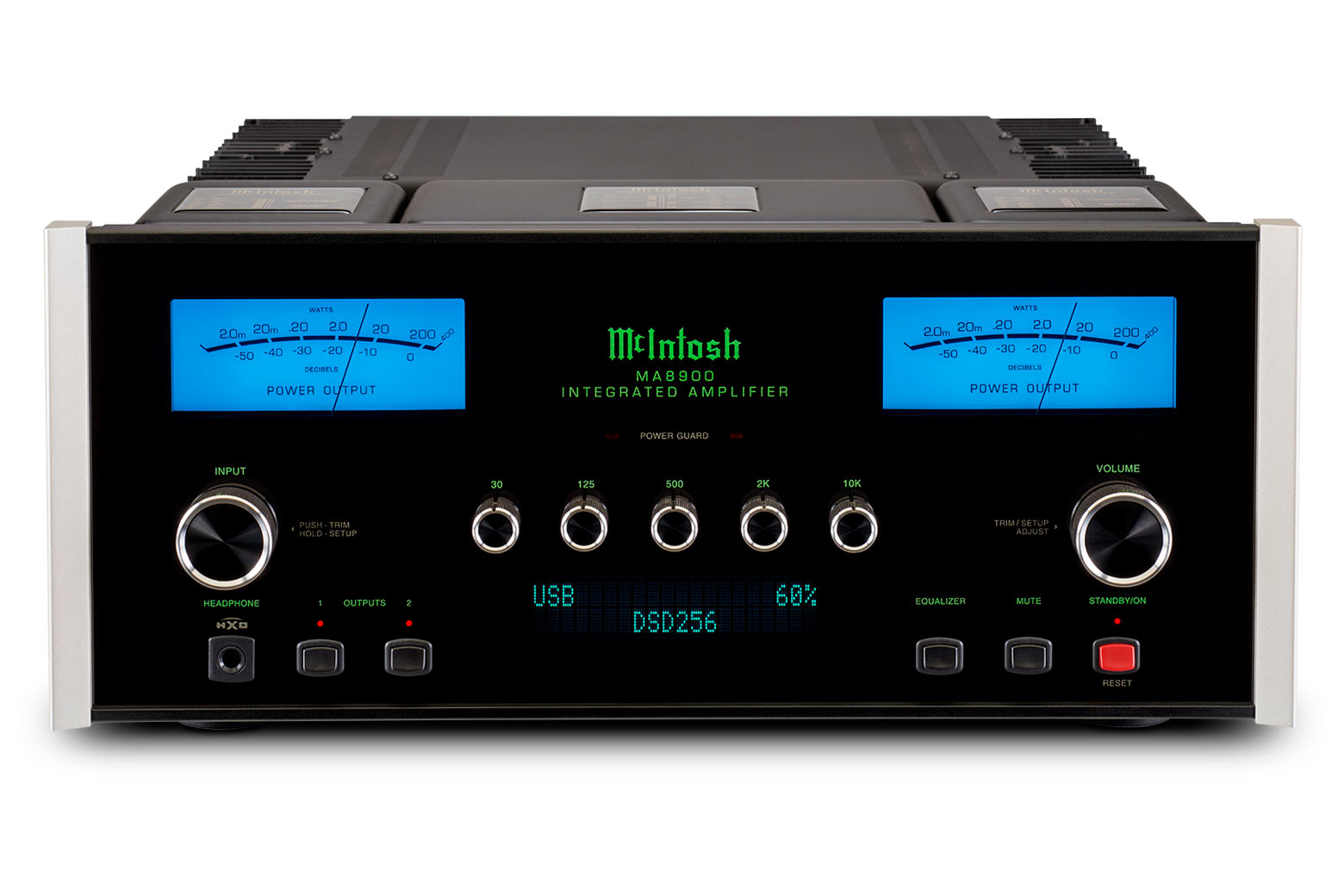

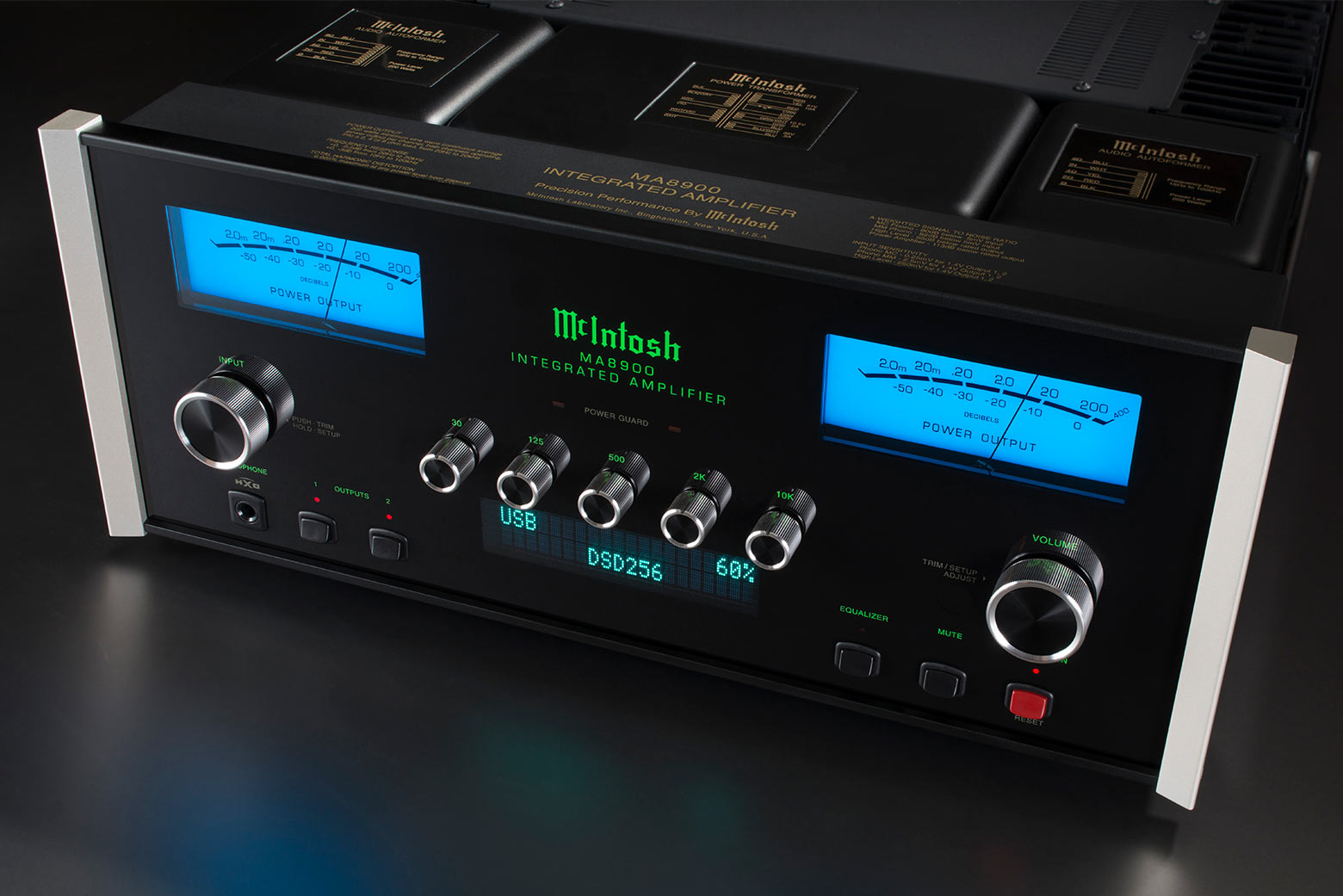

The entire unit is wrapped in the timeless McIntosh aesthetic with blue watt meters, a black glass front panel, control knobs, illuminated logo, aluminum end caps and a beautiful polished stainless steel chassis. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Power Output per Channel

  200 Watts
- Number of Channels

  2
- Speaker Impedance

  2, 4, or 8 Ohms
- Rated Power Band

  20Hz to 20kHz
- Total Harmonic Distortion

  0.005%
- Dynamic Headroom

  2dB
- Frequency Response +0,-0.5dB

  20Hz to 20kHz
- Frequency Response, +0, -3dB

  10Hz to 100kHz
- Sensitivity Phono (Moving Coil)

  0.25mV
- Sensitivity Phono (Moving Magnet)

  2.5mV
- Sensitivity High Level (Balanced / Unbalanced)

  0.5V/0.25V
- Sensitivity (Power Amp input)

  1.4V
- Signal To Noise Ratio (Moving Coil)

  80dB
- Signal To Noise Ratio (Moving Magnet)

  82dB
- Signal To Noise Ratio (High Level)

  95dB
- Signal To Noise Ratio (Power Amp input)

  113dB
- Input Impedance (Balanced / Unbalanced)

  20K/20K
- Damping Factor

  >40
- Maximum Output (Balanced / Unbalanced)

  8V Unbalanced

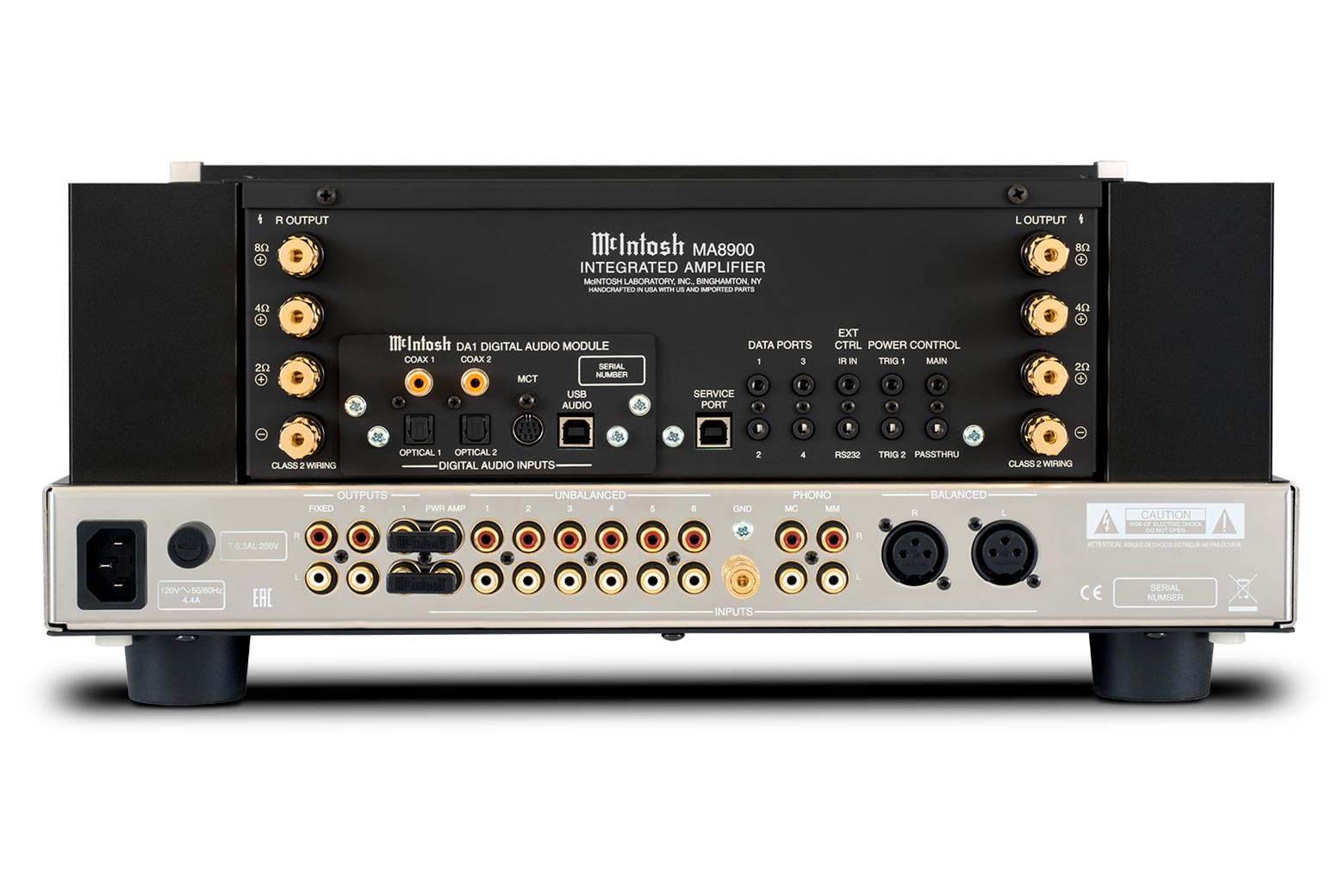

Connectivity
- Balanced Input

  1
- Unbalanced Input

  6
- Phono Input Moving Coil

  1 (adjustable loading)
- Phono Input Moving Magnet

  1 (fixed loading)
- Upgradeable Digital Audio Module

  Yes: DA1
- Digital Coaxial Input

  2
- Digital Optical Input

  2
- Digital MCT (DIN) Input

  1
- Digital USB Input

  1
- HDMI (ARC) Input

  0
- Balanced Variable Output

  0
- Unbalanced Fixed Output

  1
- Unbalanced Variable Output

  2
- Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD^®)
- Subwoofer Output

  0
- AM/FM Tuner option

  No
- Home Theater PassThru

  Yes
- Unbalanced Analog Connector Type

  Standard
- Speaker Binding Post Type

  Standard
- Service Port

  1
Digital Audio Specifications
- Digital-to-Analog Converter (DAC) Type

  8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
- Digital Coaxial Input Sample Rate

  24-bit/44.1kHz to192kHz
- Digital Optical Input Sample Rate

  24-bit/44.1kHz to192kHz
- Digital MCT (DIN) Input Sample Rate

  16-bit/44.1kHz (CD)
  DSD64 (SACD)
- Digital USB Input Sample Rate

  32-bit/44.1kHz to 384kHz (PCM)
  DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Control
- Tone Controls

  5-Band
- Tone Bypass and Input Assign

  Yes
- RS232 Control Input

  Yes
- Power Control Output

  1 Main, 2 Trigger
- Rear Panel Data Port

  4
- Rear Panel IR Sensor Input

  Yes
- Input Level Match

  Yes
General Specifications
- Vacuum Tube or Solid State

  Solid State
- Output Type

  Autoformer™
- Output Meters

  Yes
- Dual Layer Chassis

  Yes
- Chassis Finish

  Polished stainless steel & black painted steel
- McIntosh Monogrammed Heatsinks™

  Yes
- Power Requirement

  120V 50/60Hz, 4.4 amps
- Standby Power Requirement

  <0.25 Watts
Weights & Dimensions
- Dimensions (W x H x D)

  17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm)
- Weight

  75 lbs (34.1 kg)
- Shipping Weight

  93 lbs (42.3 kg)

Downloads

Product Literature	User Documents	Software Updates
MA8900 Integrated Amplifier Brochure (1.47 MB)	MA8900 Integrated Amplifier Owner's Manual (6.86 MB) MA8900 Integrated Amplifier Connection Diagram (1.29 MB) MA8900 Integrated Amplifier Rear Panel Connections (0.49 MB) MA8900 Integrated Amplifier Input Assignment Chart (0.13 MB) Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)	For units with DA1 Digital Audio Module: McIntosh USB Audio Windows Driver D v2.0 (compatible with Windows 7, 8, 8.1 and 10) (If v1.0 of driver is installed, it must be uninstalled before installing v2.0.) (4.53 MB) For units with DA2 Digital Audio Module: McIntosh USB Audio Windows Driver I v1.3 (compatible with Windows 7, 8, 8.1 and 10) (2.1 MB)
