The MA9000 Integrated Amplifier can help you achieve audio perfection. Our largest integrated in both size and power, it offers 300 Watts per channel and combines our amplifier and preamplifier expertise into one comprehensive unit.
The "MA9000 is one of the most complete audio products I've reviewed." When factoring in build quality and finish, "the result is the most easily recommendable product I've reviewed in years." Named 2018 Integrated Amplifier Product of the Year. - SoundStage! Network

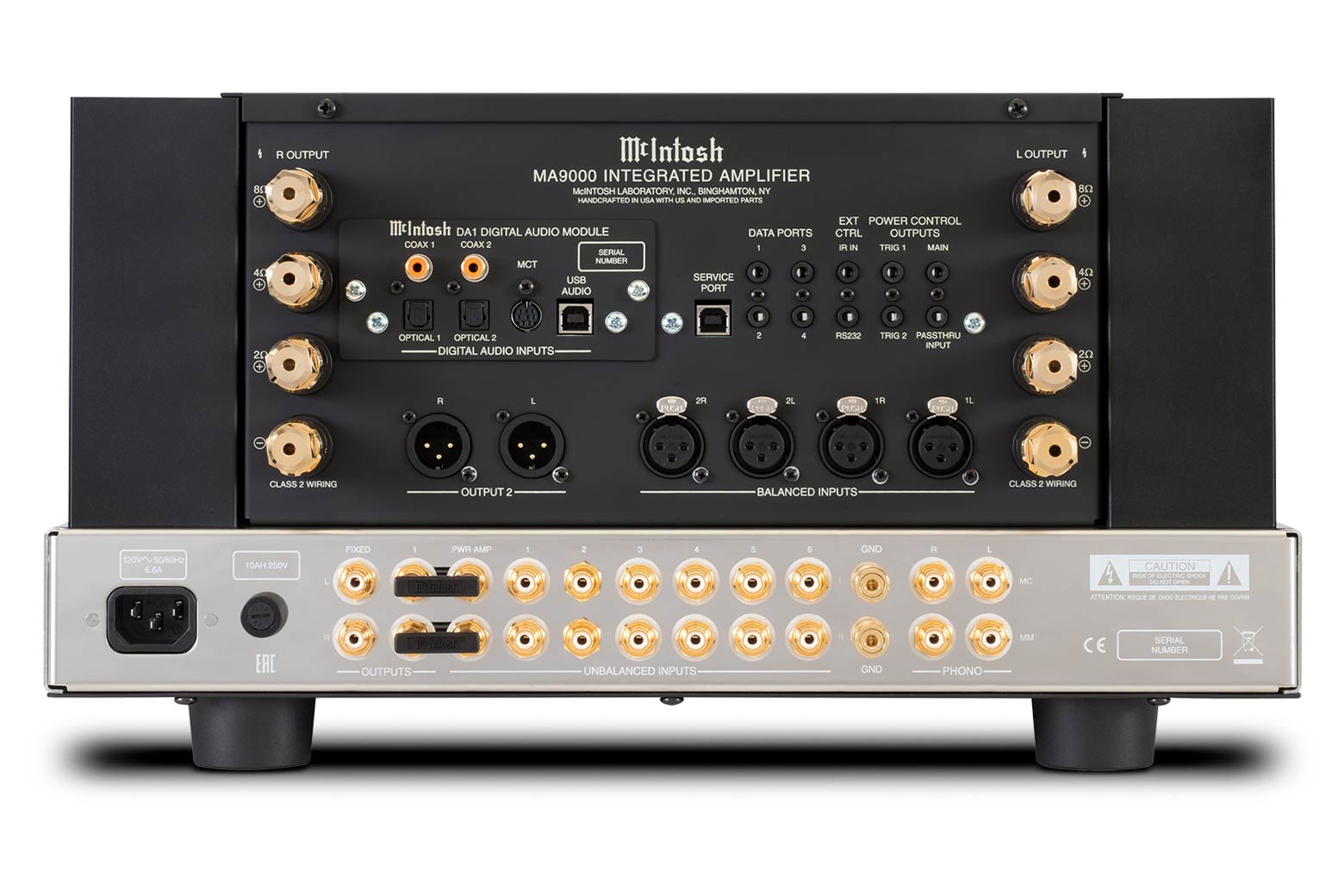

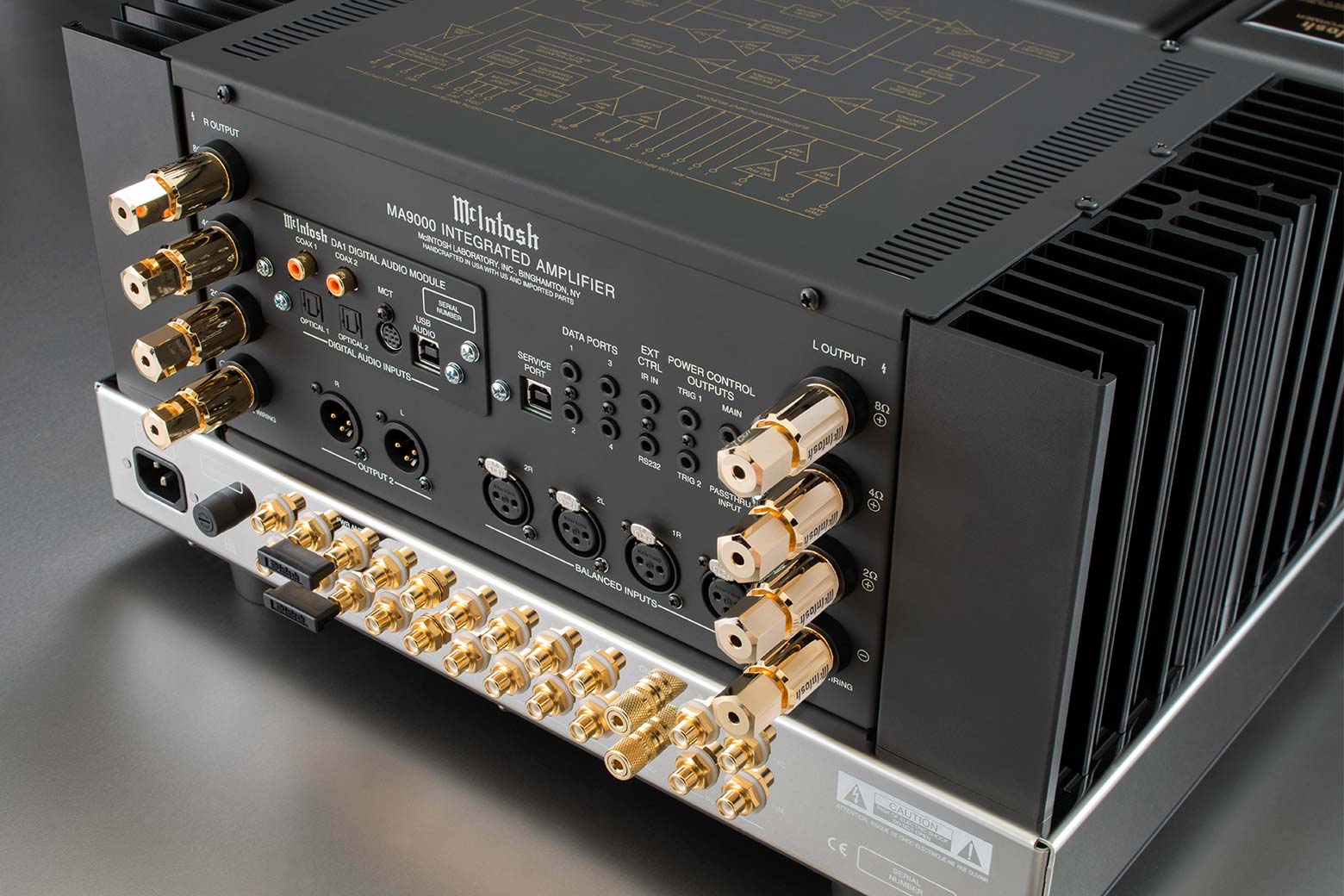

There are enough inputs and outputs on the MA9000 to last a lifetime. The 10 analog connections are comprised of 2 balanced and 6 unbalanced inputs plus 1 Moving Coil and 1 Moving Magnet for turntable connectivity. Both phono inputs feature adjustable loading for fine tuning of vinyl playback. All unbalanced analog connectors are made from premium gold-plated solid brass for superior signal handling and grounding.
"The large open sound feels right every time we sink into a sofa and turn up the volume. The natural sound gives us goose bumps." The Highly Recommended "MA9000 is one of the three best amplifiers" we've tested, and it "may be the last amplifier you ever need to buy." - Lyd & Bilde
On the digital side, 2 coax, 2 optical, 1 USB and 1 MCT input (for use with our MCT500 SACD/CD Transport) are all housed in our new DA1 Digital Audio Module; the DA1 can be easily replaced by future modules to keep your MA9000 up to date as new digital audio formats and technologies are developed. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 utilizes a powerful 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The coax and optical inputs will decode music up to 24-bit/192kHz for high resolution audio playback; the USB input accepts even higher PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz. All inputs can be given custom names for user-friendly system control and configuration. All inputs also function independently of each other and each is always available for use regardless of how your sources are connected.
"We were wrong, McIntosh’s MA9000 is more than just 'eye candy', it’s ear candy as well... We were also wrong about having to use two words to describe the McIntosh MA9000. We can do it in one. Sweet!" - Audio Esoterica

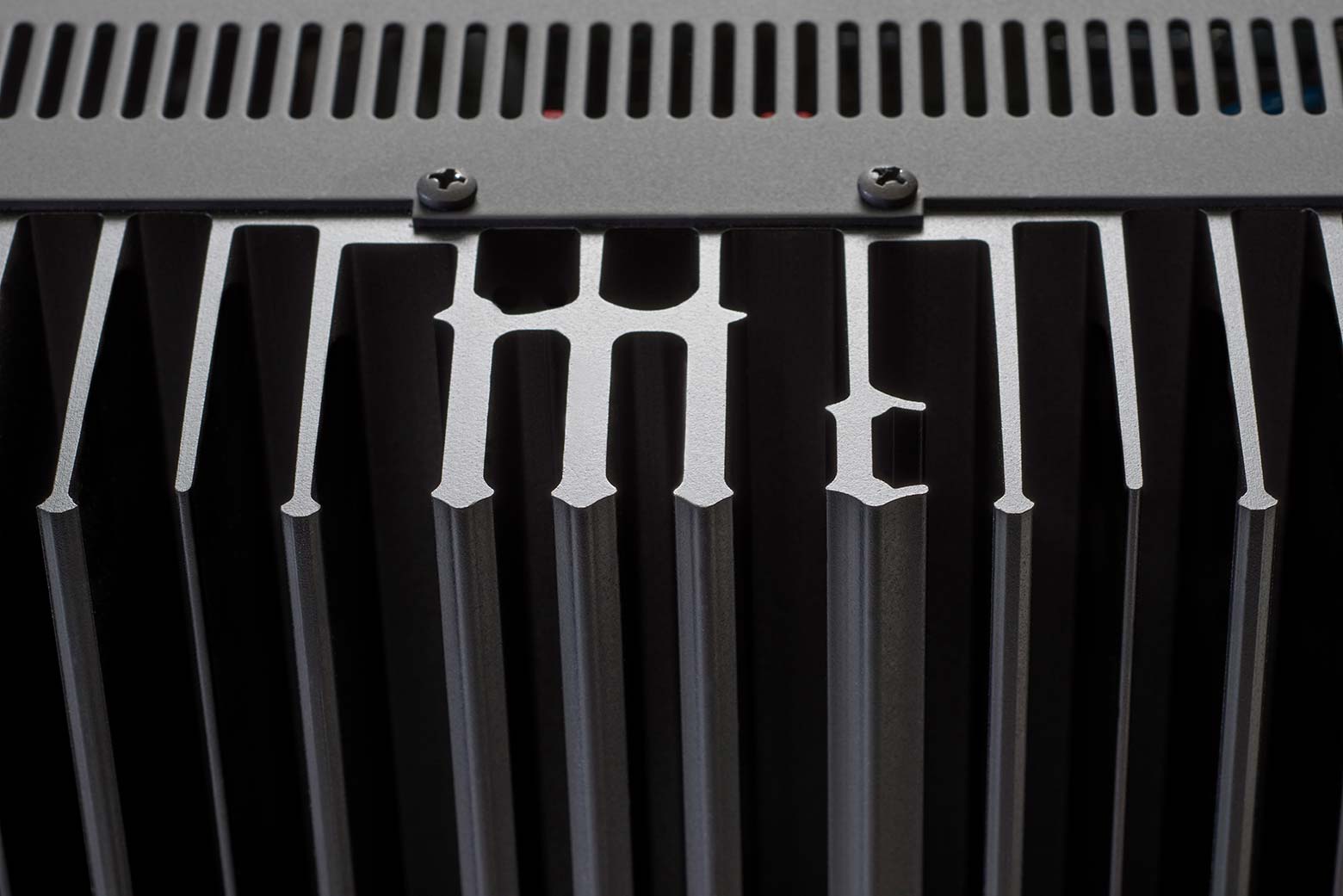

The MA9000 features our new McIntosh Monogrammed Heatsinks™ that are made from high quality materials with excellent thermal conductivity properties. They are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They also have a higher quality finish thanks to a new manufacturing process. They are connected to advanced high current output transistors that eliminate thermal equilibrium lag time (or warm-up time), meaning the first note played will sound just as good as those played later in your listening session.
"Few manufacturers would have managed to combine so many functions in one device, with so little compromise and with such a satisfactory result." The MA9000 reproduces "everything with a high degree of musical truth." - Son et Image
"What I can certainty tell you is that this MA9000 is a product truly remarkable, complete, powerful, detailed and able to amaze every time!" - Fedeltà del Suono
New, more powerful control microprocessors have been used in the MA9000 to improve overall system operation. Some of the latest audio-grade circuit components have also been utilized to allow the MA9000 to deliver the best sound possible. At 300 Watts per channel, the MA9000 has enough power to properly drive virtually all loudspeakers – and our renowned McIntosh Autoformer™ guarantees your speakers will always receive that full 300 Watts regardless if they have 2, 4 or 8 Ohm impedance. Other McIntosh features included in the MA9000 are:
Solid Cinch speaker binding posts.
Power Guard® that monitors and adjusts the sound wave at the speed of light to prevent harsh sounding distortion and clipping that could damage your speakers
Sentry Monitor™ is our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
Home Theater PassThru that allows for seamless integration into a home theater system
High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) which can bring an added dimension to headphone listening
A discrete, eight-band tone control that allows for advanced manual analog adjustment of your favorite recordings
Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown

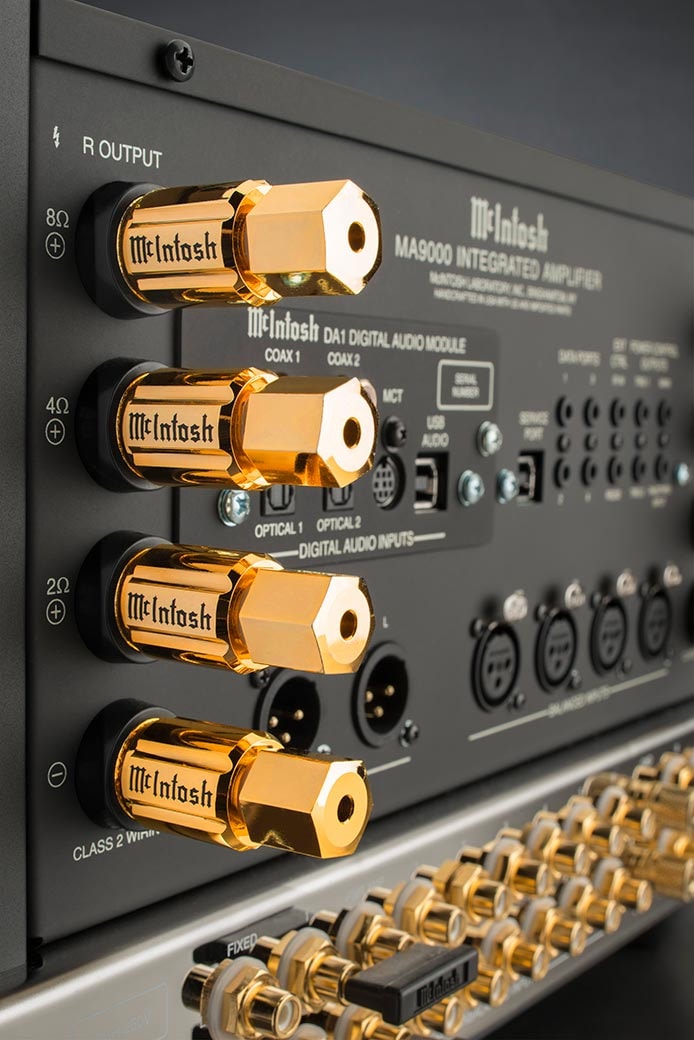

Our patented Solid Cinch™ speaker binding posts that easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are also gold-plated to prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers
The MA9000 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

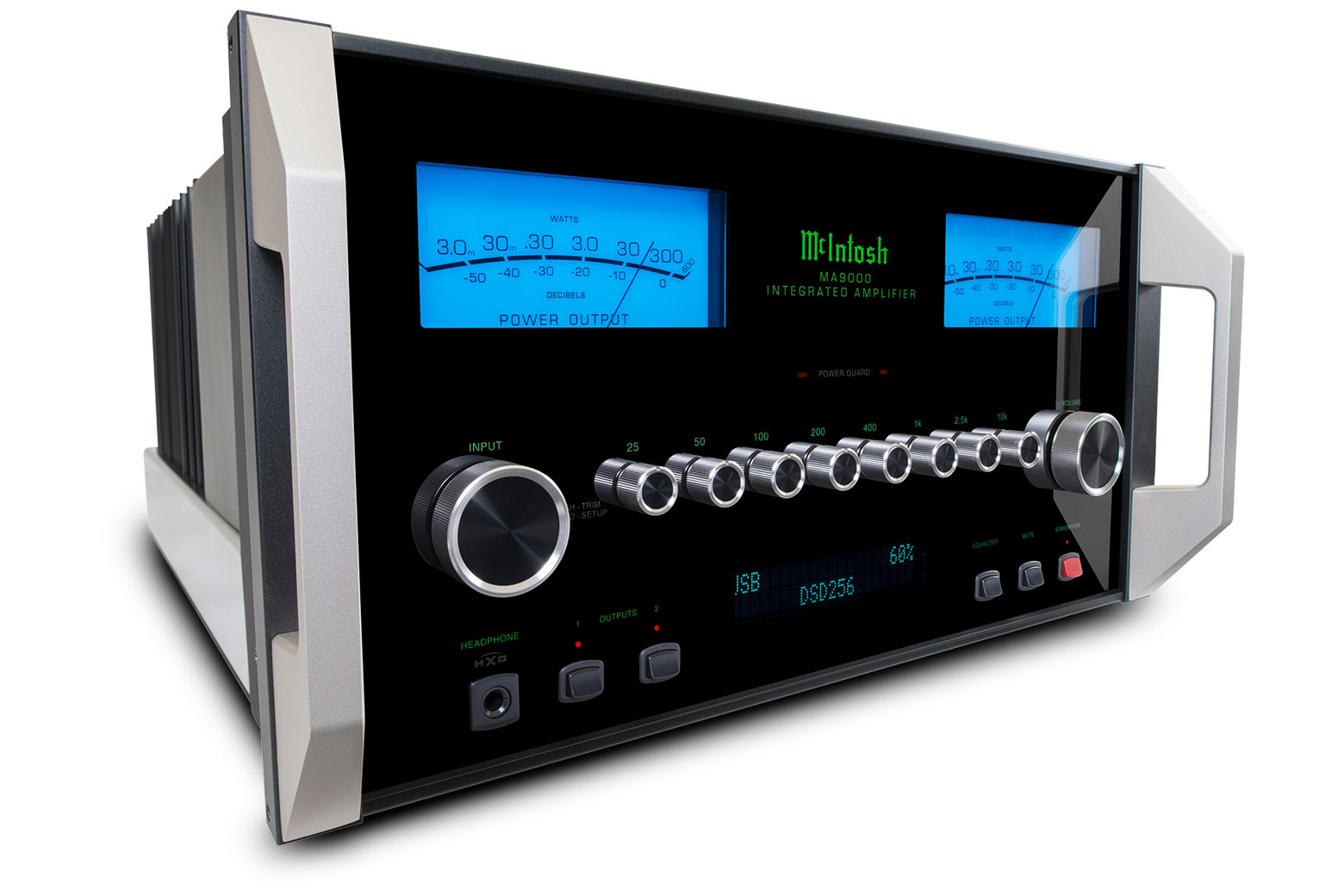

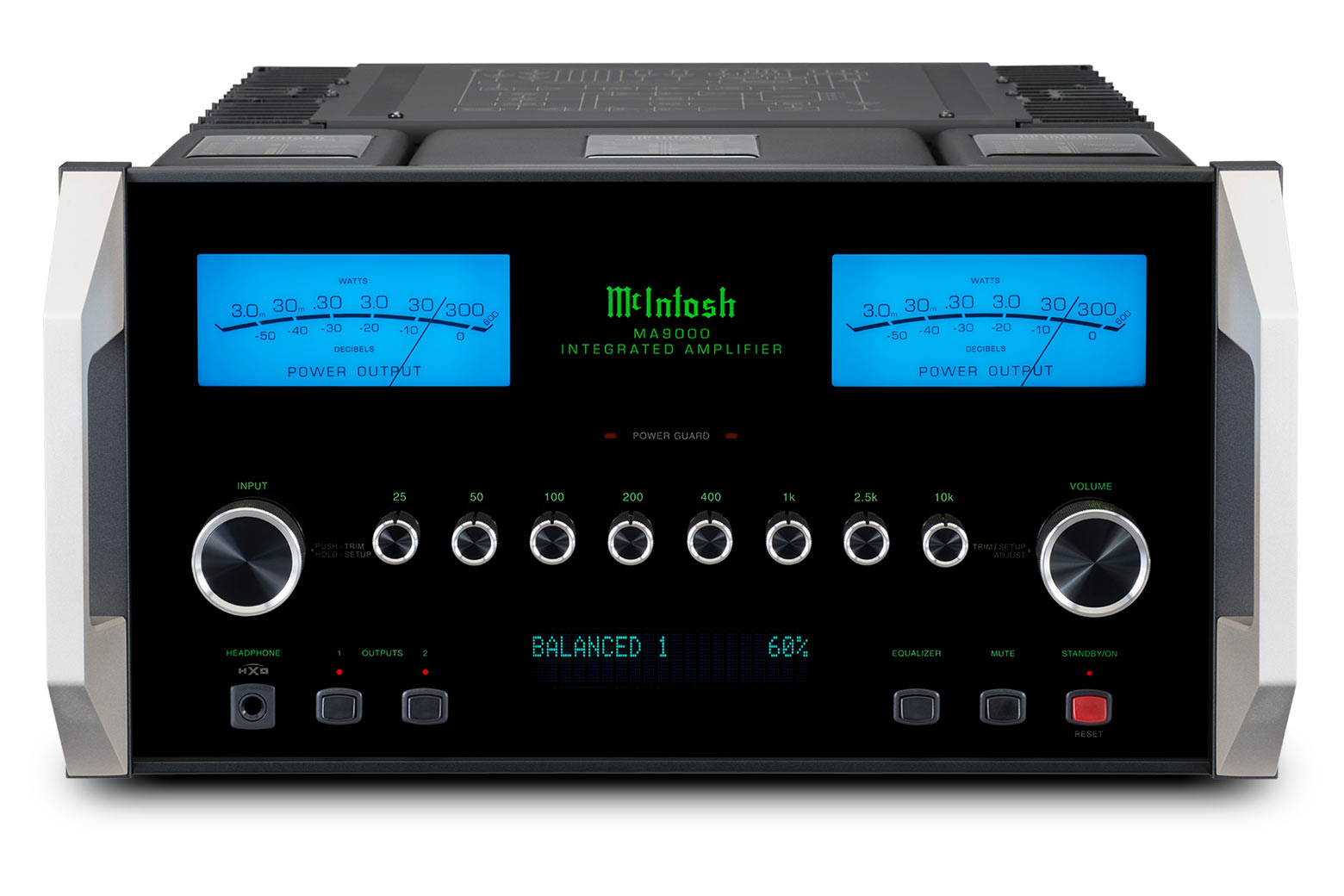

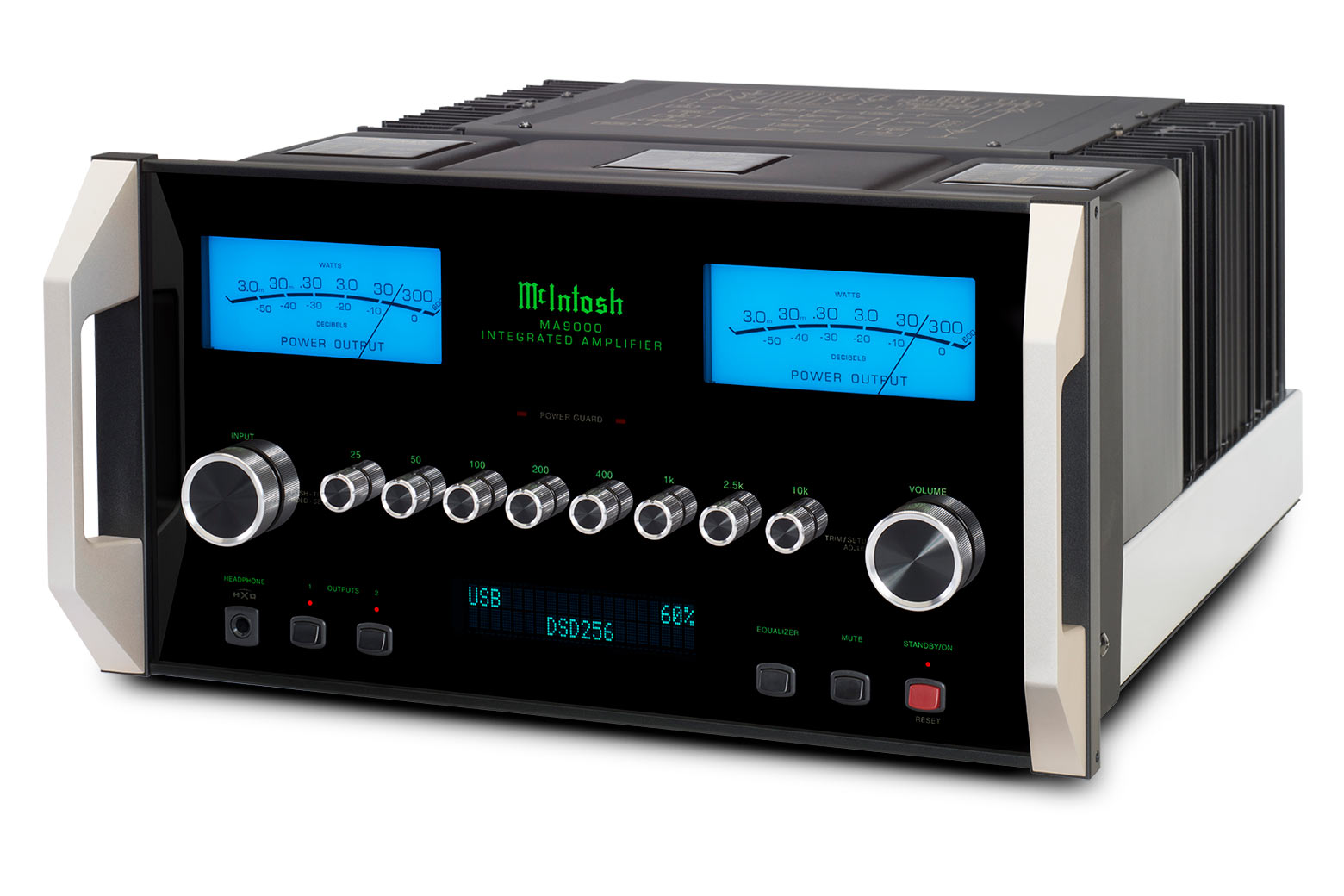

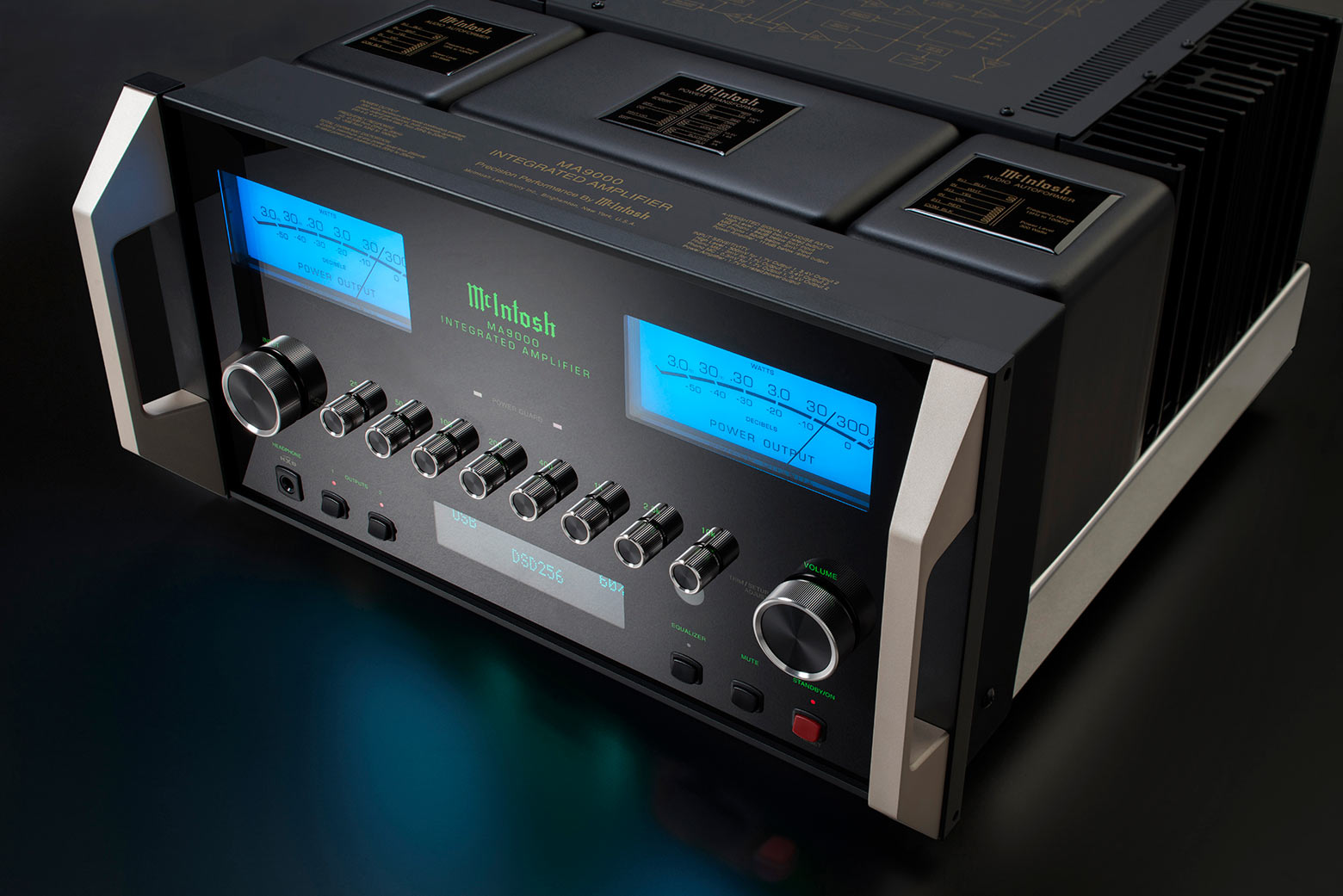

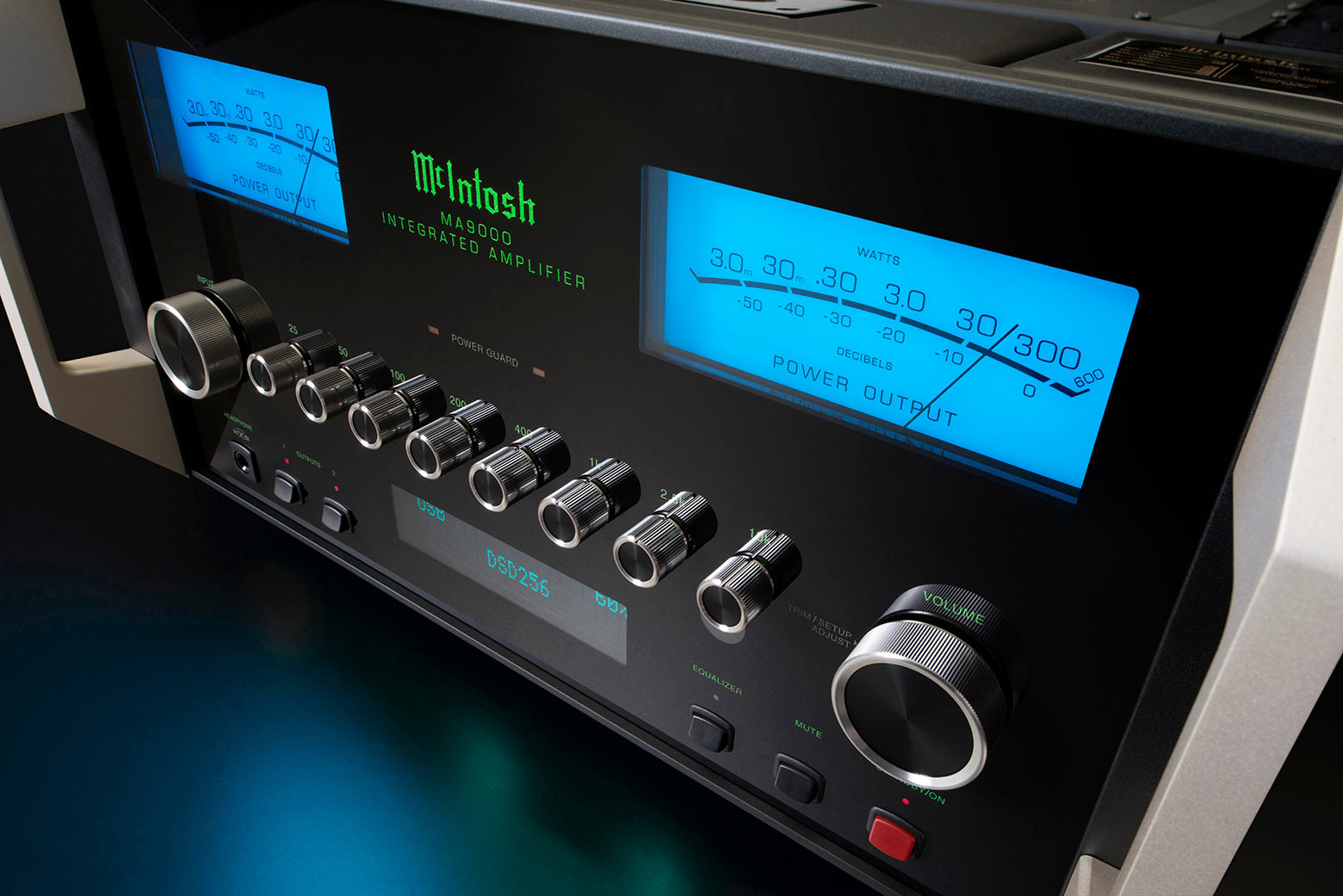

The entire unit is wrapped in the classic McIntosh aesthetic with blue watt meters, a black glass front panel, control knobs, illuminated logo, aluminum end caps with built-in handles and a beautiful polished stainless steel chassis. Contact your local dealer to learn more.
Specifications
Electronic Specifications
Power Output per Channel
300 Watts
Number of Channels
2
Speaker Impedance
2, 4, or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
0.005%
Dynamic Headroom
1.8dB
Frequency Response +0,-0.5dB
20Hz to 20kHz
Frequency Response, +0, -3dB
10Hz to 100kHz
Sensitivity Phono (Moving Coil)
0.30mV
Sensitivity Phono (Moving Magnet)
3.0mV
Sensitivity High Level (Balanced / Unbalanced)
0.6V/0.3V
Sensitivity (Power Amp input)
1.7V
Signal To Noise Ratio (Moving Coil)
82dB
Signal To Noise Ratio (Moving Magnet)
84dB
Signal To Noise Ratio (High Level)
98dB
Signal To Noise Ratio (Power Amp input)
114dB
Input Impedance (Balanced / Unbalanced)
10K/22K
Damping Factor
>40
Maximum Output (Balanced / Unbalanced)
8V Unbalanced 16V Balanced
Connectivity
Balanced Input
2
Unbalanced Input
6
Phono Input Moving Coil
1 (adjustable loading)
Phono Input Moving Magnet
1 (adjustable loading)
Upgradeable Digital Audio Module
Yes: DA1
Digital Coaxial Input
2
Digital Optical Input
2
Digital MCT (DIN) Input
1
Digital USB Input
1
HDMI (ARC) Input
0
Balanced Variable Output
1
Unbalanced Fixed Output
1
Unbalanced Variable Output
1
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output
0
AM/FM Tuner option
No
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Premium gold-plated solid brass
Speaker Binding Post Type
Patented Solid Cinch™ Speaker Binding Posts
Service Port
1
Digital Audio Specifications
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate
16-bit/44.1kHz (CD) DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM) DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Control
Tone Controls
8-Band
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 2 Trigger
Rear Panel Data Port
4
Rear Panel IR Sensor Input
Yes
Input Level Match
Yes
General Specifications
Vacuum Tube or Solid State
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Polished stainless steel & black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V, 50/60Hz, 6.6A
Standby Power Requirement
<0.25 Watts
Weights & Dimensions
Unit Dimensions (W x H x D)
17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm)
