- All analog design and a retro look
- (5) 12AX7A and (1) 12AT7 vacuum tubes
- Moving Coil and Moving Magnet phono inputs
C70

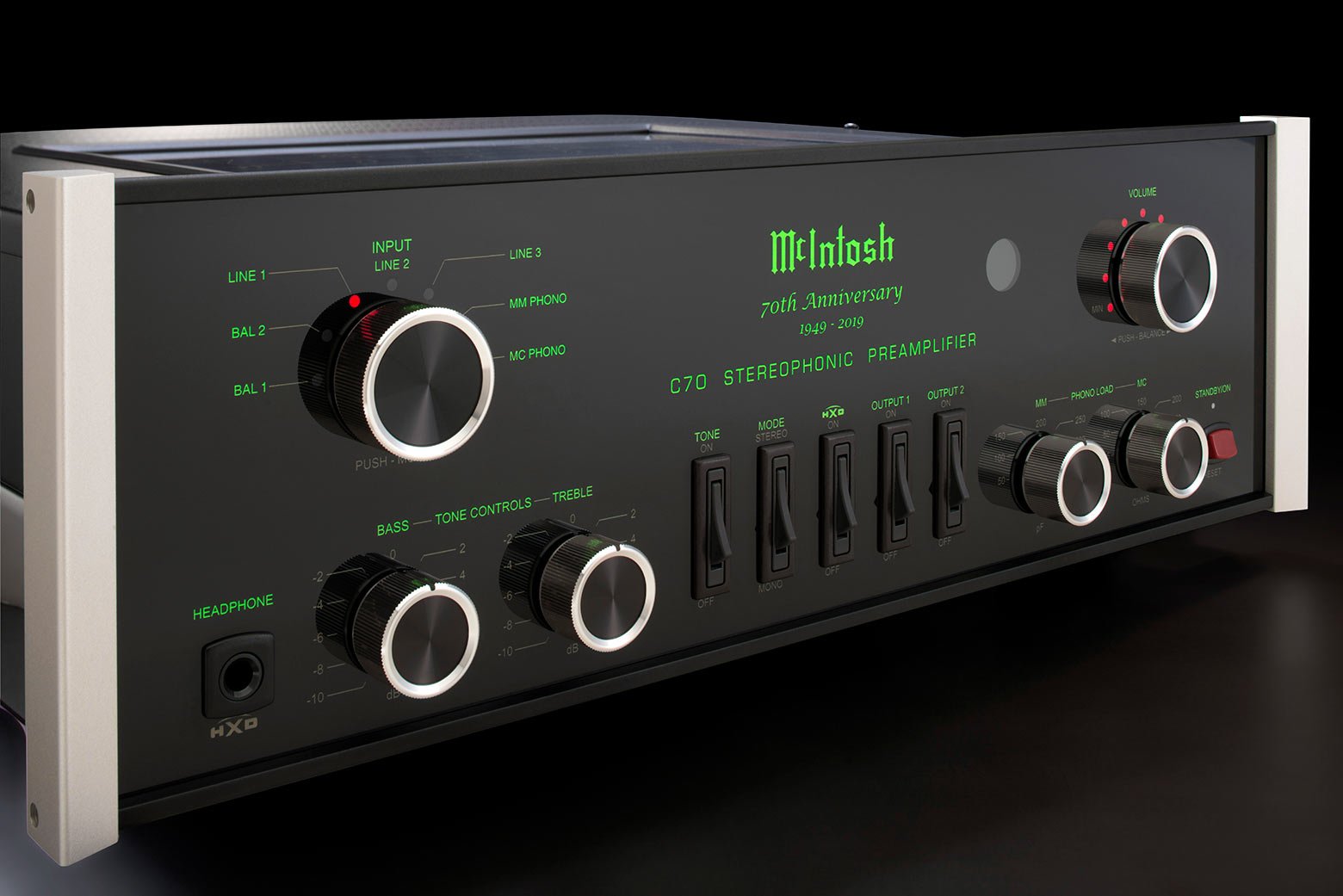

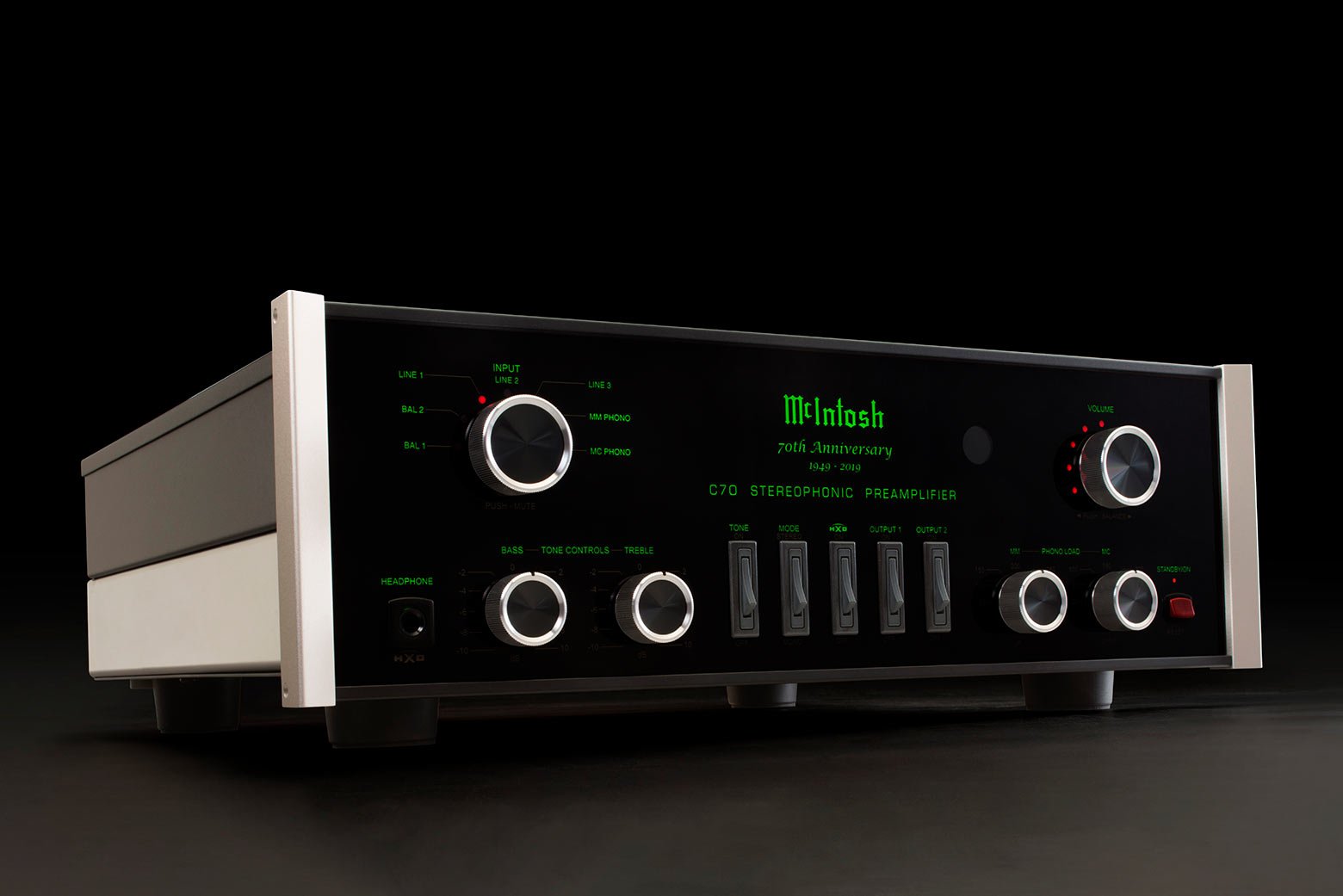

70th Anniversary 2-Channel Vacuum Tube Preamplifier
"What ever I played the McIntosh duo threw it into our room with stunning clarity and shocking power... the C70 and MC2152 are truly amazing – a visual and audible display like no other." Awarded 5 out of 5 Globes. – Hi-Fi World
-
Specifications
Electronic Specifications
-
- Number of Channels
- 2
-
- Total Harmonic Distortion
- 0.08%
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
-
- Maximum Volts Out (Balanced / Unbalanced)
- 16V RMS / 8V RMS
-
- Sensitivity High Level (Balanced / Unbalanced)
- 900mV / 450mV
-
- Sensitivity Phono (Moving Coil)
- 0.45mV
-
- Sensitivity Phono (Moving Magnet)
- 4.5mV
-
- Signal To Noise Ratio (High Level)
- 100dB
-
- Signal To Noise Ratio (Moving Coil)
- 75dB
-
- Signal To Noise Ratio (Moving Magnet)
- 75dB
-
- Voltage Gain (High Level)
- 15dB
-
- Voltage Gain (Moving Coil)
- 60dB
-
- Voltage Gain (Moving Magnet)
- 40dB
-
- Input Impedance (Balanced / Unbalanced)
- 44K ohm, 22K ohm

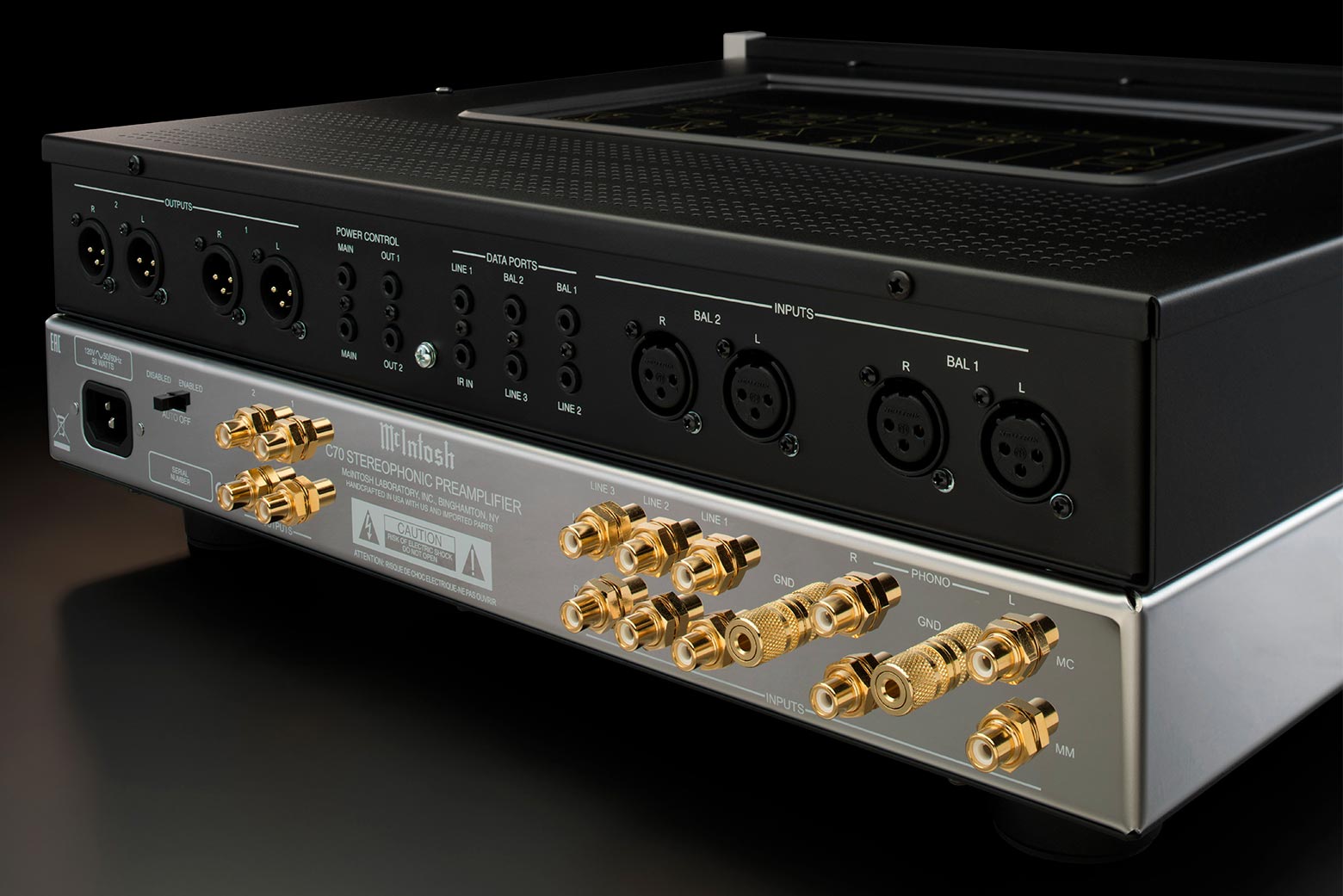

Connectivity
-
- Balanced Input
- 2
-
- Unbalanced Input
- 3
-
- Phono Input Moving Coil
- 1 (adjustable)
-
- Phono Input Moving Magnet
- 1 (adjustable)
-
- Upgradeable Digital Audio Module
- No
-
- Digital Coaxial Input
- 0
-
- Digital Optical Input
- 0
-
- Digital MCT (DIN) Input
- 0
-
- Digital USB Input
- 0
-
- HDMI (ARC) Input
- 0
-
- Digital AES/EBU Input
- 0
-
- Balanced Fixed Output
- 0
-
- Balanced Variable Output
- 2
-
- Unbalanced Fixed Output
- 0
-
- Unbalanced Variable Output
- 2
-
- Headphone Output
- 1/4" High Drive with Headphone Crossfeed Director (HXD®)
-
- Input Level Match
- No
-
- Home Theater PassThru
- No
-
- Unbalanced Analog Connector Type
- Premium gold-plated solid brass
-
- Service Port
- 0
Control
-
- Tone Controls
- Bass and Treble
-
- Tone Bypass and Input Assign
- Tone Bypass: Yes
Input Assign: No
-
- RS232 Control Input
- No
-
- Power Control Output
- 2 Main, 2 Switched
-
- Rear Panel Data Port
- 5
-
- Rear Panel IR Sensor Input
- Yes
General Specifications
-
- Multi-Chassis or Single
- Single, two layer
-
- Output Meters
- No
-
- Vacuum Tube or Solid State

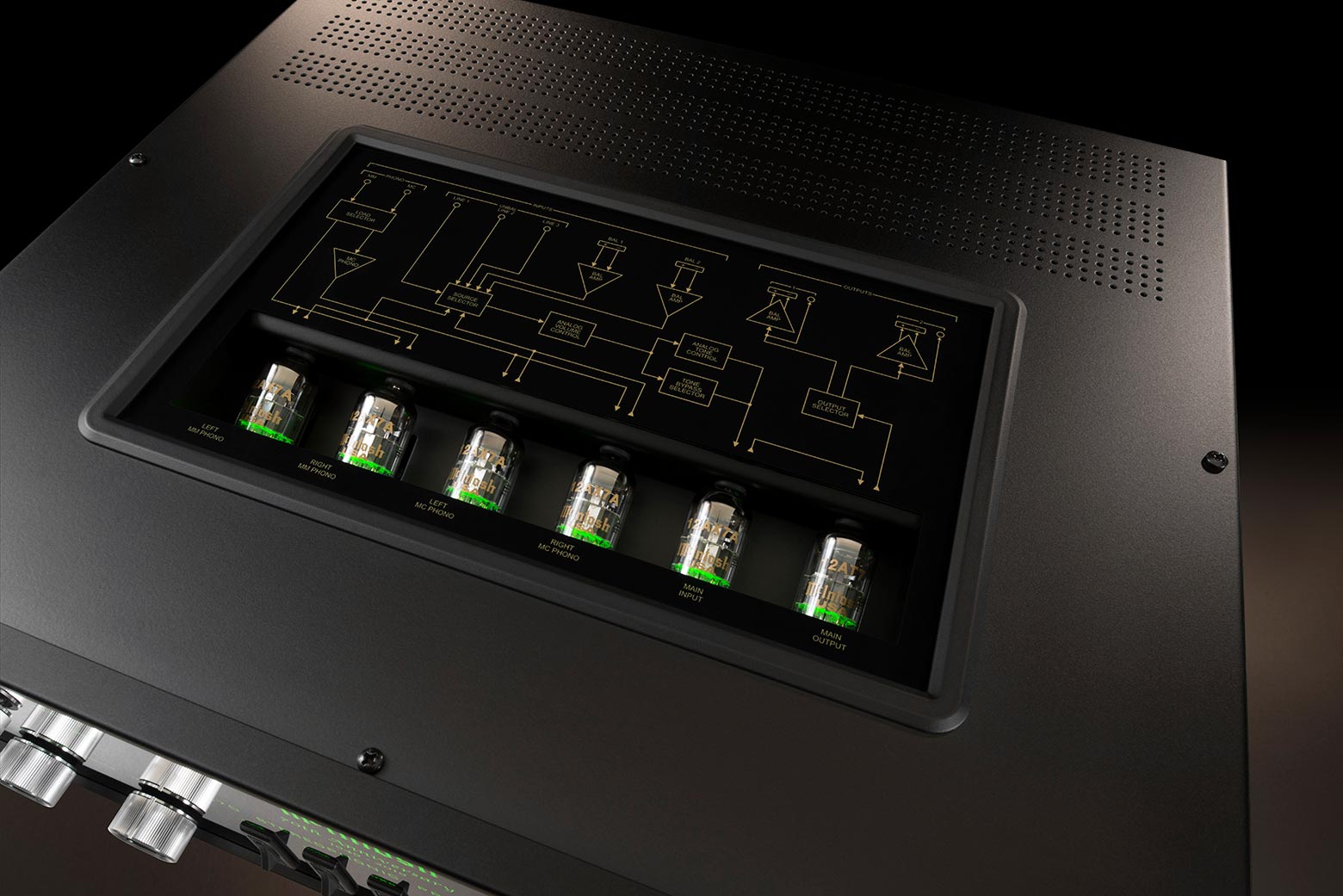

- Vacuum Tube: (5) 12AX7A and (1) 12AT7
-
- Power Consumption (On)
- 50 Watts
Weights & Dimensions
-
- Dimensions (W x H x D)
- 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
-
- Weight
- 25 lbs (11.3kg)
-
- Shipping Weight
- 41.4 lbs (18.8kg)
-
-
Downloads
Product Literature User Documents - C70 Preamplifier Brochure (1.32 MB)
- C70 Preamplifier Owner's Manual (4.61 MB)
- C70 Preamplifier Input and Output Connection Diagrams (1.07 MB)
-
