Home / Preamplifiers / C1100
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier
McIntosh C1100 Preamplifier

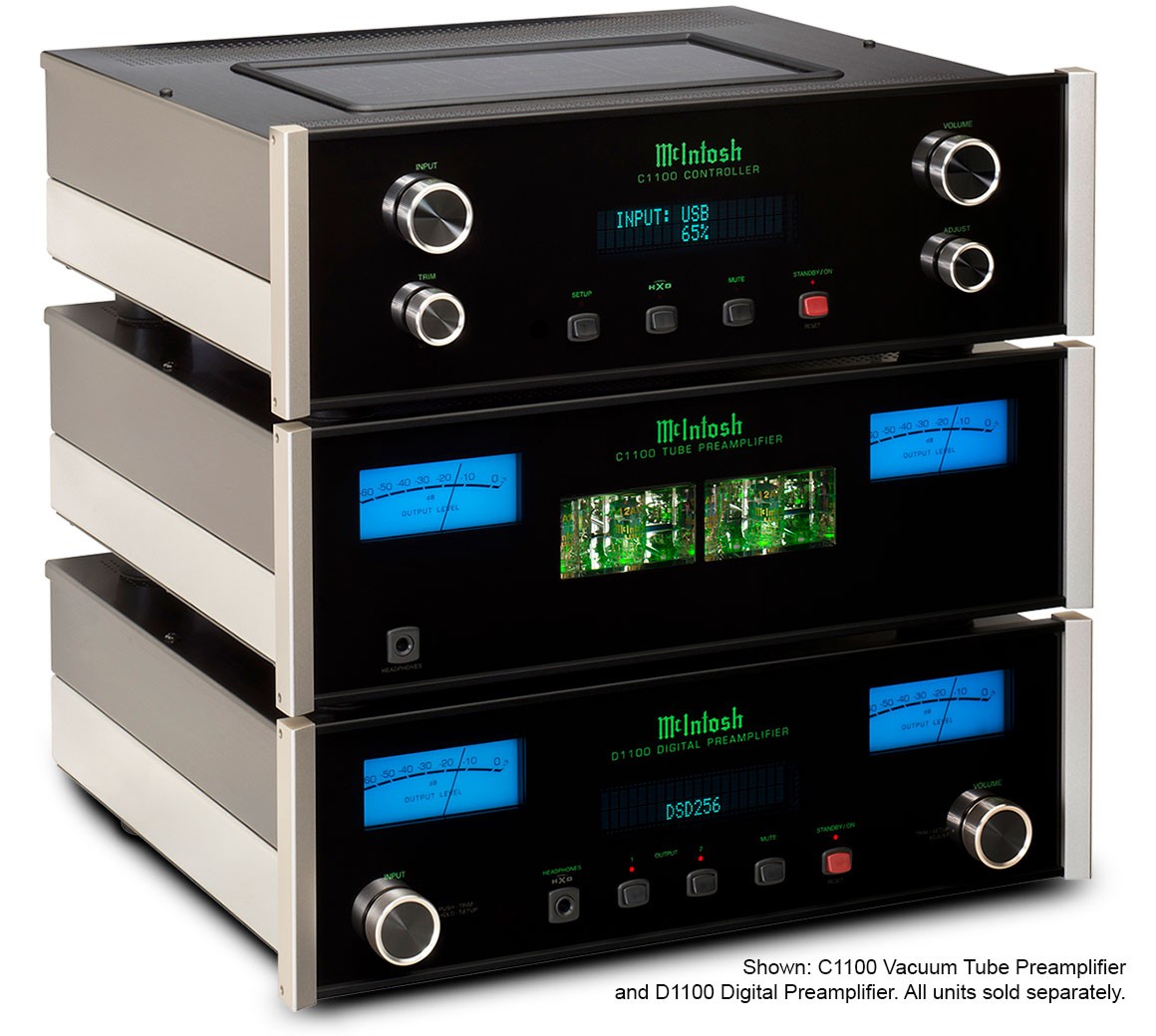

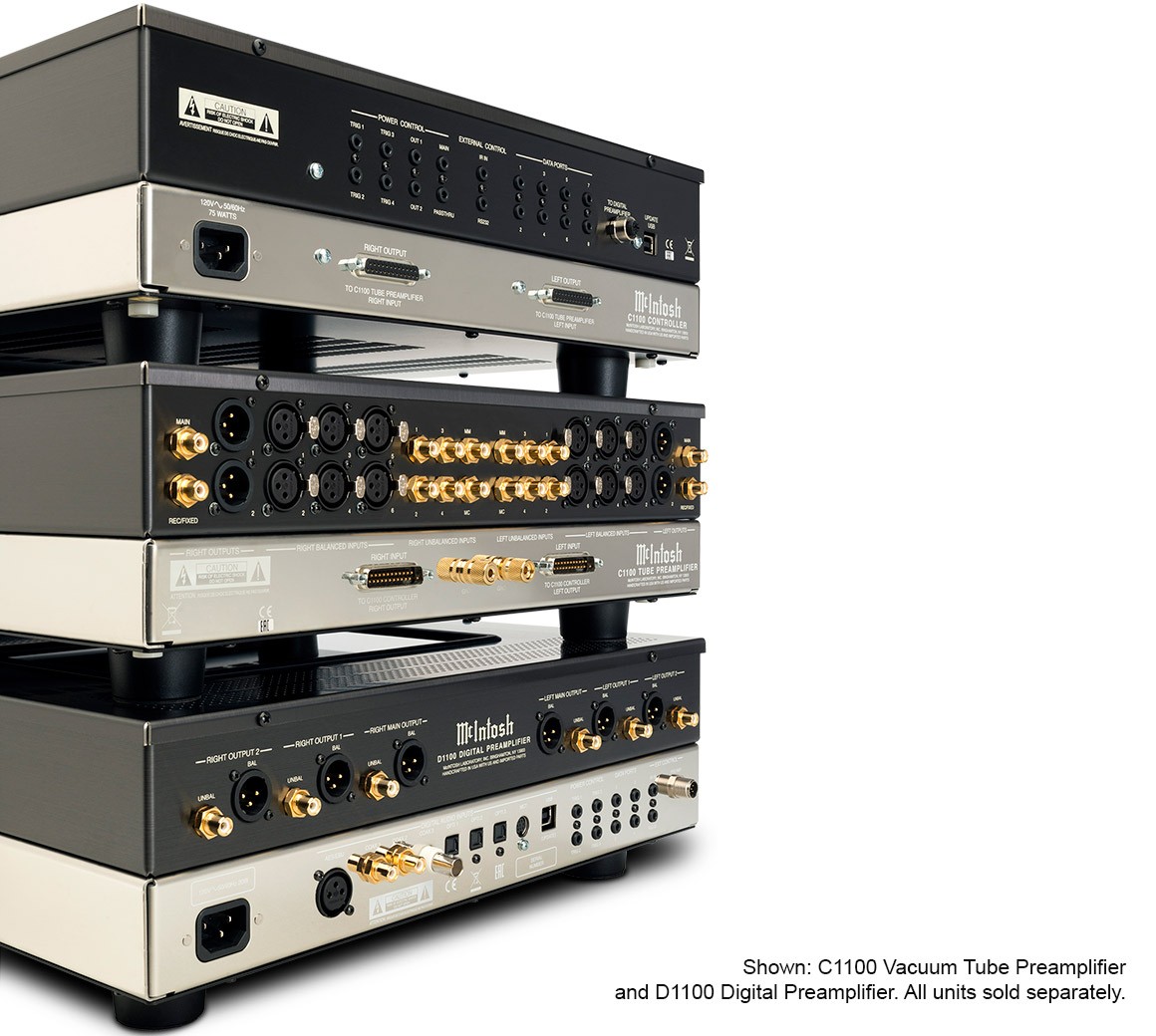

McIntosh C1100 and D1100 Preamplifiers
McIntosh C1100 and D1100 Preamplifiers
McIntosh C1100 and D1100 Preamplifiers

C1100

2-Channel Vacuum Tube Preamplifier

  • Separate audio & control sections
  • 12 analog inputs including Moving Coil & Moving Magnet phono
FIND A DEALER
Eligible for online purchase?
3 Year Limited Warranty
Add to WishlistRemove From Wishlist
Print this page
COMPARE
Ask an Expert
Share

C1100

2-Channel Vacuum Tube Preamplifier

3 Year Limited Warranty
Print this page
COMPARE
Ask an Expert
Share
Add to WishlistRemove From Wishlist
BUY ONLINE FIND A DEALER
  • McIntosh C1100 Preamplifier Stereo Sound Grand Prix Award
    Winner of Stereo Sound Grand Prix 2015

The C1100 preamplifier brings a new level of performance and luxury to McIntosh’s heralded preamplifier offerings – evidenced by its high level inputs having the lowest noise of any McIntosh preamplifier ever produced. It utilizes a two-chassis design where the control and power sections are completely separate from the audio section. Absolute isolation of a preamplifier's two main functions – control and sound – is achieved by this unusual but effective design and will provide you with the purest sound reproduction possible for generations of listening enjoyment.

Winner of prestigious Grand Prix Award for its "rich and accurate body of sound." - Stereo Sound

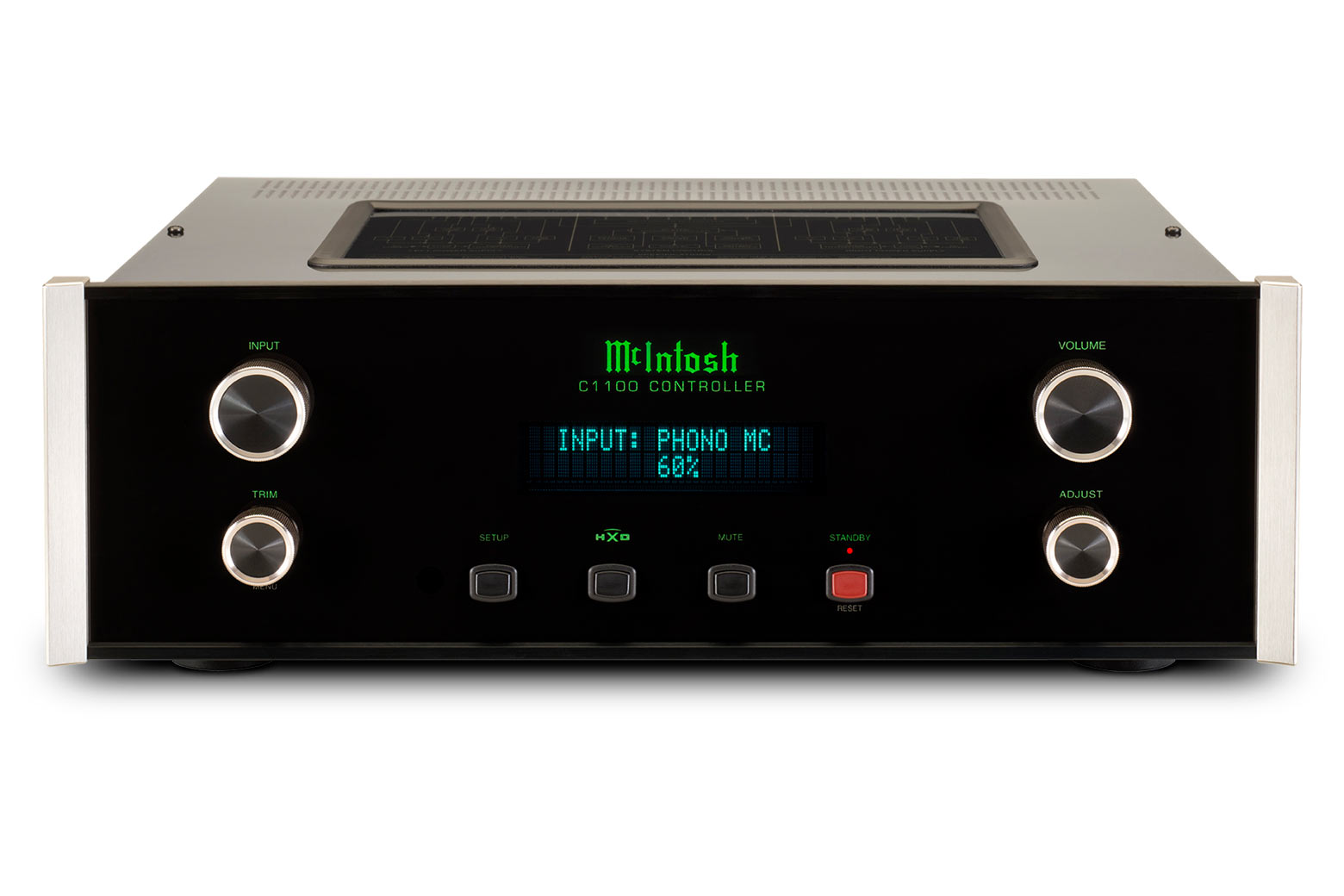

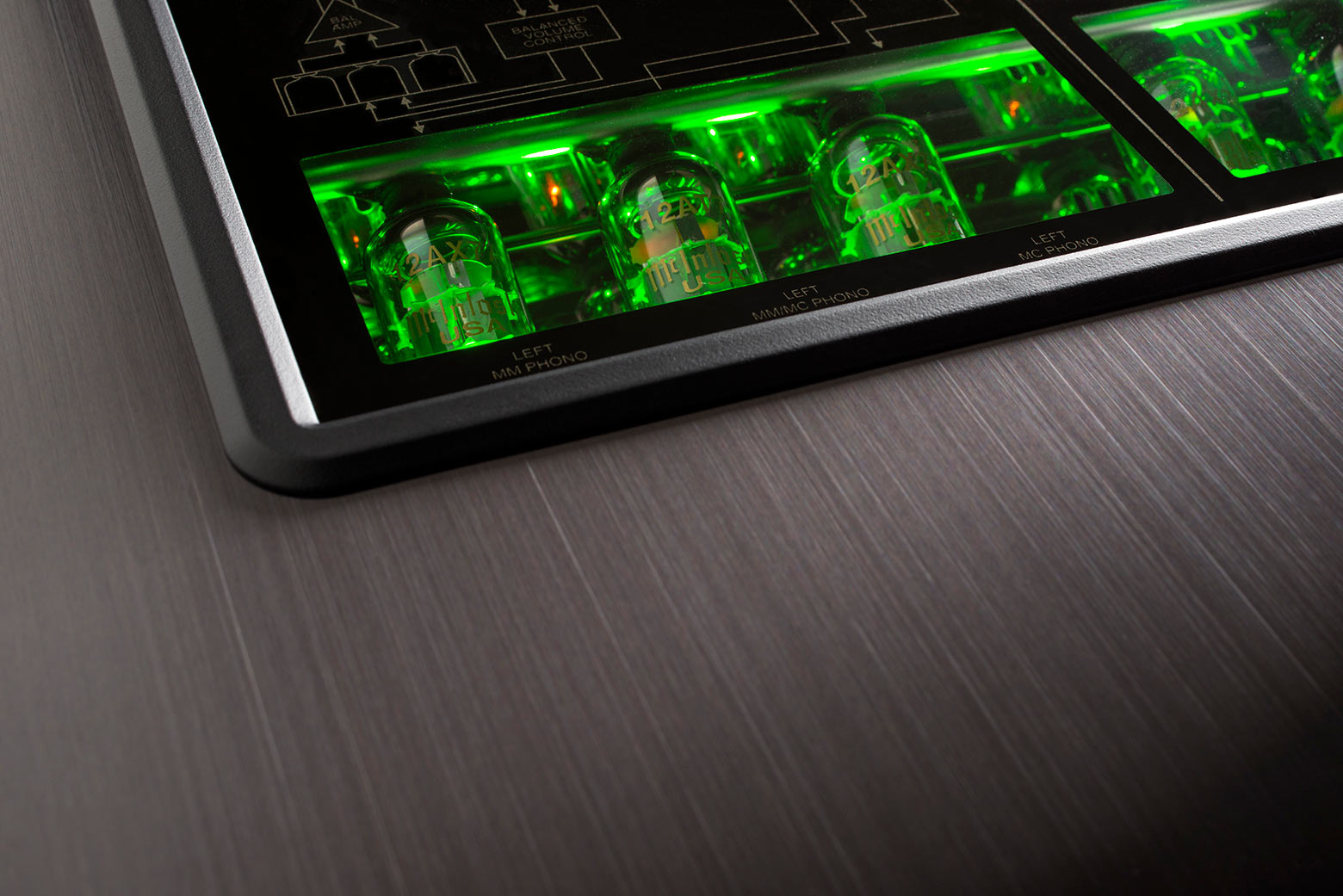

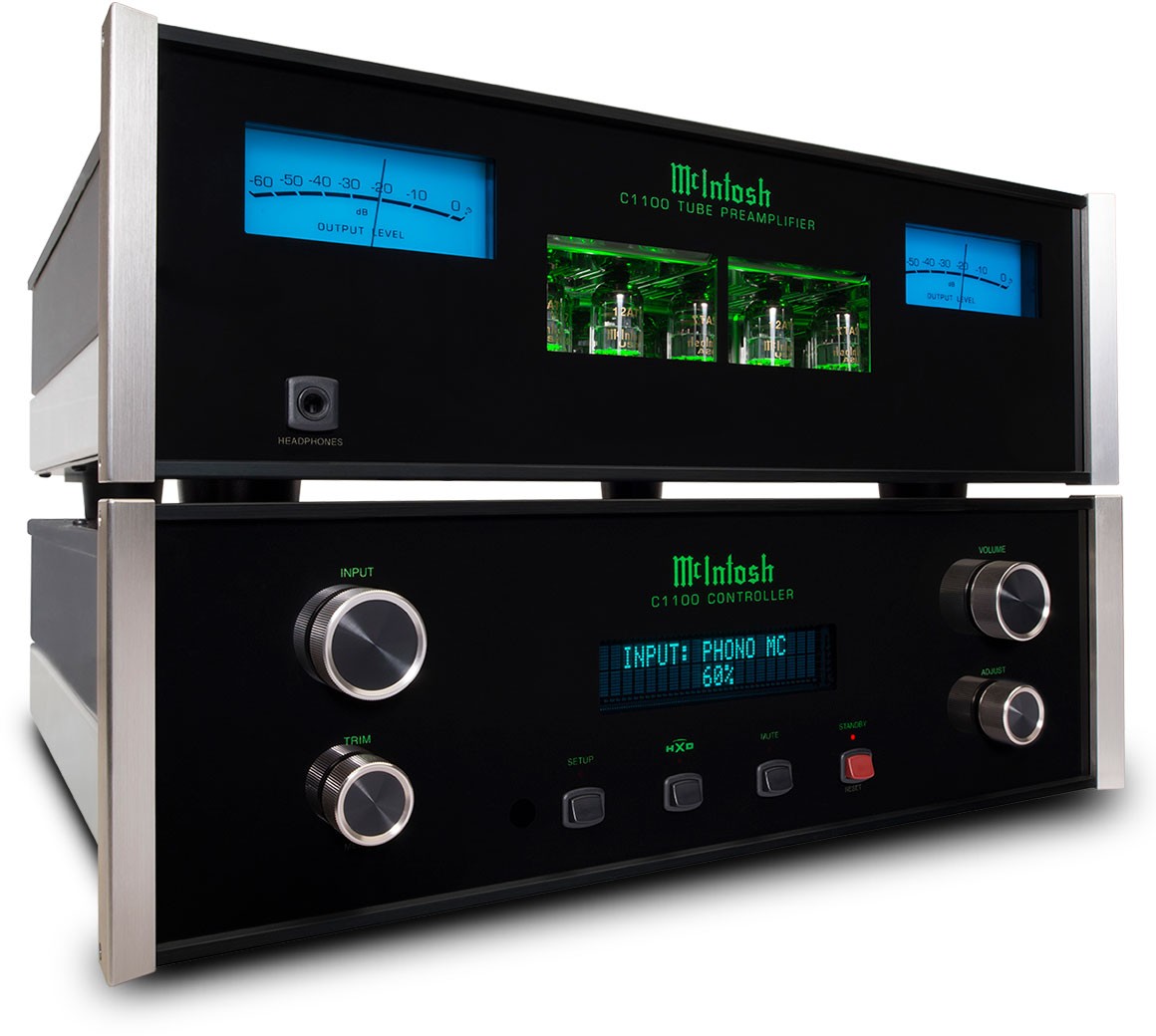

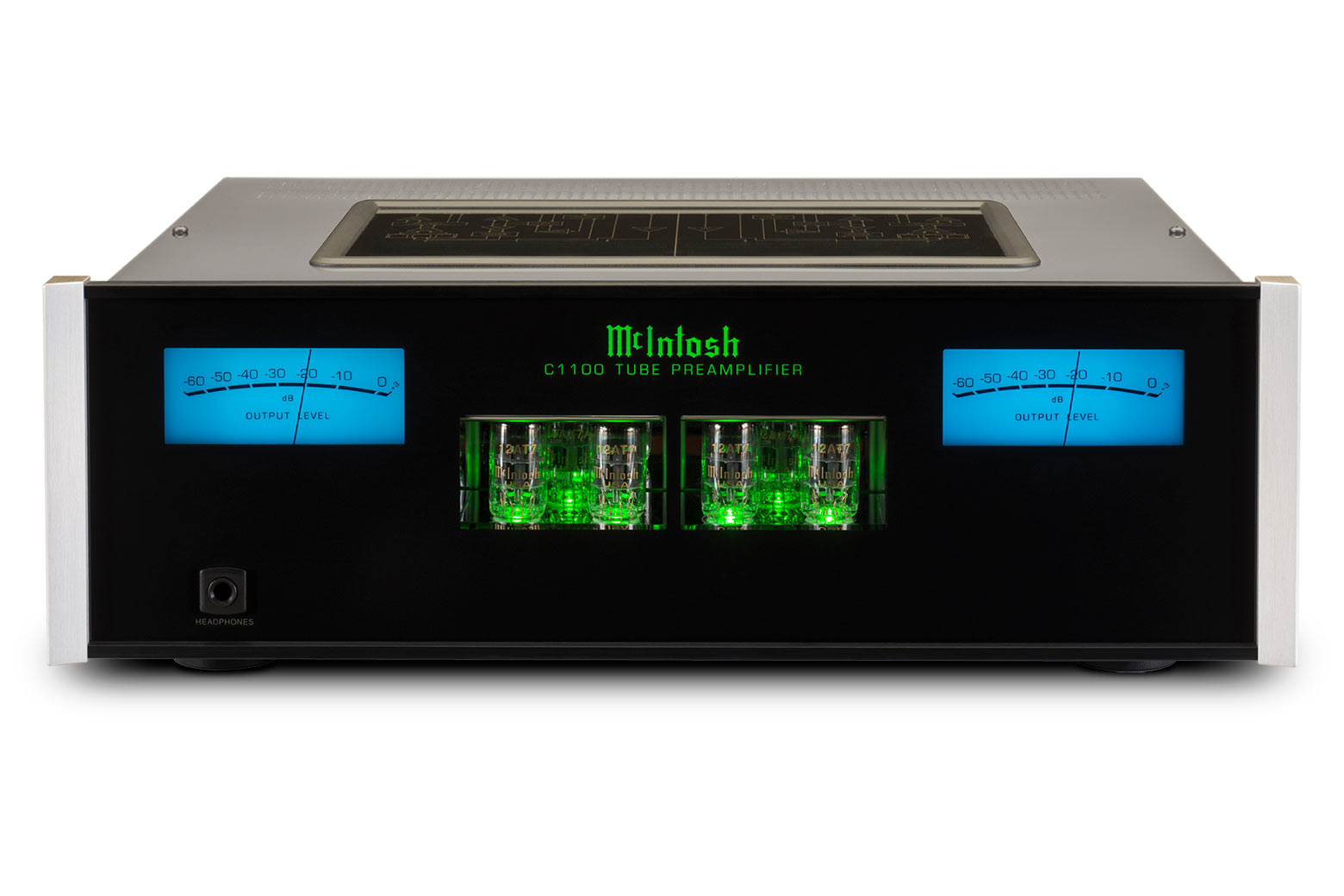

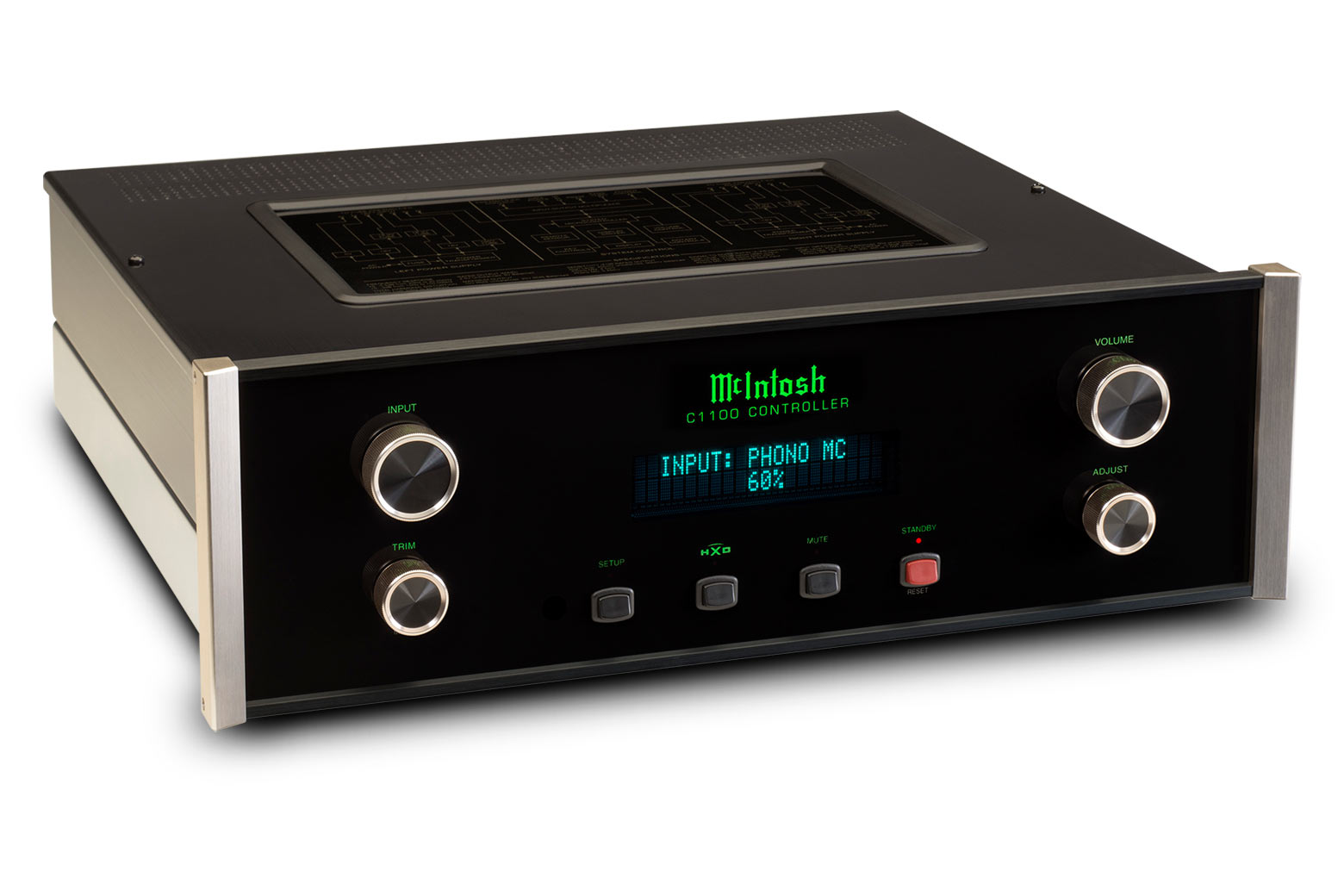

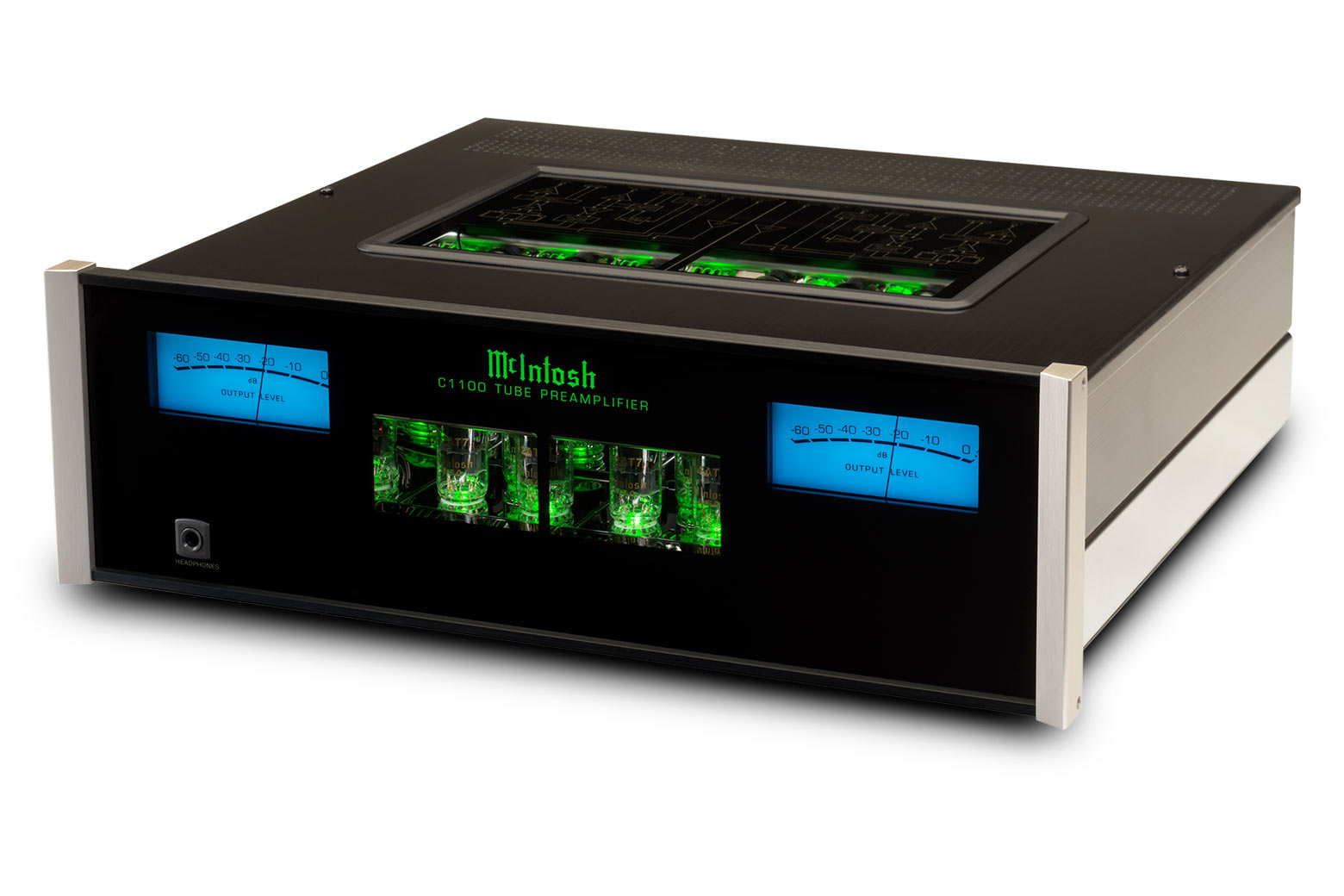

The C1100 is comprised of the C1100 Controller and the C1100 Vacuum Tube Preamplifier. Inside each, the left and right channels are electrically and mechanically isolated from each other to allow true dual mono operation - resulting in the ultimate stereo separation and sonic purity. The two units are connected together via a pair of specially designed, high performance umbilical cables that are shielded to prevent outside noise from leaking into the audio signal. While they are two separate units, when connected they act as one and are easy to control and operate from the included remote control or the C1100 Controller front panel. Both units’ chassis are comprised of polished stainless steel and hairline brushed black Titanium stainless steel, offering a new degree of richness and refinement.

"Distortion is very low indeed at just 0.00009 - 0.0005%." - Hi-Fi News

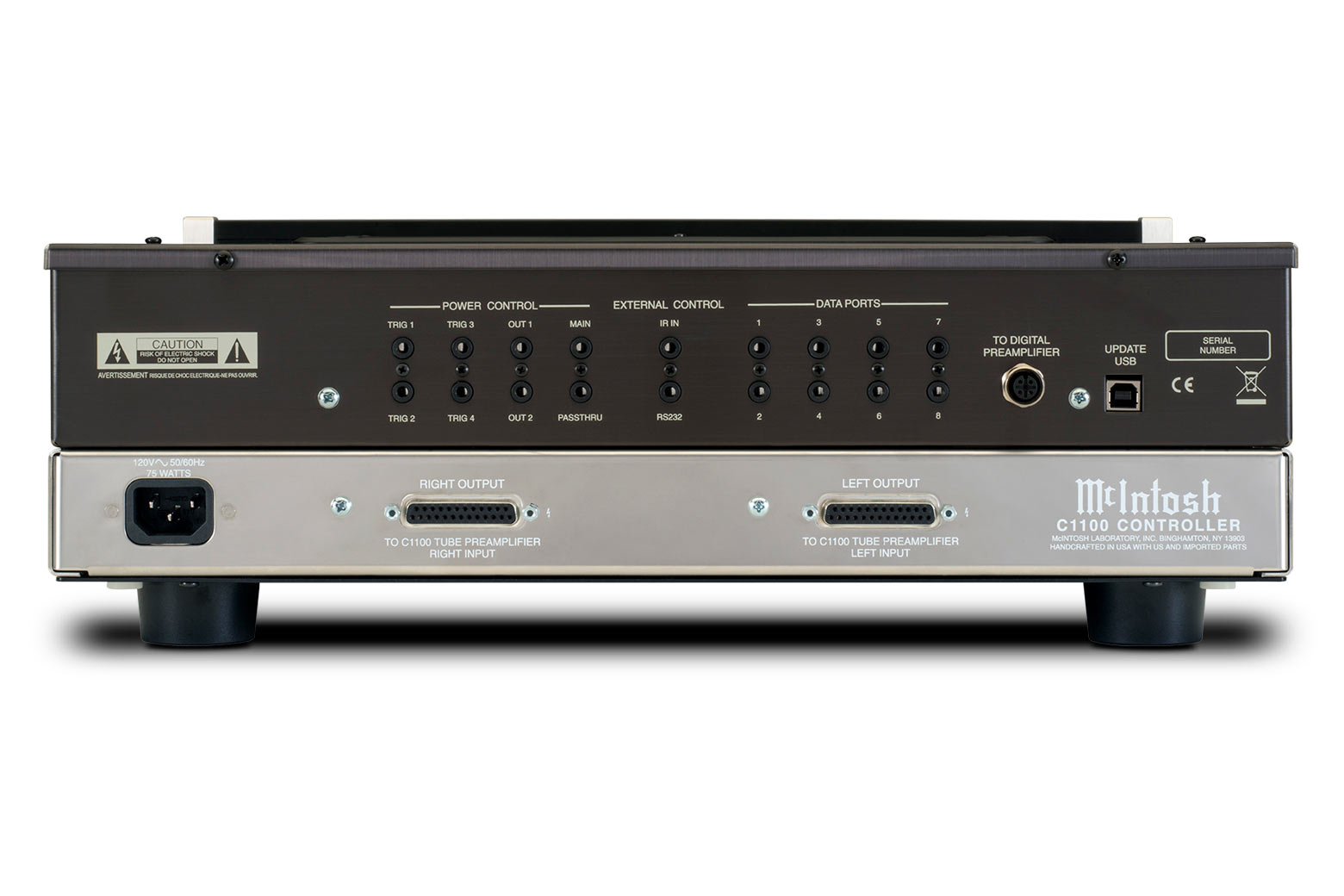

All power control, data ports and external control connections are located in the C1100 Controller; the introduction of a dual microprocessor allows for an improved robustness of the control system. The C1100 Vacuum Tube Preamplifier houses the audio connections and circuitry, featuring a total of 12 analog inputs: 6 balanced, 4 unbalanced, plus adjustable loading Moving Magnet and Moving Coil phono inputs. For outputs, 2 sets of balanced and 2 sets of unbalanced connections provide flexibility in connecting to your amplifier. Twelve vacuum tubes (6 each of 12AX7a and 12AT7) power the tube preamplifier. Compared to the C1000 preamplifier which had 8 tubes, the additional 4 tubes in the C1100 lowers its dependency on any solid-state support. The amplifier circuit has much higher common mode rejection, so any noise introduced by interconnect cables is significantly reduced. For personal listening, the headphone jack features a higher output than any of our other preamplifiers, while Headphone Crossfeed Director (HXD®) brings a new depth and spatiality to your music. The Home Theater Pass Through feature allows for seamless integration into your existing multi-channel home theater system.

For digital music sources, the C1100 can be connected to and used in conjunction with its digital counterpart – the D1100 Digital Preamplifier. Like the C1100, the D1100 employs a dual mono design and features the most advanced digital-to-analog converter (DAC) we’ve ever used in order to reproduce your digital music with the same level of excellence that the C1100 gives to your analog sources. When connected, the C1100 takes over control of the D1100 and its 9 digital inputs, resulting in a single and easy to use interface.

"The C1100 is outstanding... A fantastic preamplifier any way you look at it. Highly recommended if you are a lover of the brand, and if you aren't, this is the perfect piece to start your journey." - Tone Audio

The C1100 preamplifier employs fully balanced circuitry to match the level of performance achieved in any of our Quad Balanced amplifiers. With classic McIntosh black glass front panels, blue meters, knobs, stainless steel chassis, illuminated logos and custom machined brushed aluminum end caps, the C1100 makes a visual statement in addition to its audio prowess. It can be paired with a variety of McIntosh amplifiers, speakers, room correction devices, CD players, turntables, tuners and other source components to make a complete home audio system. Contact your local dealer to learn more.

  • Specifications

    Electronic Specifications

    • Number of Channels
      2
    • Total Harmonic Distortion
      High Level: 0.005%
      Phono: 0.05%
    • Frequency Response
      +0, -0.5dB from 20Hz to 20kHz
      +0, -3dB from 10Hz to 100kHz
    • Maximum Volts Out (Balanced / Unbalanced)
      20V RMS / 10V RMS
    • Sensitivity High Level (Balanced / Unbalanced)
      900mV / 450mV
    • Sensitivity Phono (Moving Coil)
      0.45mV
    • Sensitivity Phono (Moving Magnet)
      4.5mV
    • Signal To Noise Ratio (High Level)
      107dB
    • Signal To Noise Ratio (Moving Coil)
      79dB
    • Signal To Noise Ratio (Moving Magnet)
      77dB
    • Voltage Gain (High Level)
      15dB
    • Voltage Gain (Moving Coil)
      60db
    • Voltage Gain (Moving Magnet)
      40dB
    • Input Impedance (Balanced / Unbalanced)
      50K ohms, 25K ohms

    Connectivity

    • Balanced Input
      6
    • Unbalanced Input
      4
    • Phono Input Moving Coil
      1 (adjustable)
    • Phono Input Moving Magnet
      1 (adjustable)
    • Upgradeable Digital Audio Module
      No
    • Digital Coaxial Input
      0
    • Digital Optical Input
      0
    • Digital MCT Input
      0
    • Digital USB Input
      1 (for system update only)
    • HDMI (ARC) Input
      0
    • Digital AES/EBU Input
      0
    • Balanced Fixed Output
      0
    • Balanced Variable Output
      2
    • Unbalanced Fixed Output
      1
    • Unbalanced Variable Output
      1
    • Headphone Output
      1/4" High Drive with Headphone Crossfeed Director (HXD®)
      Selectable headphone impedances of: 16 ohms - 40 ohms, 40 - 150 ohms, 150 - 600 ohms
    • Input Level Match
      Yes, +/- 6dB
    • Home Theater PassThru
      Yes
    • Unbalanced Analog Connector Type
      Premium gold-plated solid brass
    • Service Port
      1

    Control

    • Tone Controls
      No
    • Tone Bypass and Input Assign
      No
    • RS232 Control Input
      Yes
    • Power Control Output
      1 Main, 2 Output, 4 Trigger
    • Rear Panel Data Port
      8
    • Rear Panel IR Sensor Input
      Yes

    General Specifications

    • Multi-Chassis or Single
      Multi Chassis (C1100C plus C1100T)
    • Output Meters
      C1100C: No
      C1100T: Yes
    • Vacuum Tube or Solid State

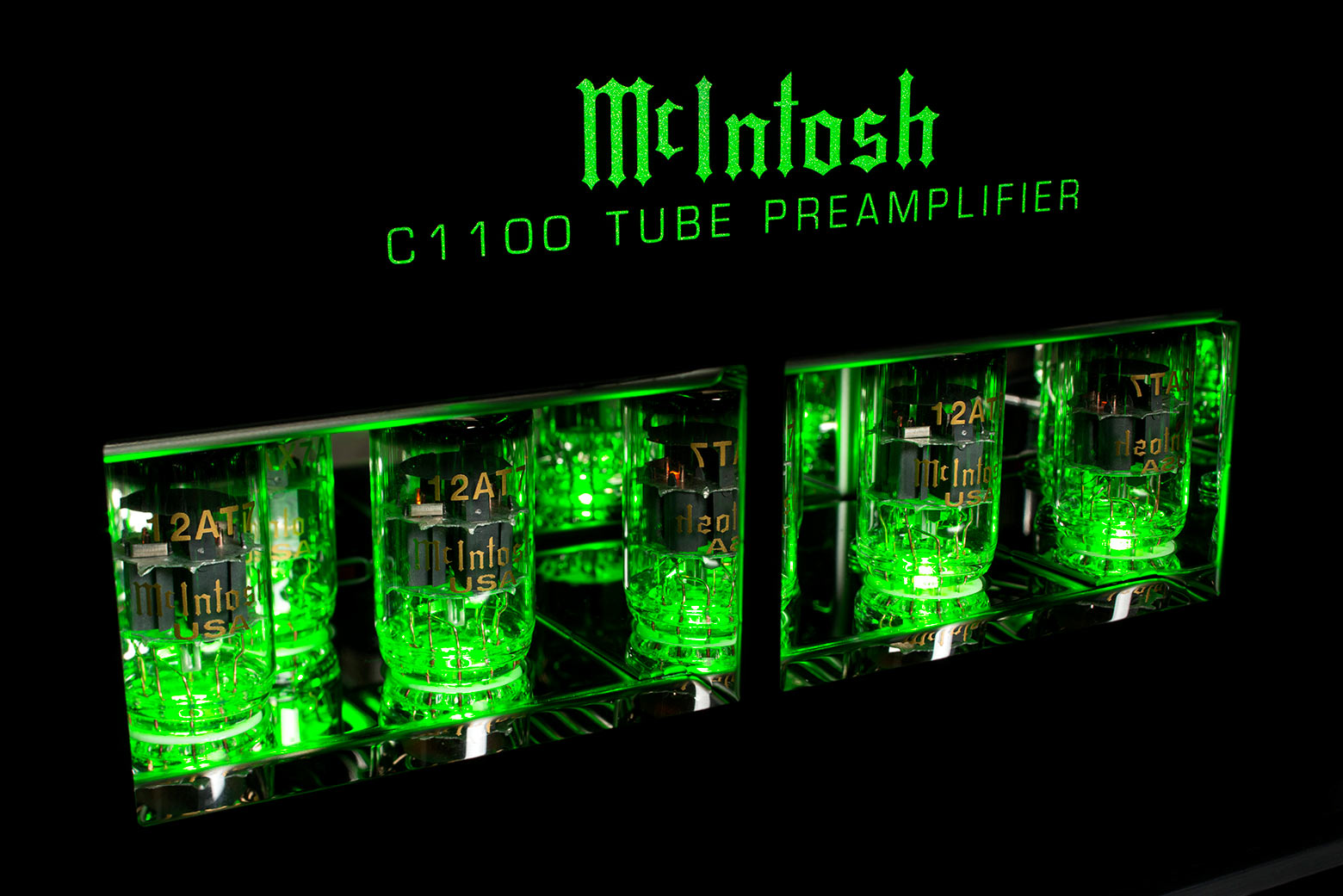

      Tube, (6) 12AX7a and (6) 12AT7
    • Power Consumption (On)
      75 watts

    Weights & Dimensions

    • Unit Dimensions (W x H x D)
      Each chassis:
      17.5" (44.45cm) x 6" (15.24cm) x 18" (45.7cm)
    • Unit Weight
      C1100C: 27 lbs (12.3 kg)
      C1100T: 25 lbs (11.3 kg)
    • Shipping Weight
      C1100C: 43.5 lbs (19.7 kg)
      C1100T: 39.5 lbs (17.9 kg)
  • Downloads

    Product Literature User Documents
    • C1100 Preamplifier Brochure (2.28 MB)
    • C1100 Preamplifier Owner's Manual (6.39 MB)
    • C1100 Preamplifier Input and Control Connection Diagrams (0.99 MB)
    • C1100 Preamplifier Output and Pasthru Connection Diagrams (1.67 MB)
    • C1100 Preamplifier Rear Panel Connections (0.33 MB)
    • C1100 Preamplifier Input Assignment Chart (0.13 MB)
    • HR085 Remote Control Learning Guide (4.34 MB)
    • Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)
