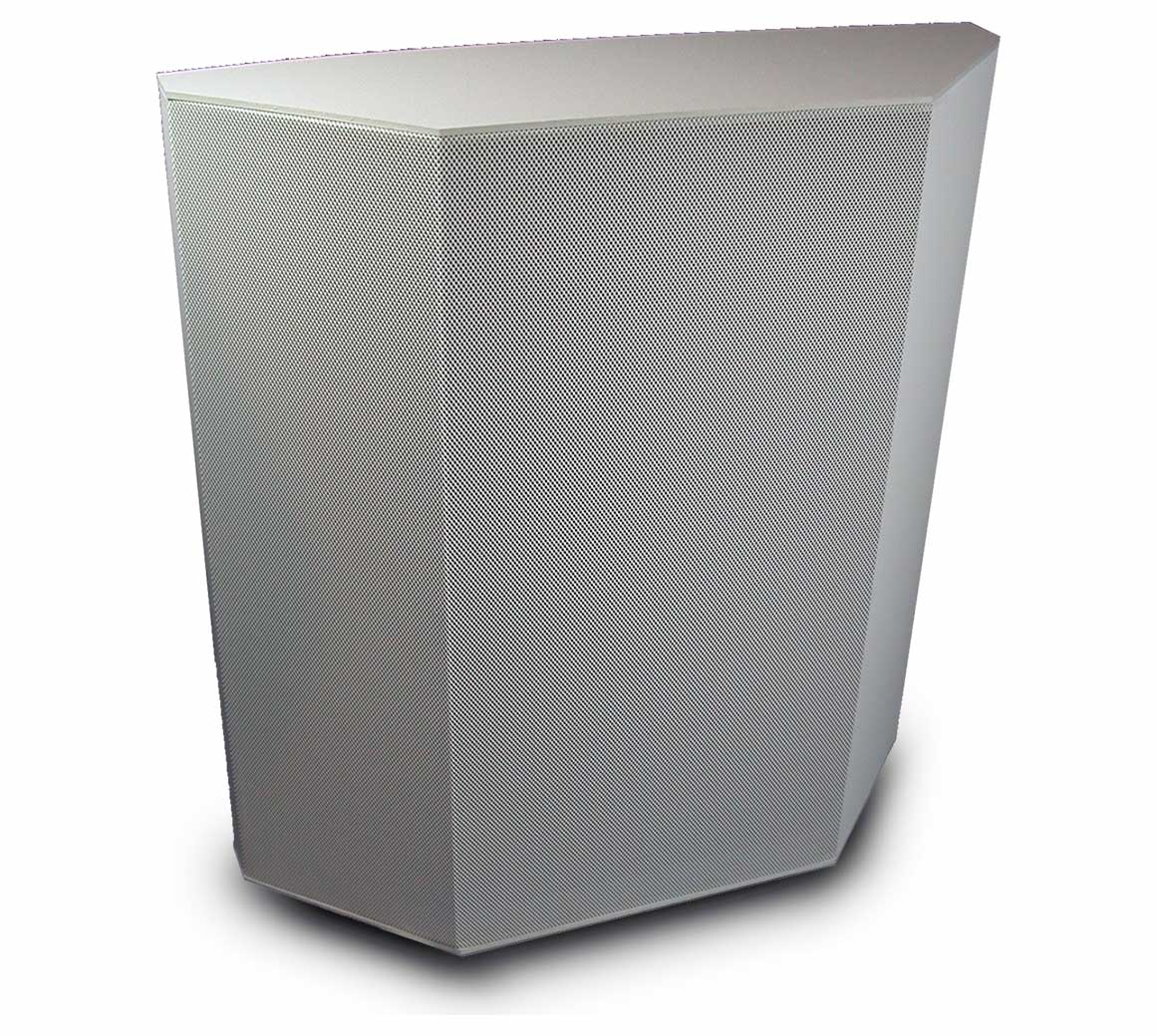

The McIntosh HT30-OW is designed as a surround sound loudspeaker in a home theater system. The HT30-OW offers a unique solution to the problem of integrating superb surround sound into a room with minimal visual impact. The removable metal grilles can be custom painted to perfectly match your decor. A sealed, solidly braced enclosure is used for superior sound and freedom from bleeding into adjacent rooms. Sold in pairs. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Impedance Nominal

  4 Ohms
- Power Rating

  200 Watts
- Frequency Response

  80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m

  83dB
- Crossover

  1kHz
Driver Specifications
- Number of Woofers

  1
- Woofer Size

  5-5/8"
- Woofer Type

  Cone Woofer
- Number of Midranges

  N/A
- Midrange Size

  N/A
- Midrange Type

  N/A
- Number of Tweeters

  2
- Tweeter Size

  2-3/4"
- Tweeter Type

  Polypropylene
General Specifications
- System Type

  On Wall
- Grille

  Neutral white metal
- Available Finishes

  Neutral white
Weights & Dimensions
- Unit Dimensions (W x H x D)

  14-3/16" (36cm) x 14-15/16" (37.78cm) x 4-1/16" (10.3cm)
- Unit Weight

  13 lbs (5.9 kg) (each)
- Shipping Weight

  30 lbs (13.65 kg) (pair)
Downloads
User Documents

HT30-OW On-wall and HT30-IW In-wall Loudspeaker Owner's Manual (6.99 MB)

Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)

User Documents
HT30-OW On-wall and HT30-IW In-wall Loudspeaker Owner's Manual (6.99 MB) Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)
