WS350 In-Wall Loudspeaker

Paintable Aluminum Grille
Deep Drawn Aluminum Back Enclosure

Eligible for online purchase?

5 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

WS350 In-Wall Loudspeaker

5 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

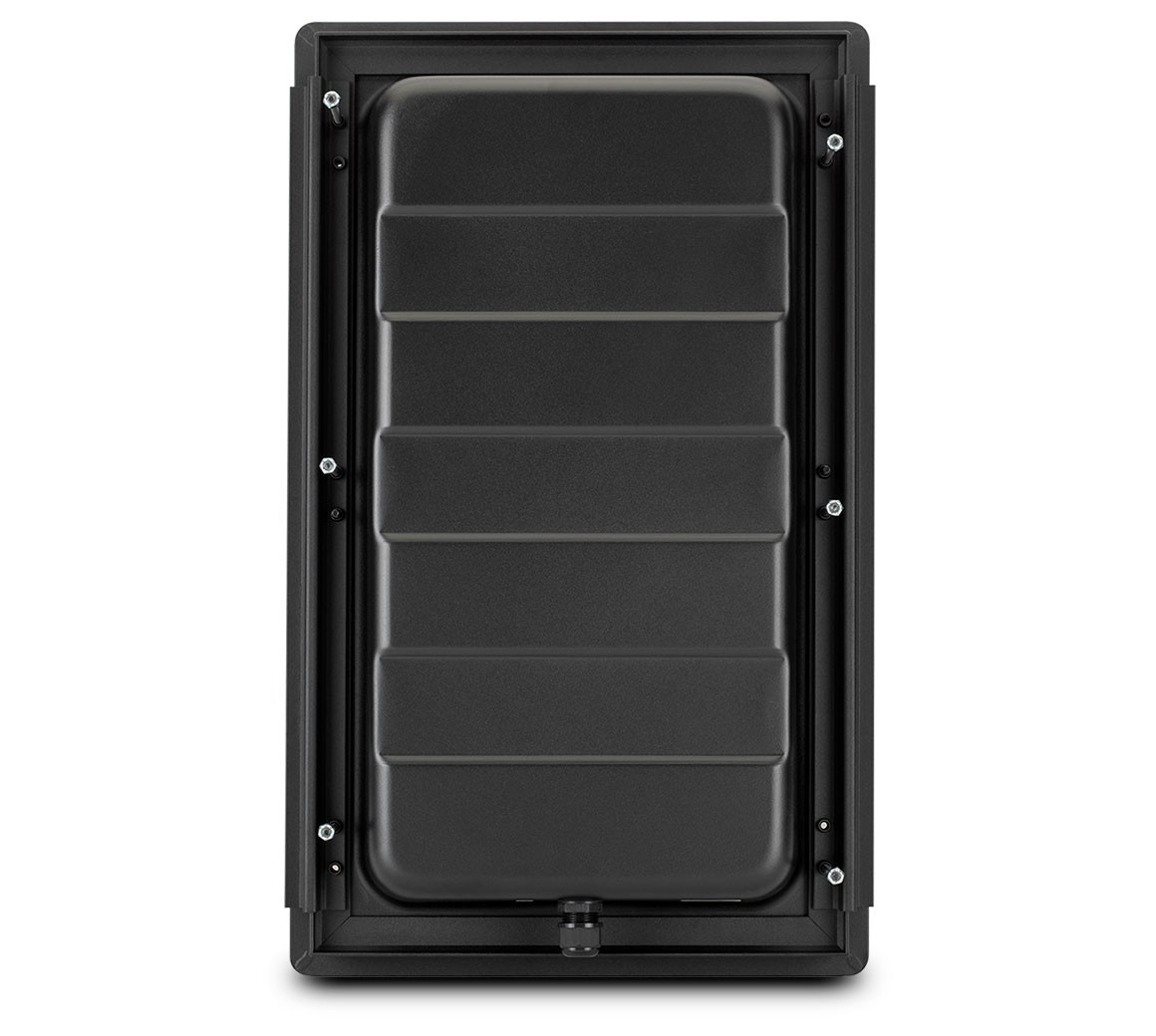

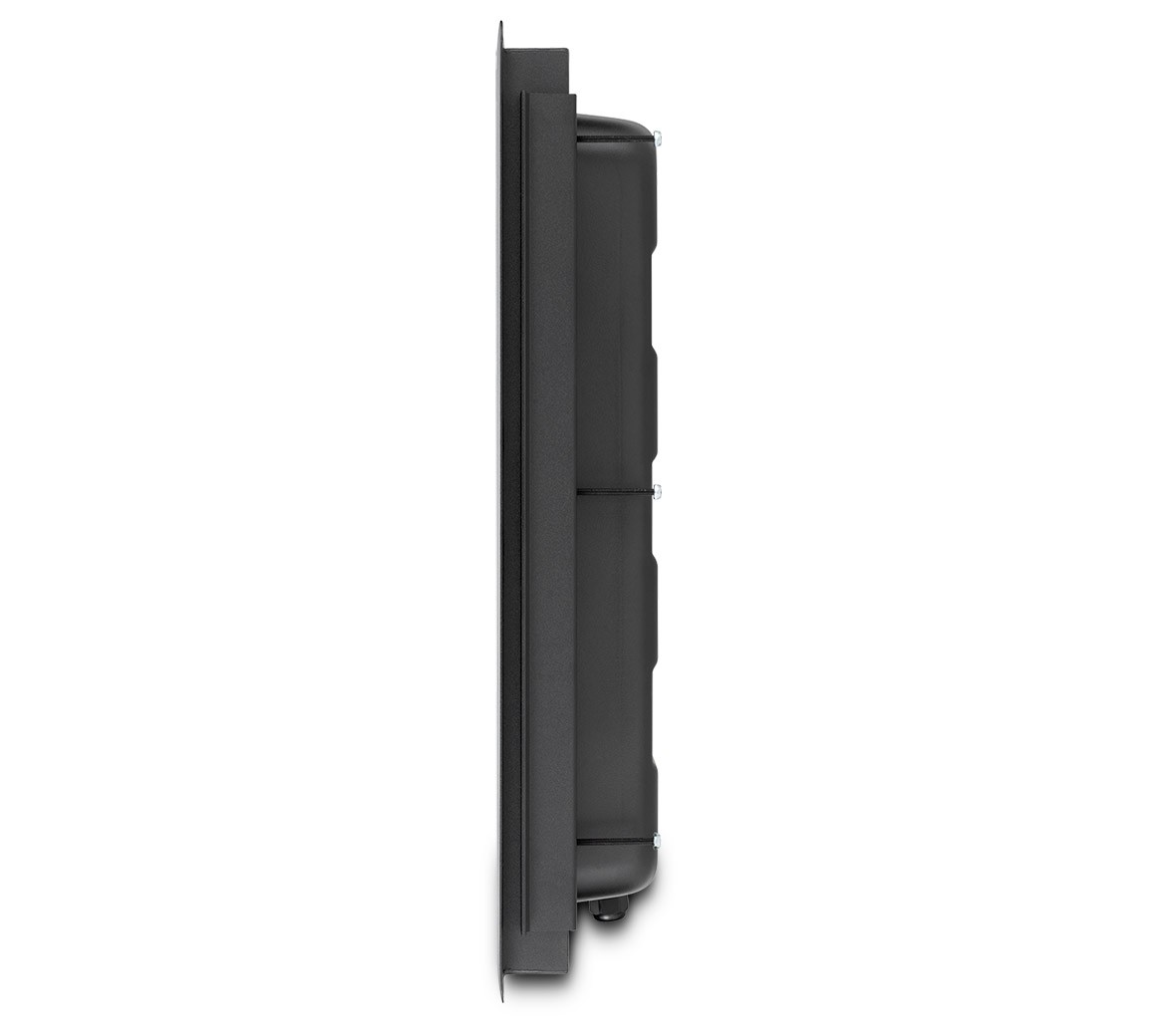

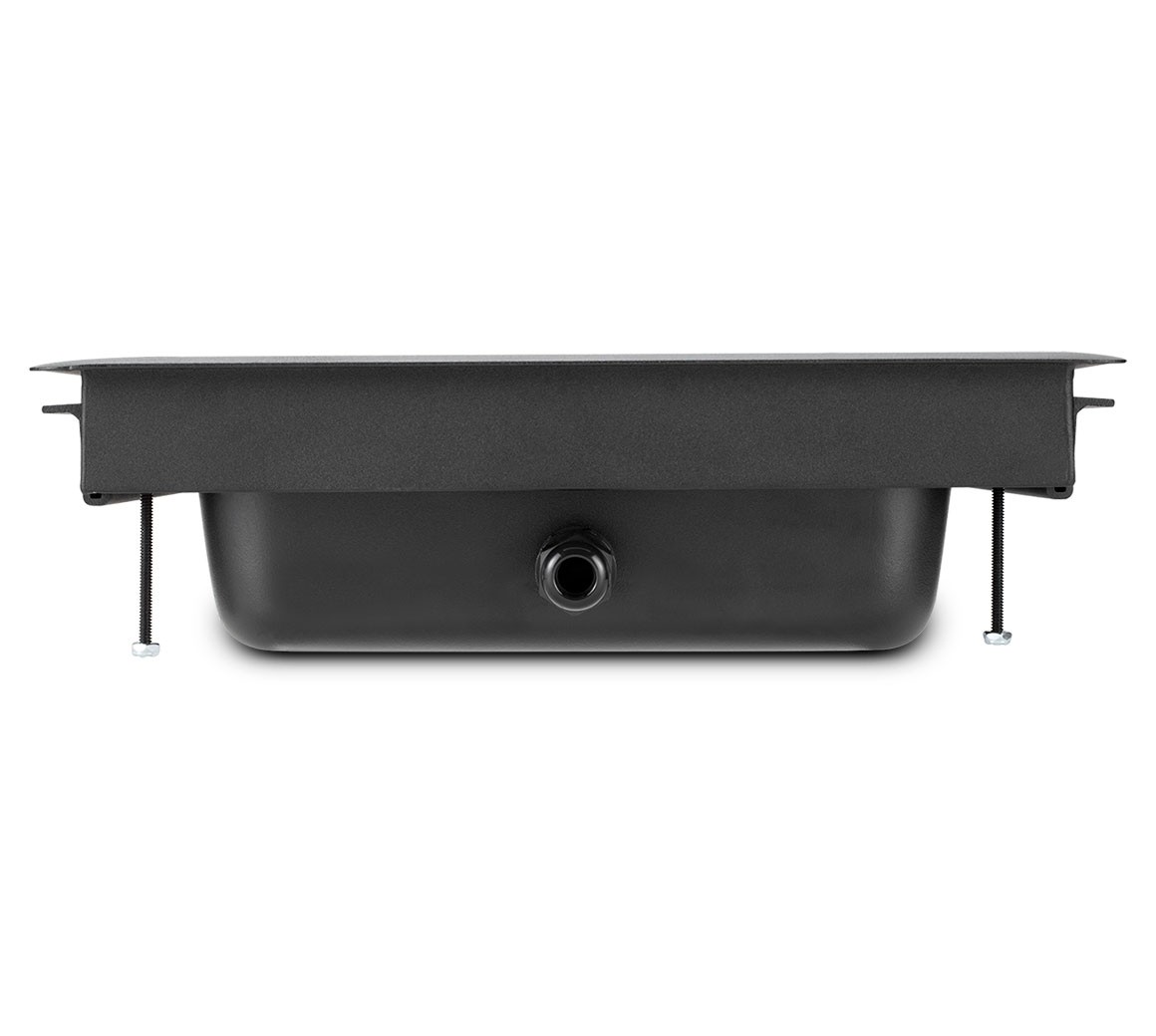

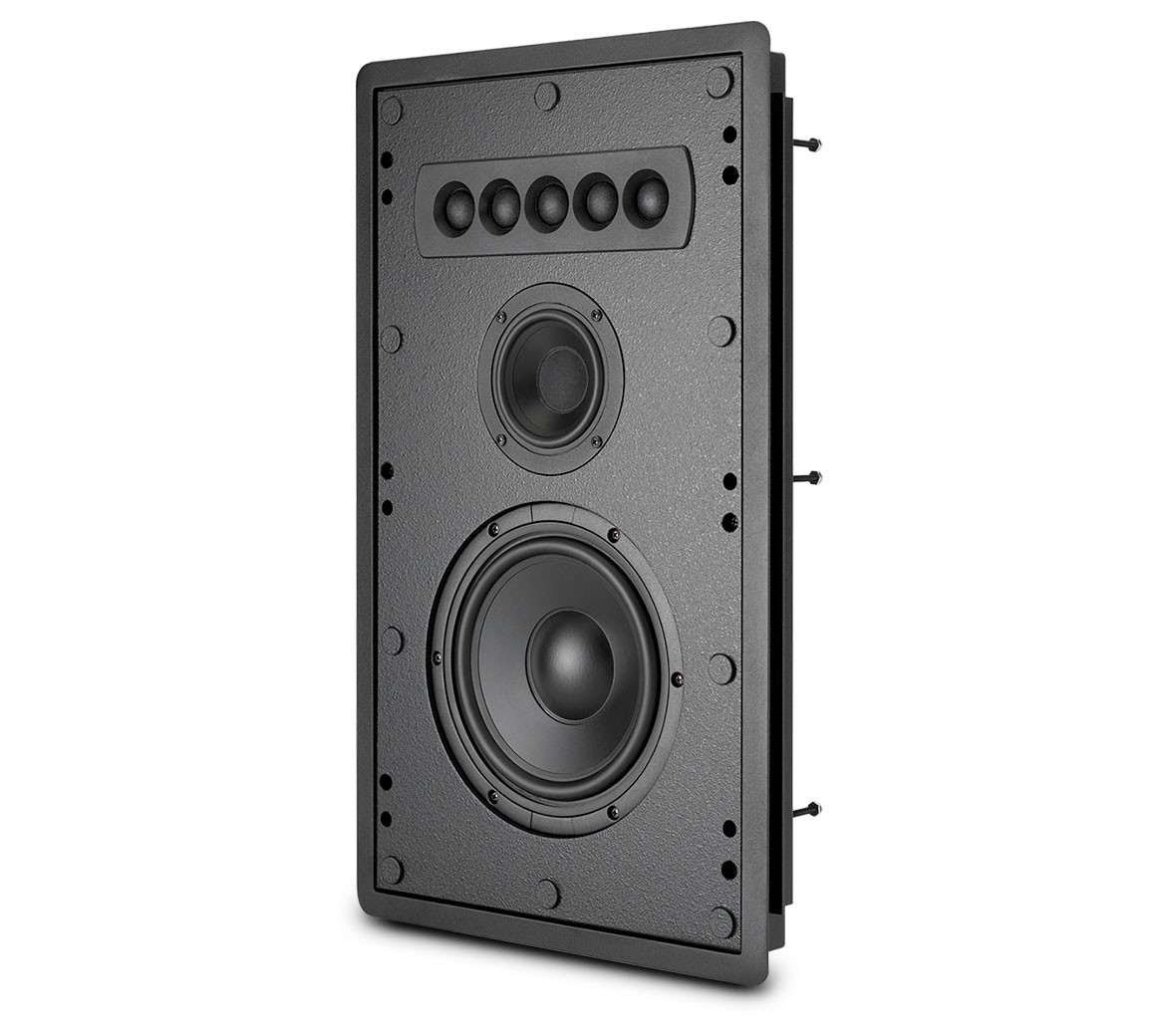

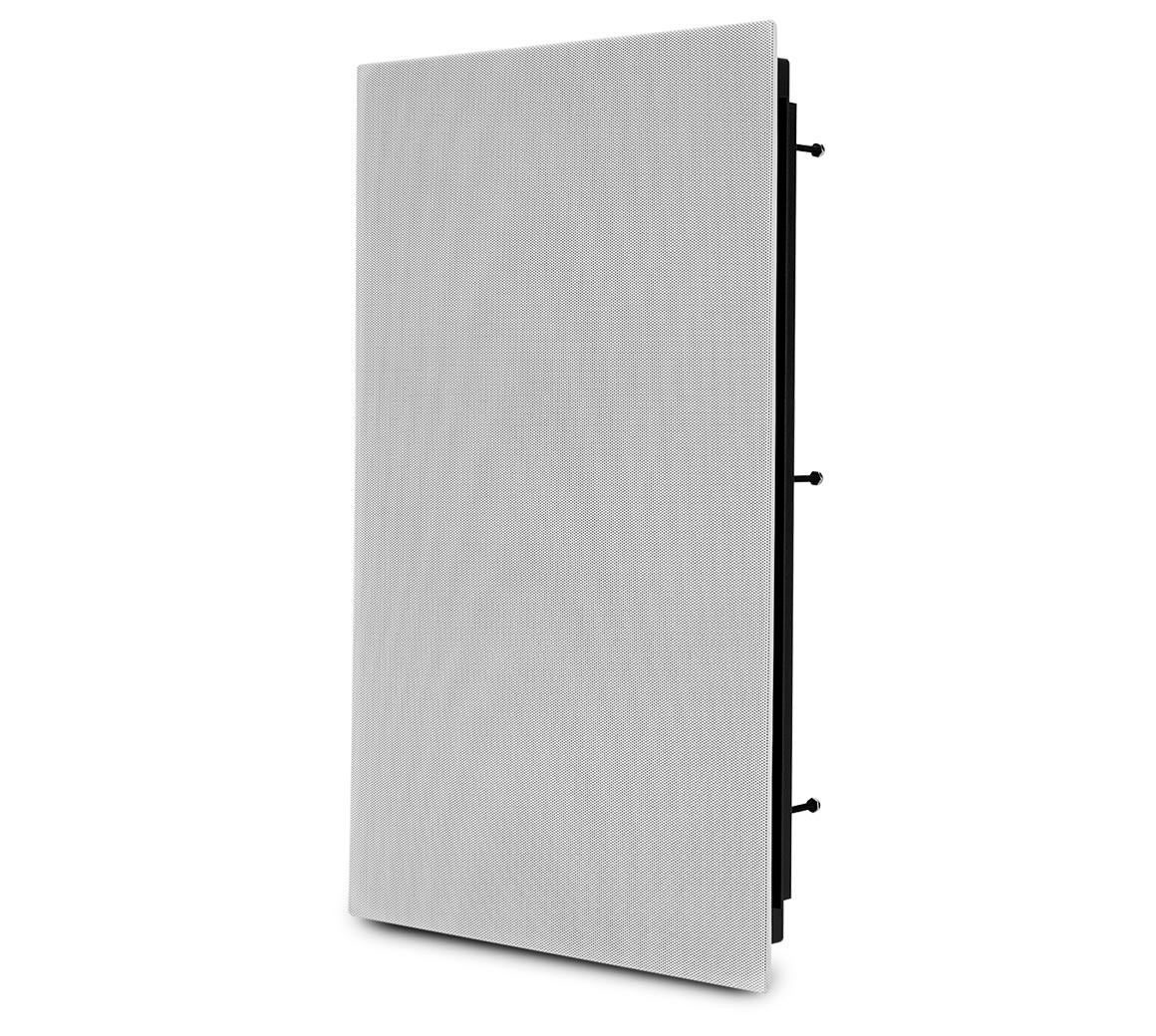

The key to the WS350 In-Wall Loudspeaker’s performance lies in the unique deep drawn aluminum back enclosure that houses the driver array. This design minimizes sound transmission into adjoining rooms, keeping the sound from escaping through the walls of the listening room and helping to deliver encompassing surround sound. The WS350 features one 8” woofer, one 4” midrange and five 1” tweeters. The black frame’s flanges can be painted to match your wall color. A white aluminum grille magnetically attaches to the frame and covers the entire speaker and frame; the grille can also be painted to match your wall color.

A wall cutout template and paint mask are included. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Impedance Nominal

  4 Ohms
- Power Rating

  200 Watts
- Frequency Response

  60Hz to 20kHz
- Sound Pressure Level, 2.8V/1m

  85dB
- Crossover

  300Hz, 1.5kHz
Driver Specifications
- Number of Woofers

  1
- Woofer Size

  8"
- Woofer Type

  LD/HP^® Poly Cone
- Number of Midranges

  1
- Midrange Size

  4"
- Midrange Type

  Poly Cone
- Number of Tweeters

  5
- Tweeter Size

  1"
- Tweeter Type

  Bessel Array
General Specifications
- System Type

  Sealed 3-Way In-Wall
- Grille

  Neutral white metal
- Available Finishes

  Neutral white
Weights & Dimensions
- Unit Dimensions (W x H x D)

  14" (35.5cm) x 23.5" (59.7cm) x 3.65" (9.3cm)
- Unit Weight

  25 lbs (11.3 kg)
- Shipping Weight

  32 lbs (14.5 kg)

Downloads

User Documents
WS350 In-Wall Loudspeaker Installation Guide (2.9 MB) Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)
