WS500 In-Wall Loudspeaker

Fully enclosed speaker that fits in 2x4 walls
Perfect for distributed audio or home theaters
Up to 250 Watt Power Rating

Eligible for online purchase?

5 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

WS500 In-Wall Loudspeaker

5 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers

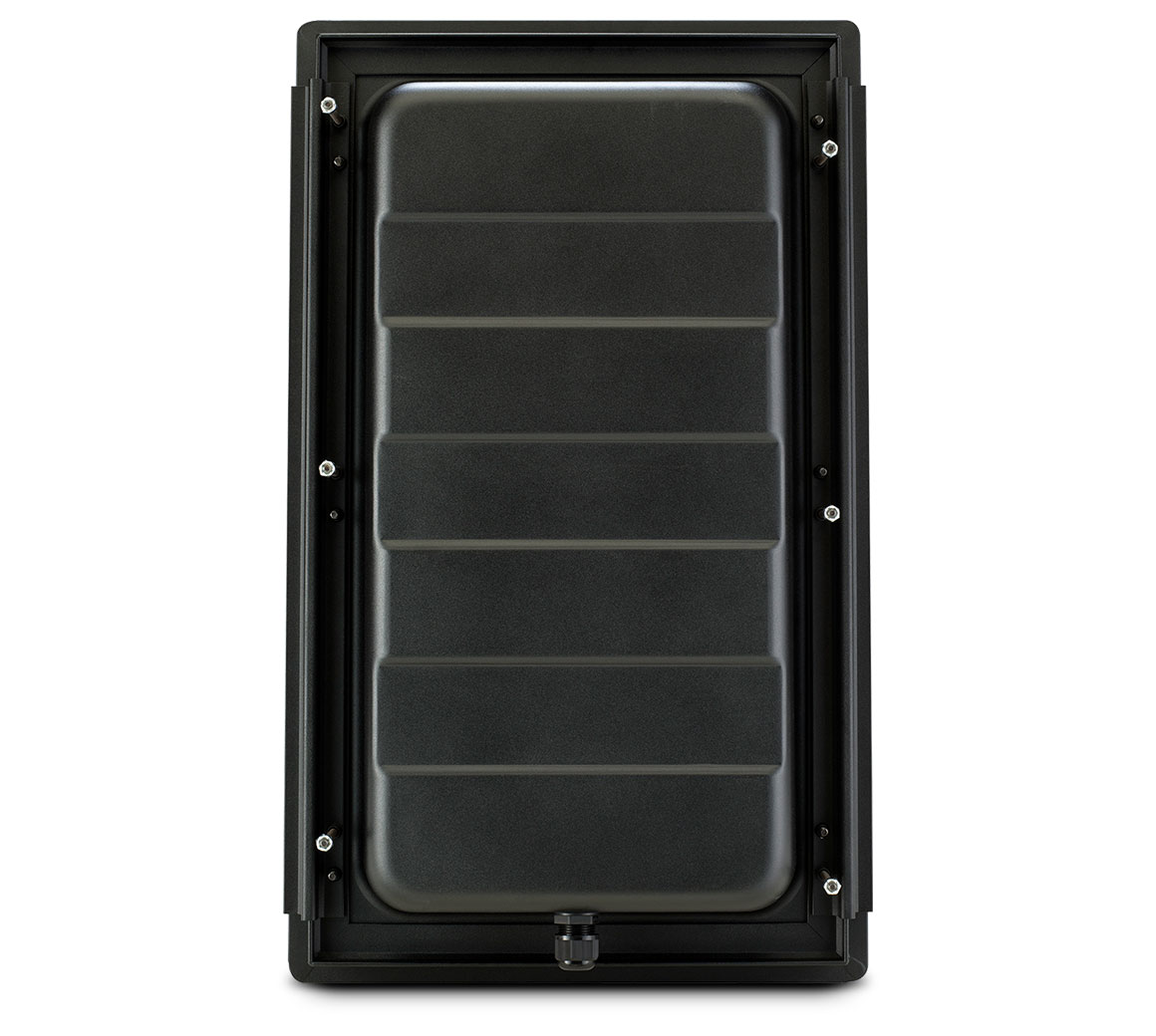

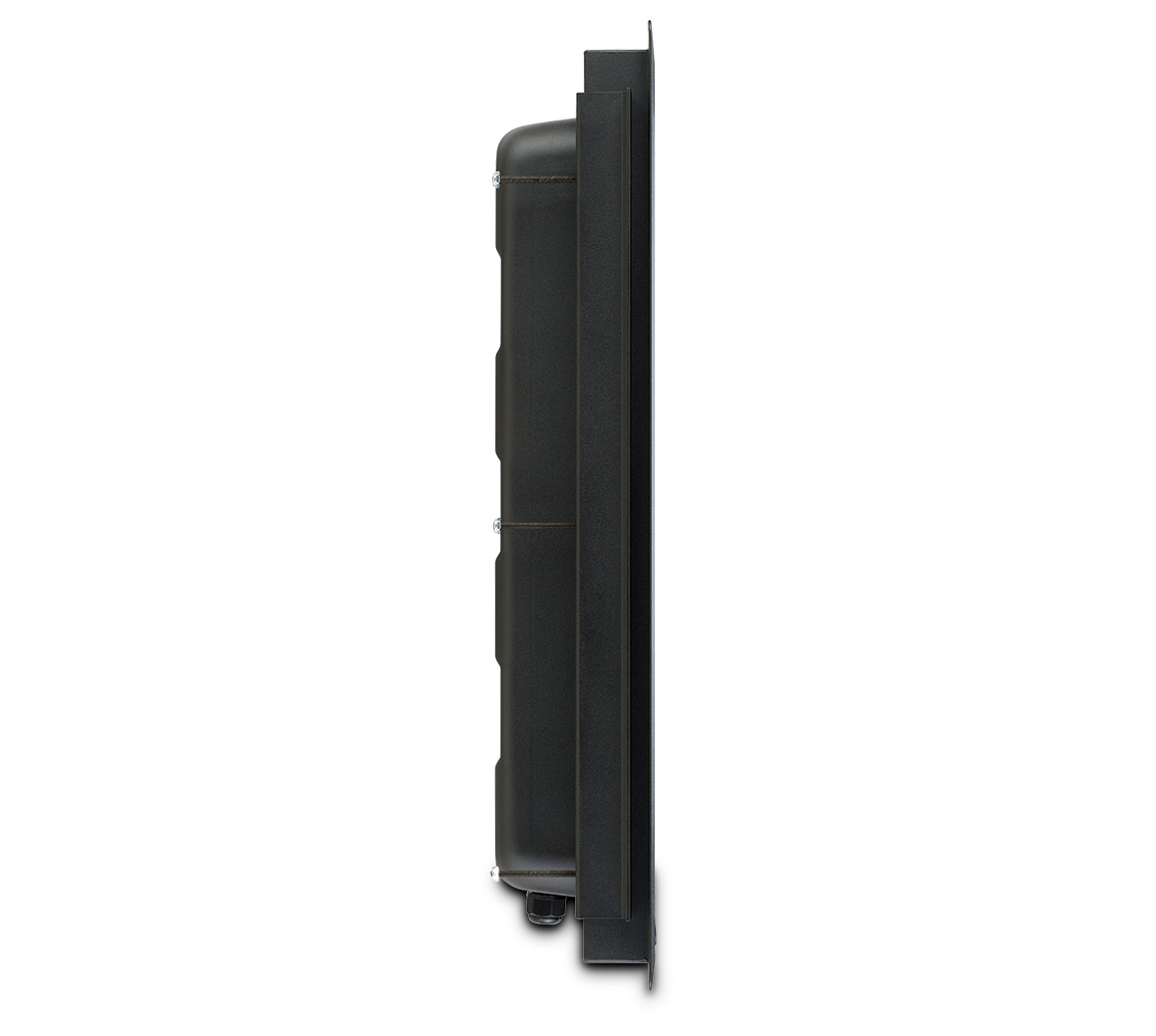

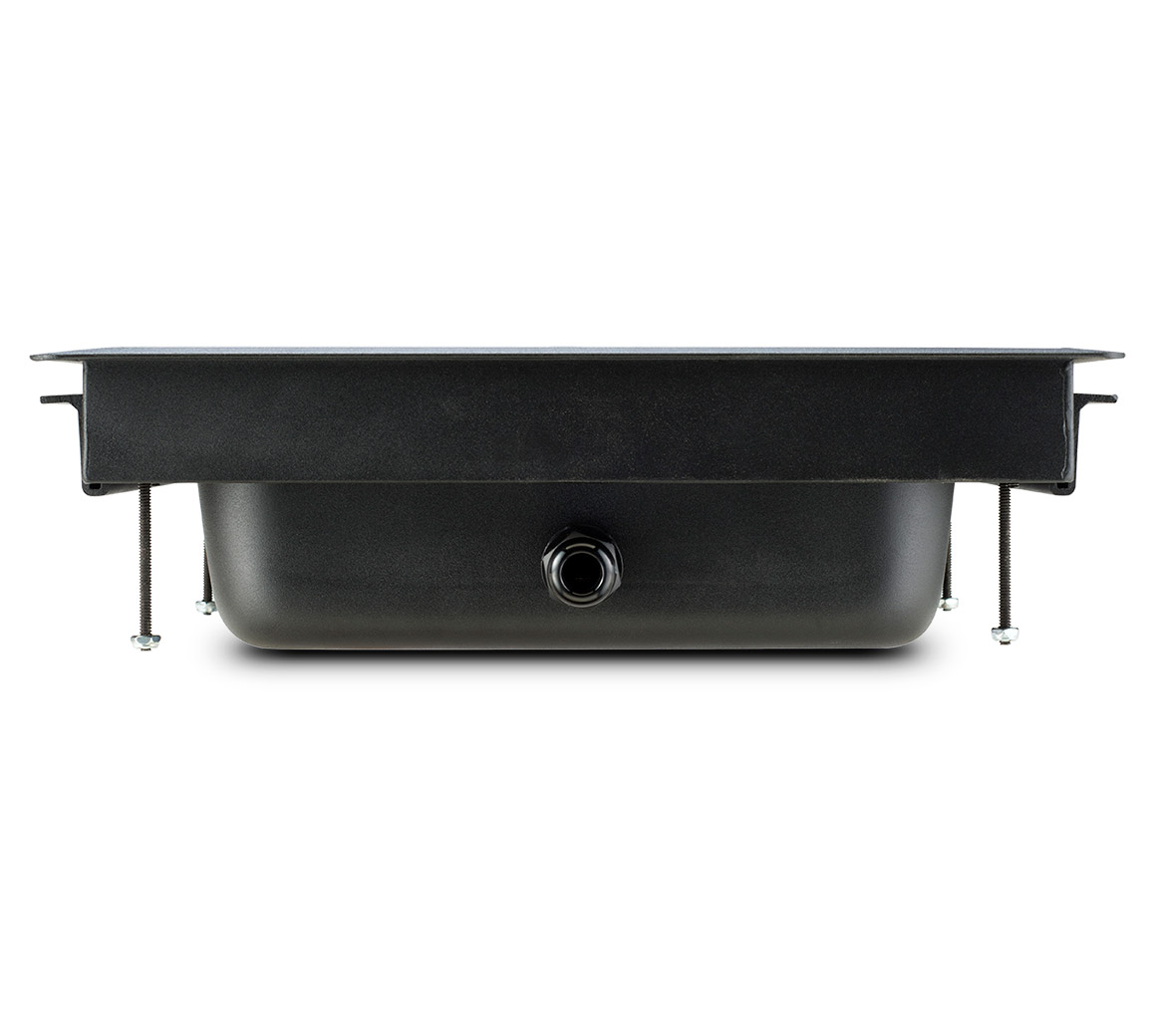

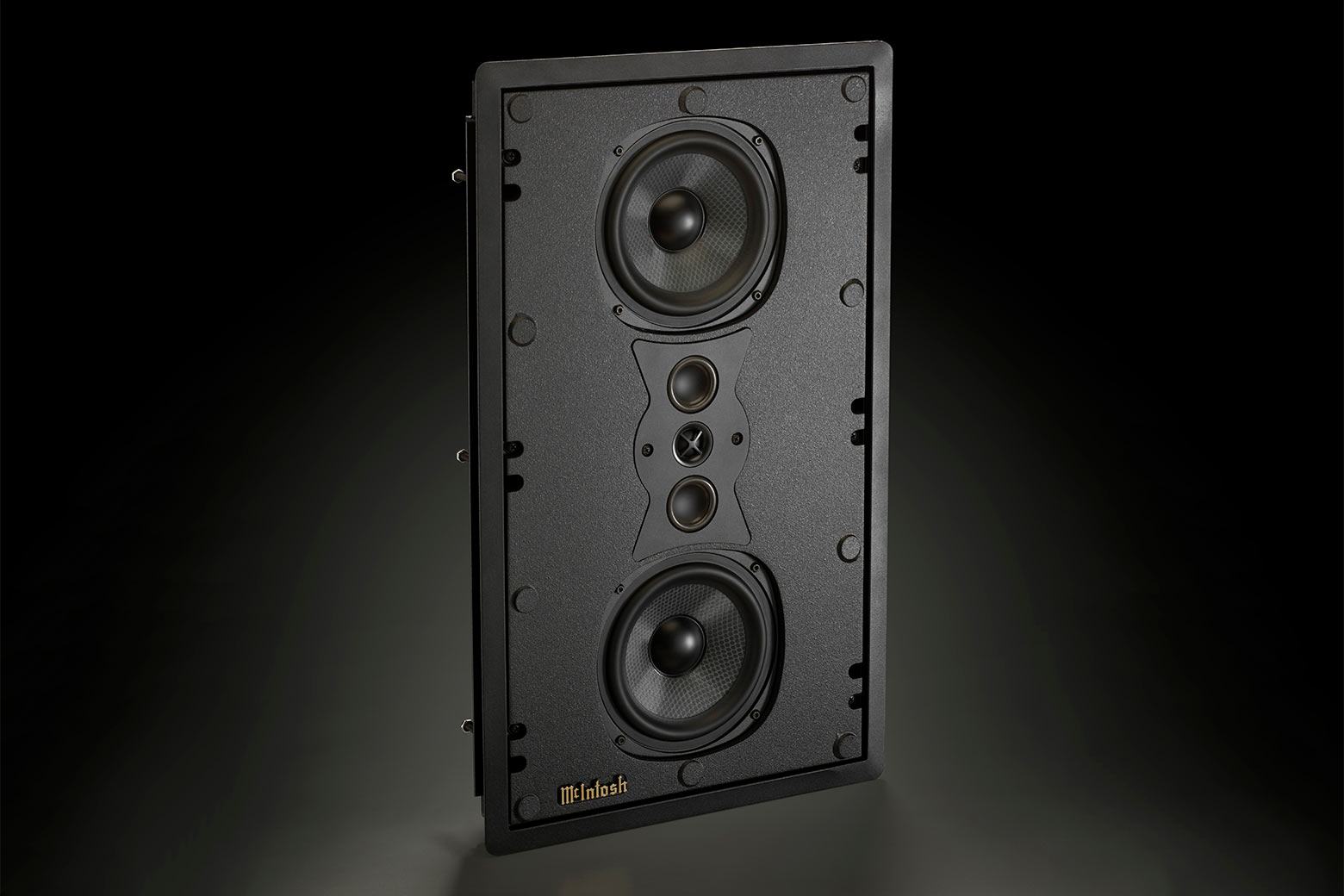

The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

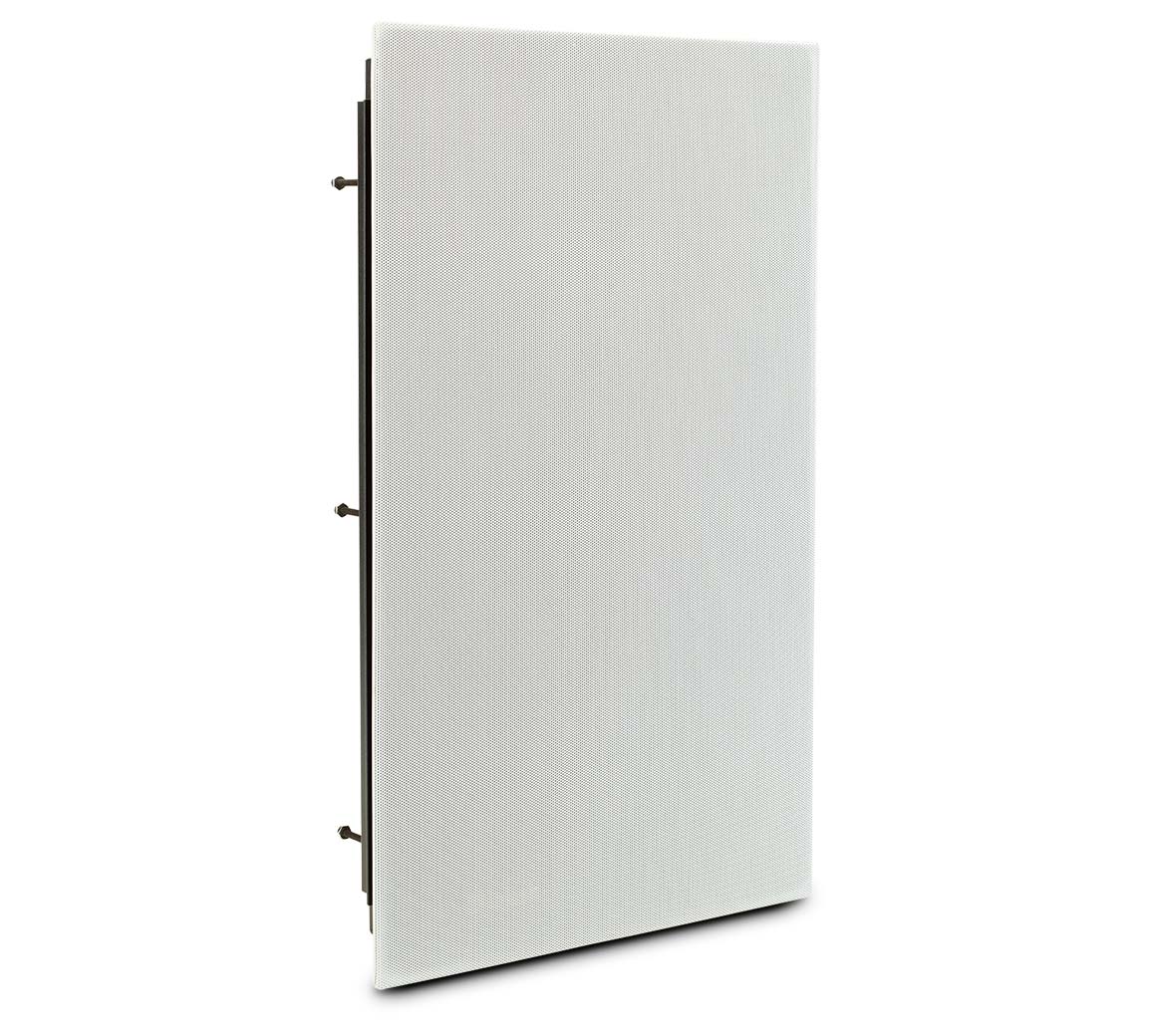

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Impedance Nominal

  4 Ohms
- Power Rating

  Up to 250 Watts
- Frequency Response

  80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m

  86dB
- Crossover

  350Hz, 2,500Hz
Driver Specifications
- Number of Woofers

  2
- Woofer Size

  6.5"
- Woofer Type

  Woven Glass Fiber
- Number of Midranges

  2
- Midrange Size

  2"
- Midrange Type

  Inverted Titanium Dome
- Number of Tweeters

  1
- Tweeter Size

  3/4"
- Tweeter Type

  Titanium Dome
General Specifications
- System Type

  3-Way In-Wall
- Grille

  Magnetic metal mesh
- Available Finishes

  Black chassis with white paintable grille
Weights & Dimensions
- Unit Dimensions (W x H x D)

  14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
- Unit Weight

  24 lbs (10.9 kg)
- Shipping Weight

  29 lbs (14.1 kg)

Downloads

Product Literature	User Documents
WS500 and WS300 In-Wall Loudspeaker Brochure (1.6 MB)	WS500 In-Wall Loudspeaker Installation Guide (4.68 MB) RK500 Rough-In Kit Installation Guide (for use with WS500 In-Wall Loudspeaker) (0.5 MB)

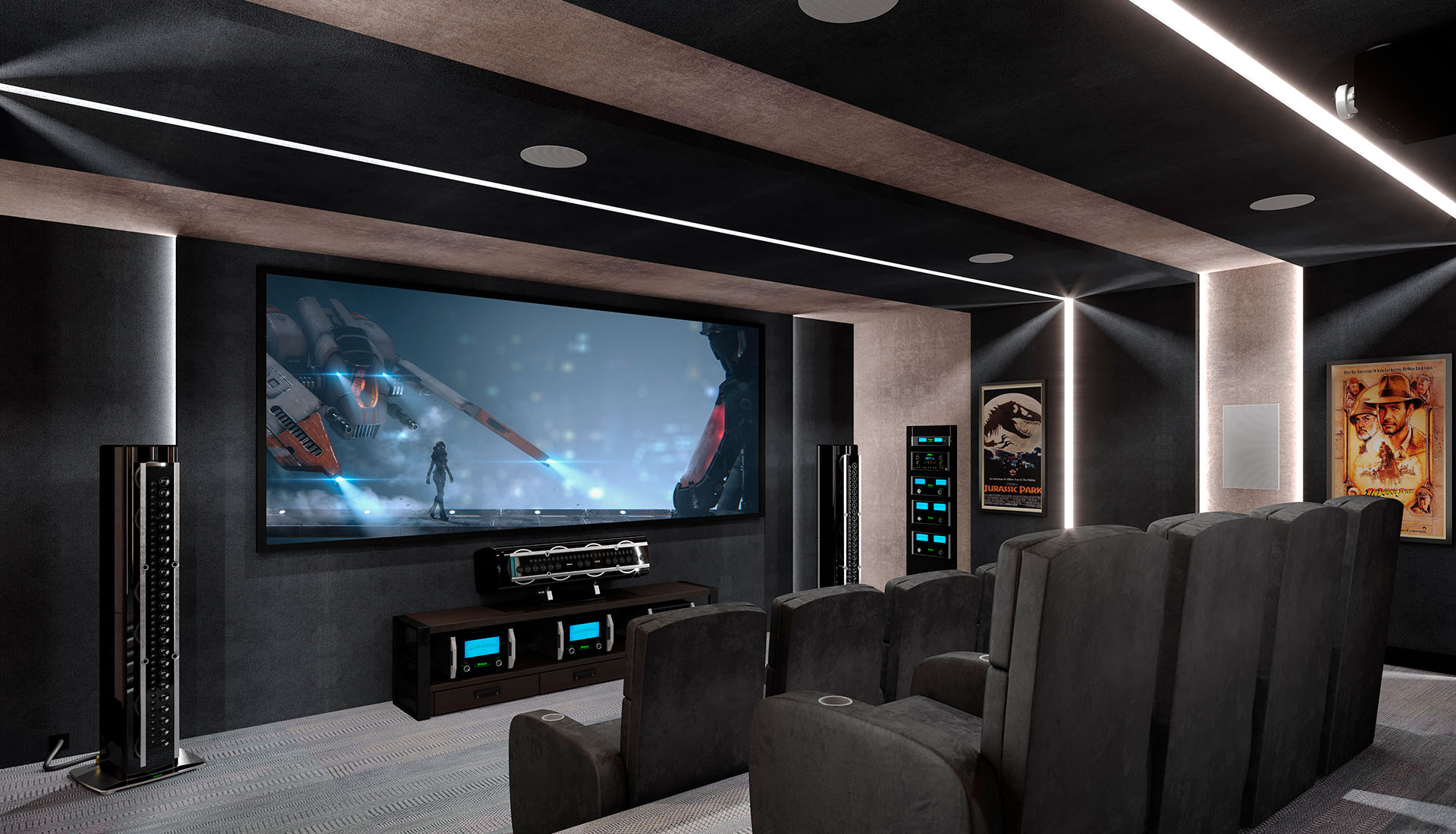

McIntosh Westchester IV home theater system

WS500 In-Wall Loudspeaker is also part of the Westchester IV Home Theater System
