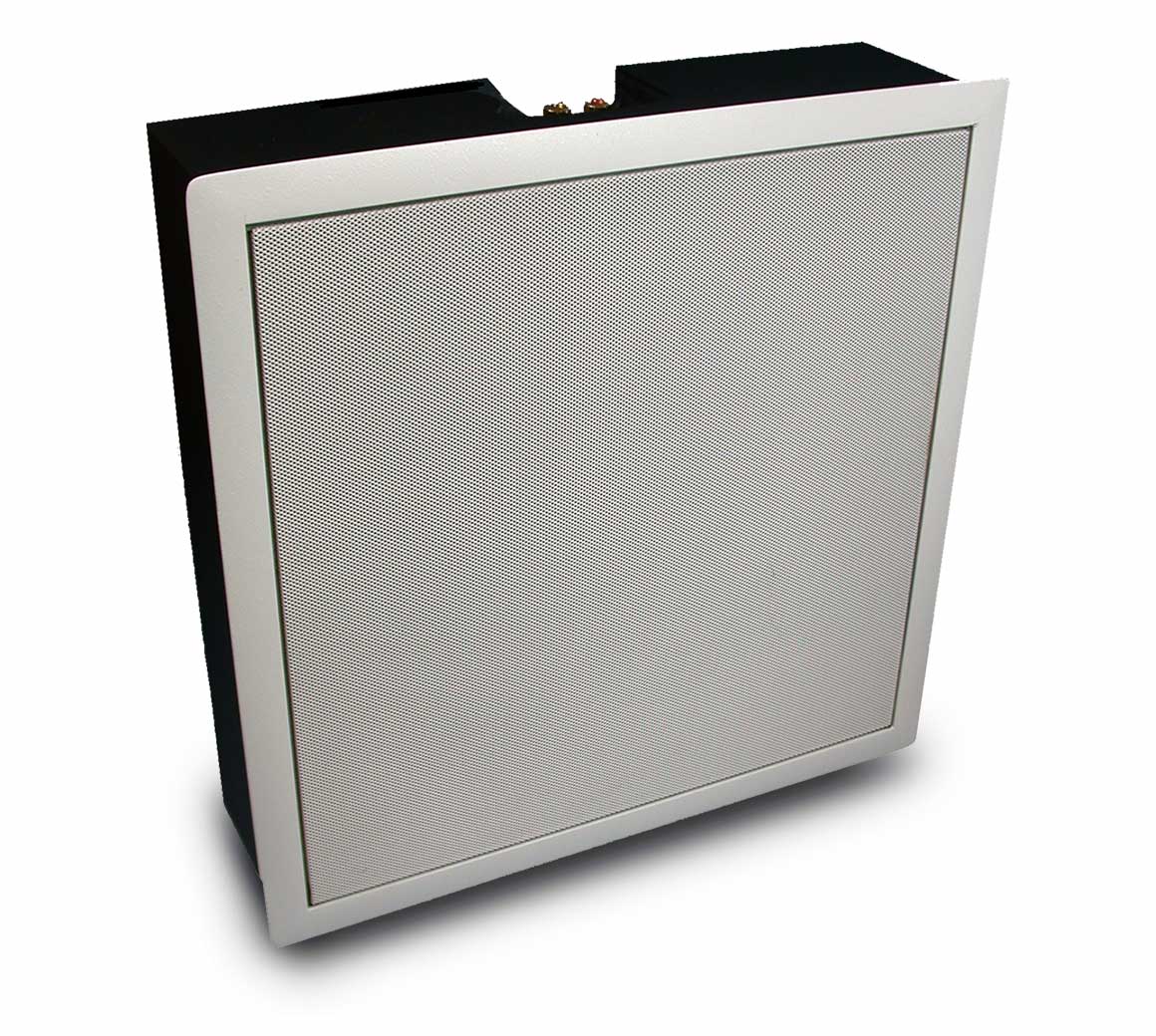

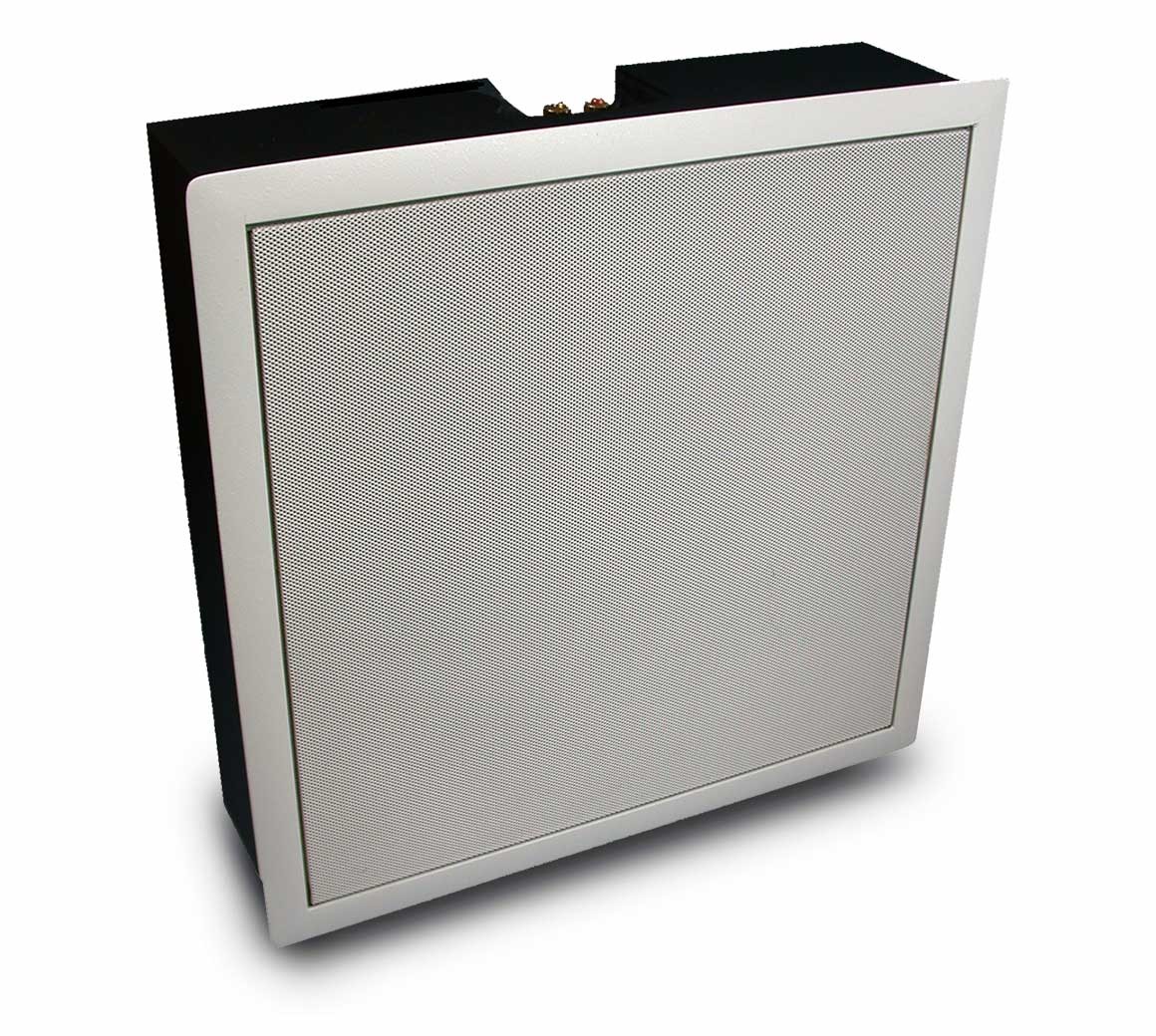

The McIntosh HT30-IW is designed as a surround sound loudspeaker in a home theater system. The HT30-IW offers a unique solution to the problem of integrating superb surround sound into a room with minimal visual impact. The removable metal grilles can be custom painted to perfectly match your decor. A sealed, solidly braced enclosure is used for superior sound and freedom from bleeding into adjacent rooms. Sold in pairs. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Impedance Nominal

  4 Ohms
- Power Rating

  200 Watts
- Frequency Response

  80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m

  83dB
- Crossover

  1kHz
Driver Specifications
- Number of Woofers

  1
- Woofer Size

  5-5/8"
- Woofer Type

  Cone Woofer
- Number of Midranges

  N/A
- Midrange Size

  N/A
- Midrange Type

  N/A
- Number of Tweeters

  2
- Tweeter Size

  2-3/4"
- Tweeter Type

  Polypropylene
General Specifications
- System Type

  In Wall
- Grille

  Neutral white metal
- Available Finishes

  Neutral white
Weights & Dimensions
- Unit Dimensions (W x H x D)

  14-1/4" (36.12cm) x 14-1/4" (36.12cm) x 4" (10.16cm)
- Unit Weight

  12 lbs (5.44 kg) (each)
- Shipping Weight

  32 lbs (14.51 kg) (pair)
Downloads
User Documents

HT30-OW On-wall and HT30-IW In-wall Loudspeaker Owner's Manual (6.99 MB)

Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)

User Documents
HT30-OW On-wall and HT30-IW In-wall Loudspeaker Owner's Manual (6.99 MB) Important Additional Operation Information Guide - Preventing Hearing Damage (4.58 MB)

More from Speakers

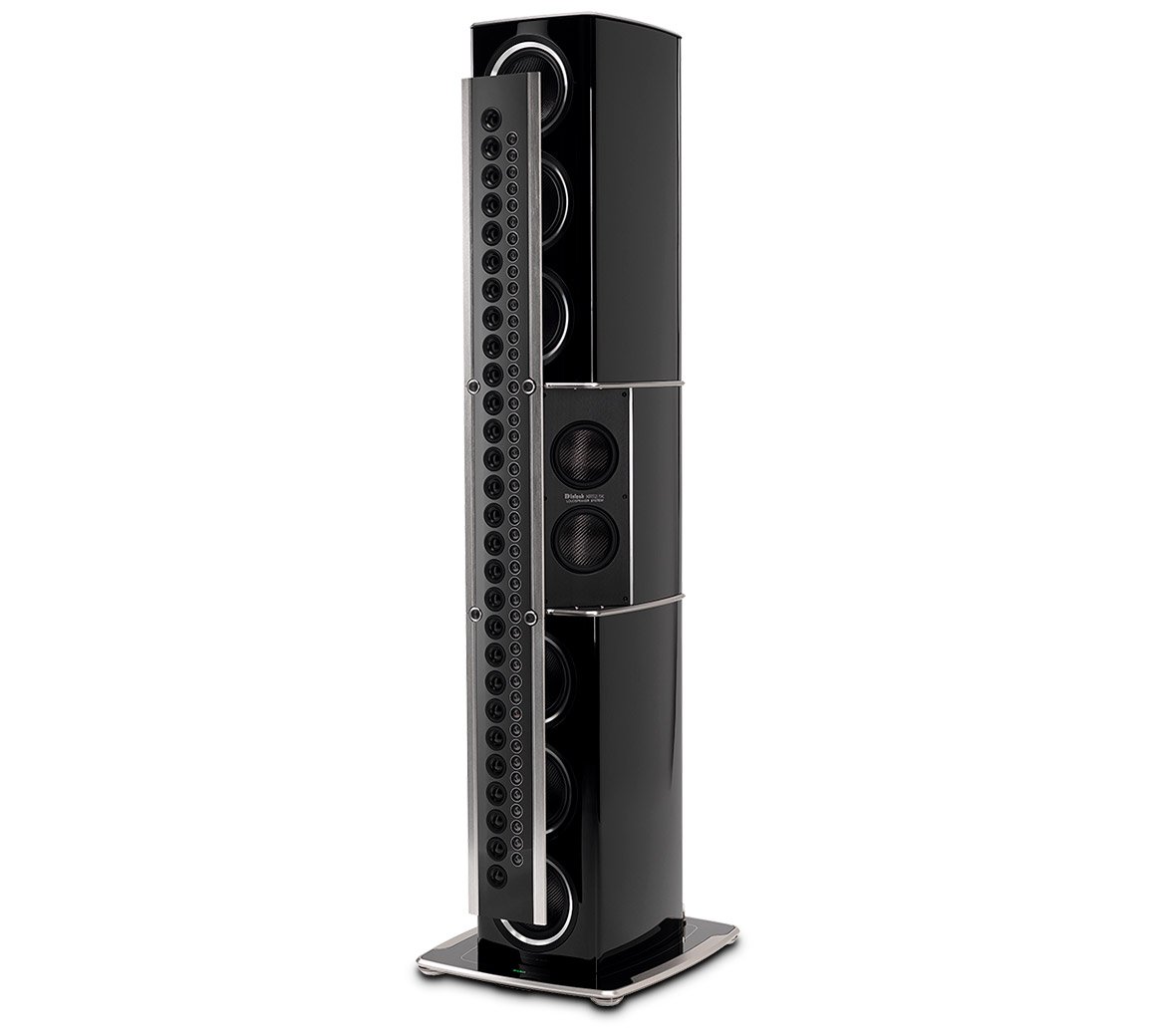

XRT2.1K

Floor Standing Loudspeaker
- 2,000 Watt power rating
- Ported 4-Way; Tri-amp & Tri-wire
- Line Array design with 81 drivers

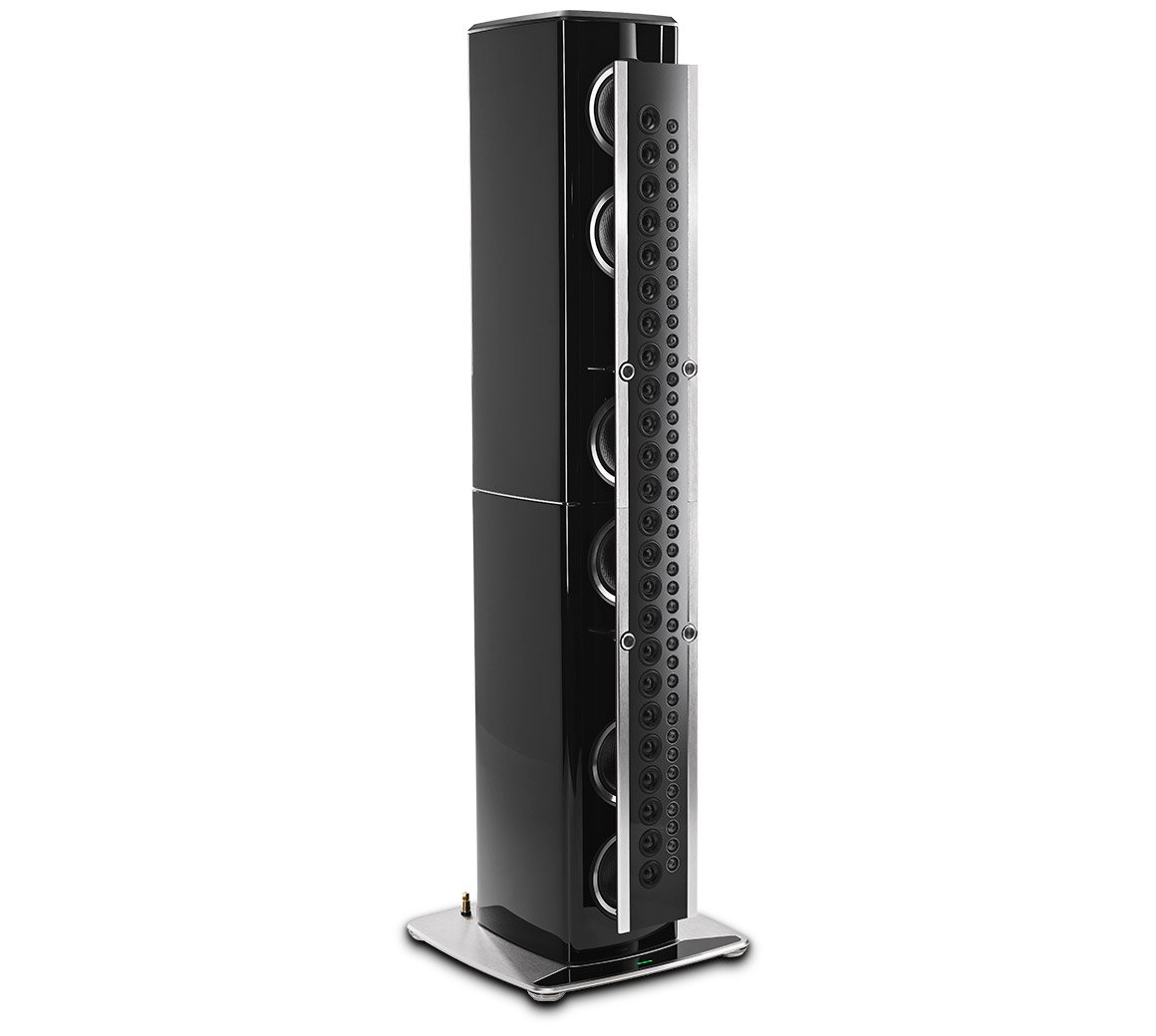

XRT1.1K

Floor Standing Loudspeaker
- 1,200 Watt power rating
- Ported 4-Way; Tri-amp & Tri-wire
- Line Array design with 70 drivers

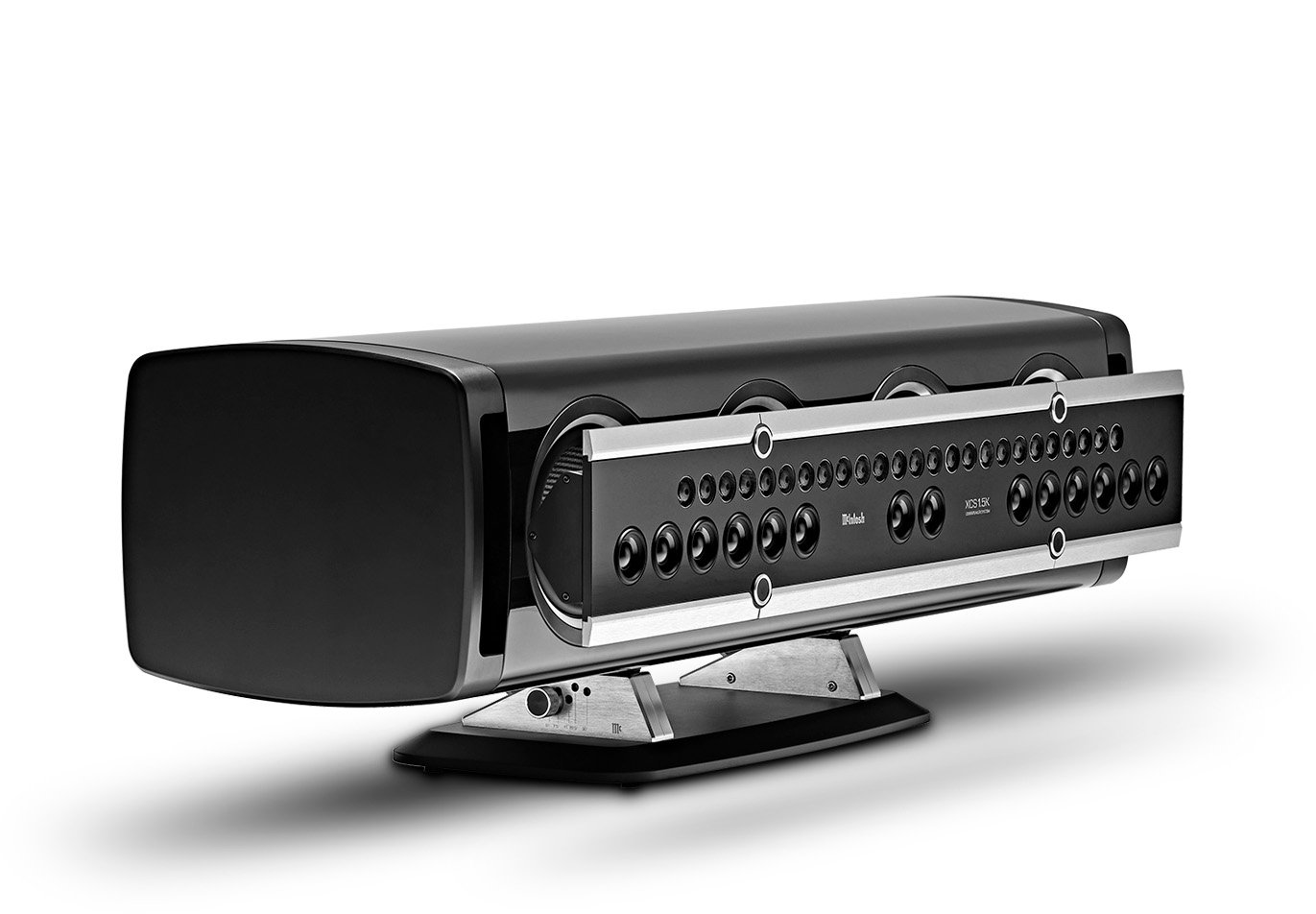

XCS1.5K

Center Channel Loudspeaker
- 1,500 Watt power rating
- Ported 3- and 4-Way Hybrid Design; Tri-amp & Tri-wire
- Voiced to match XRT2.1K and XRT1.1K
- Line Array design with 43 drivers

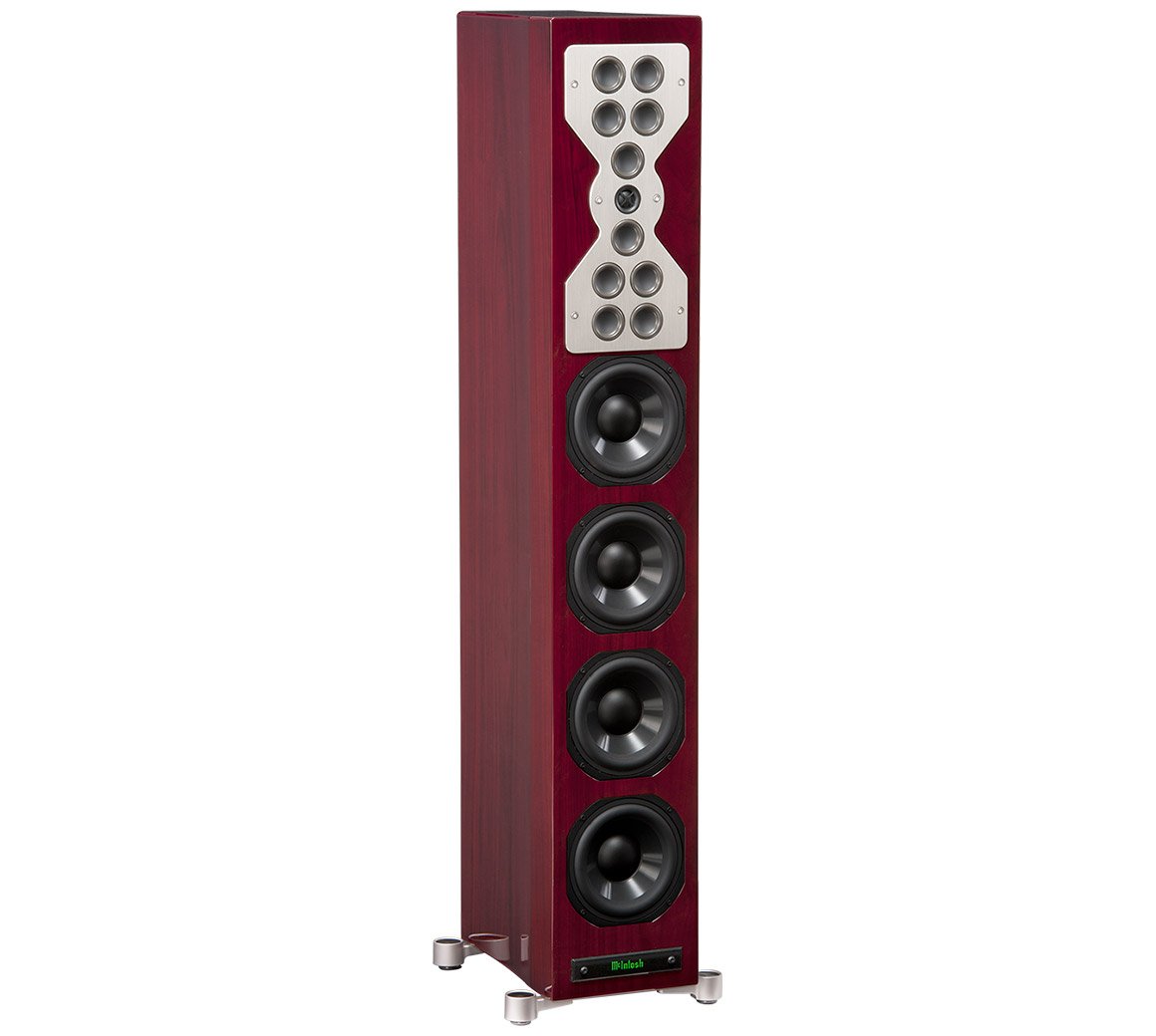

XR100

Floor Standing Loudspeaker
- 75 to 600 Watts
- Ported 4-Way Floor Standing

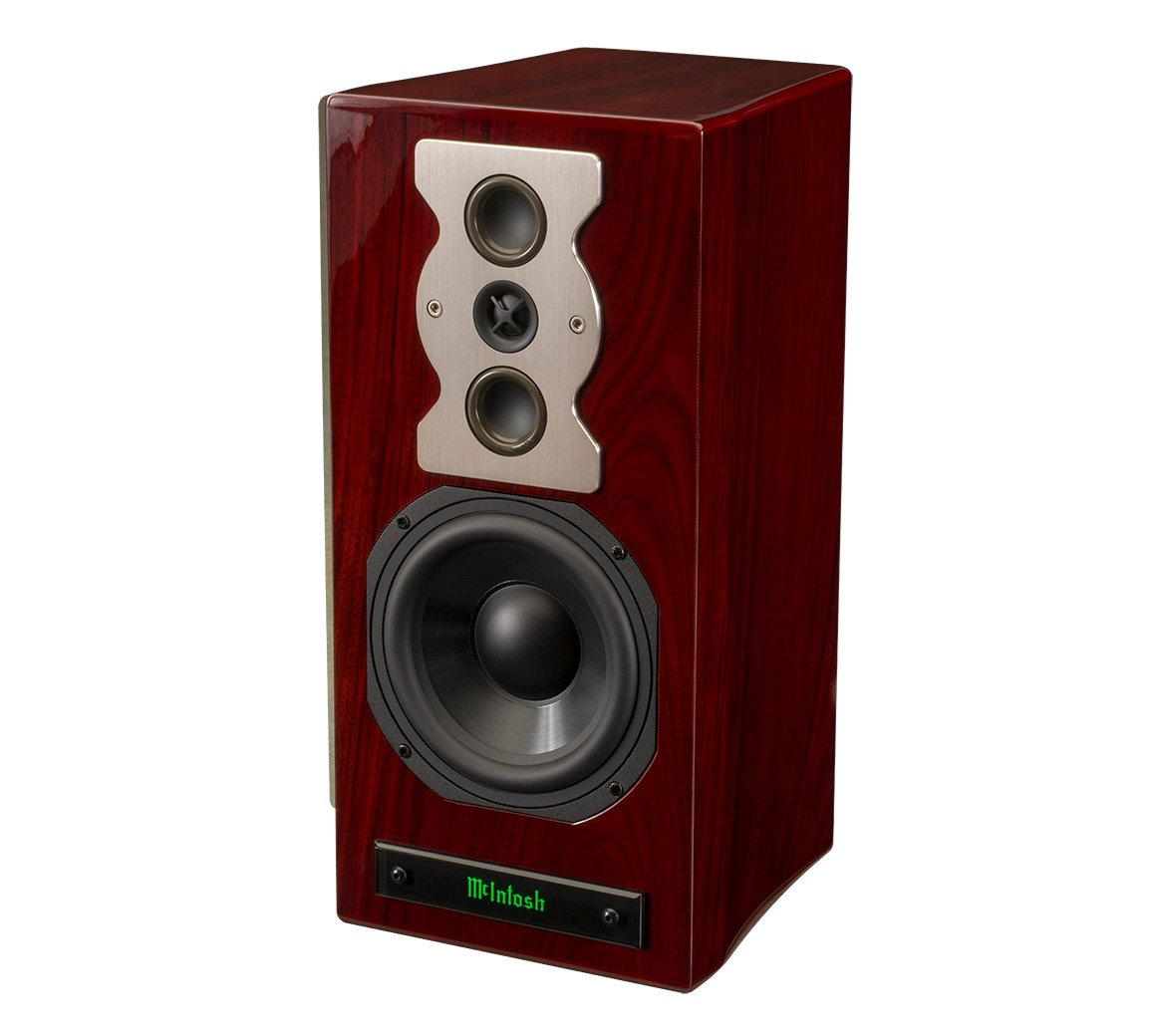

XR50

Bookshelf Loudspeaker
- Ported 3-Way Bookshelf
- 75 to 300 Watts power rating

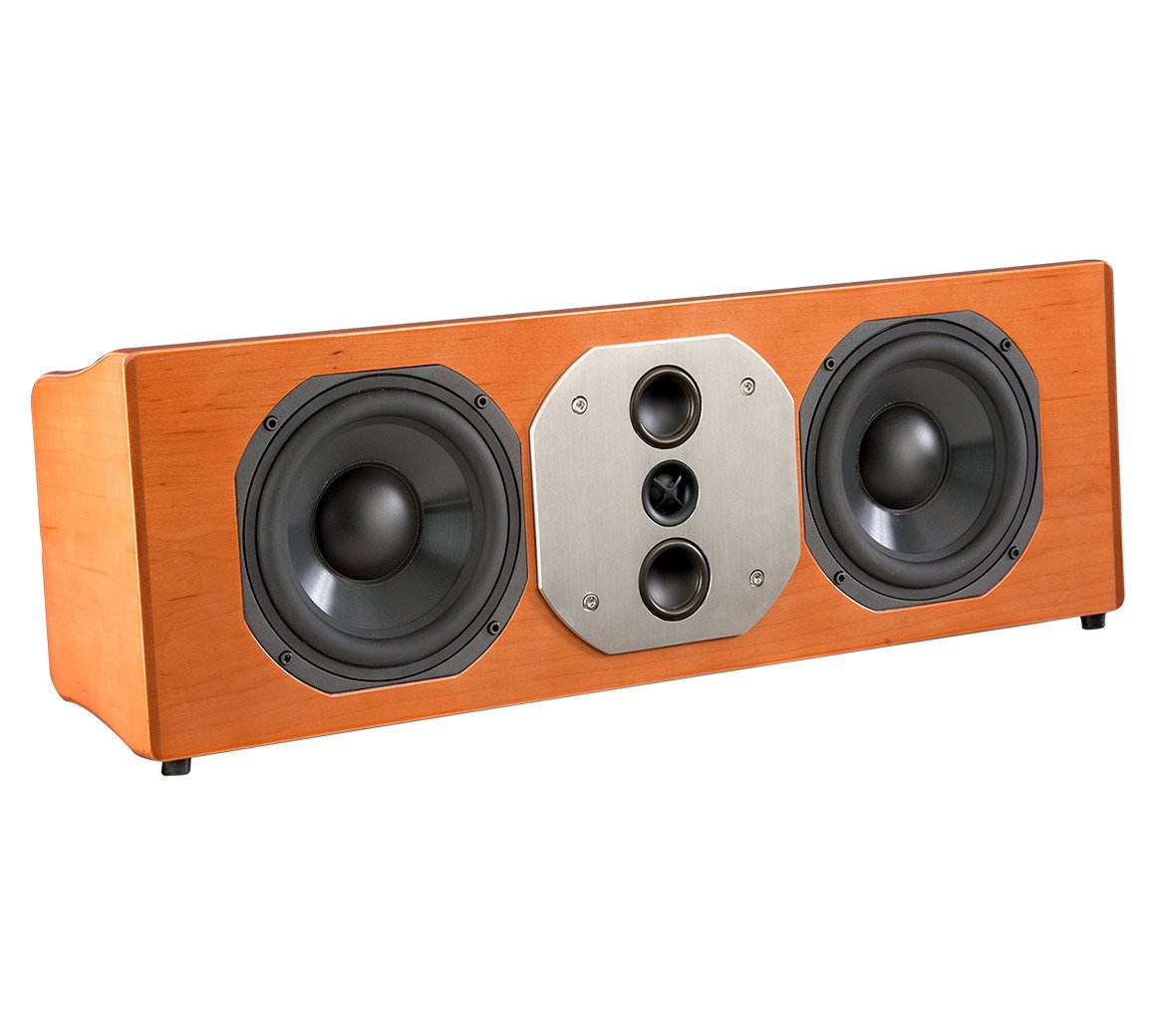

LCR80

LCR Loudspeaker
- Sealed 3-Way Flexible Placement
- 75 to 300 Watts Power Rating

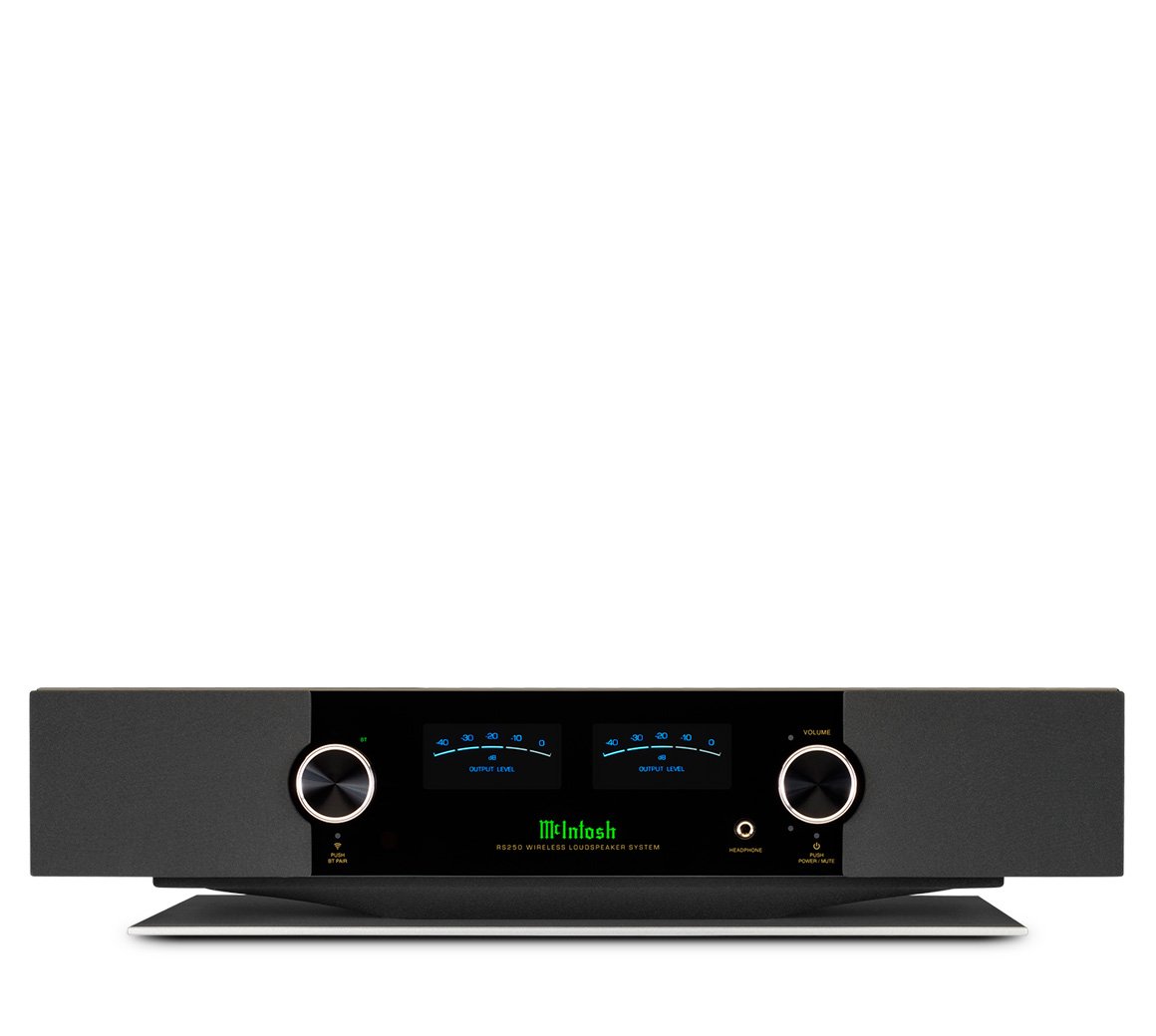

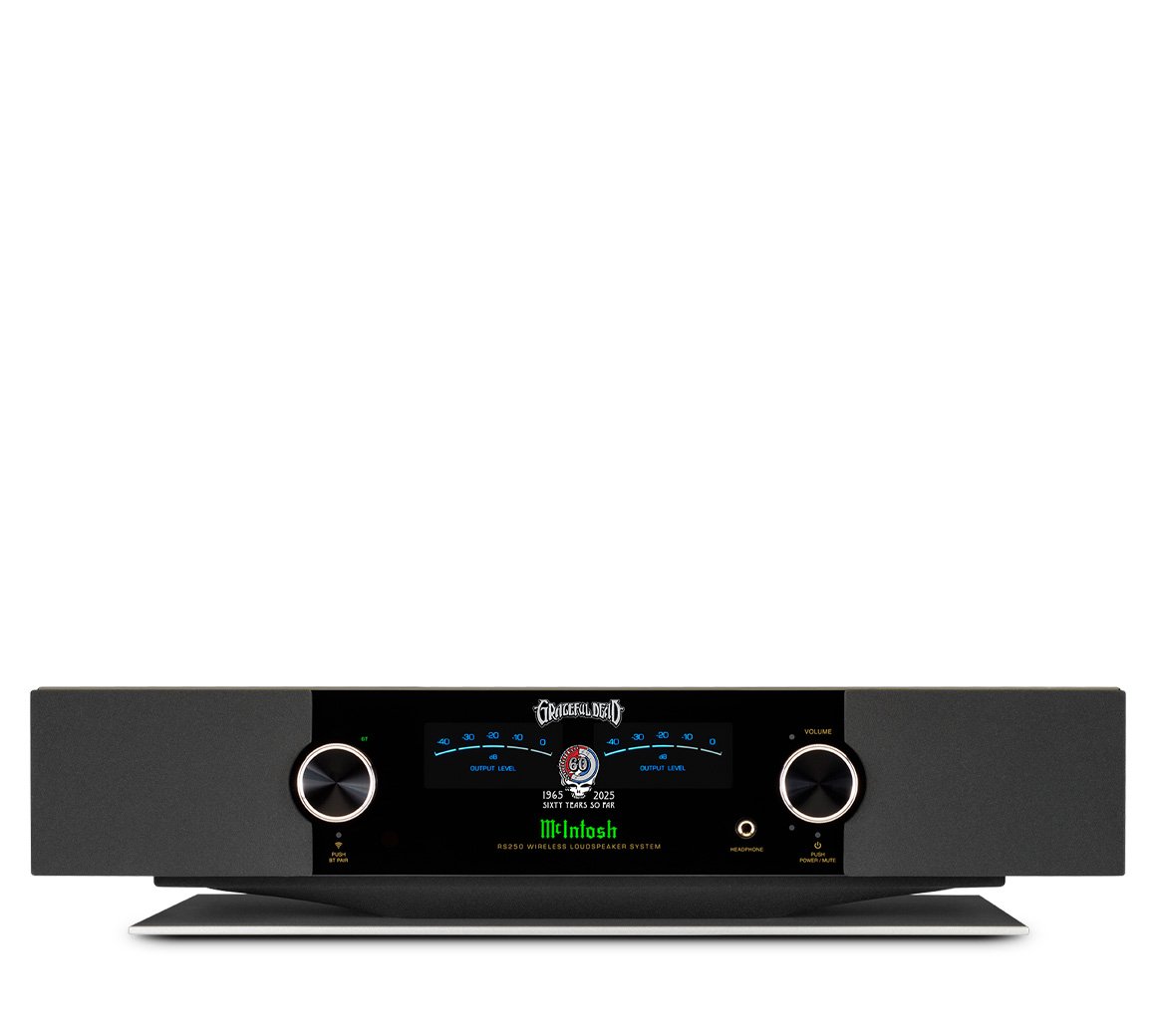

RS250

Wireless Loudspeaker System
- Easily add streaming music to any room
- Built-in casting: Spotify Connect, TIDAL Connect, Apple AirPlay 2, Bluetooth, Chromecast, Roon Ready
- Control playback directly from your favorite compatible streaming apps - no dedicated control app needed
- 650 Watts of total power
- New, quick responding LED digital meters

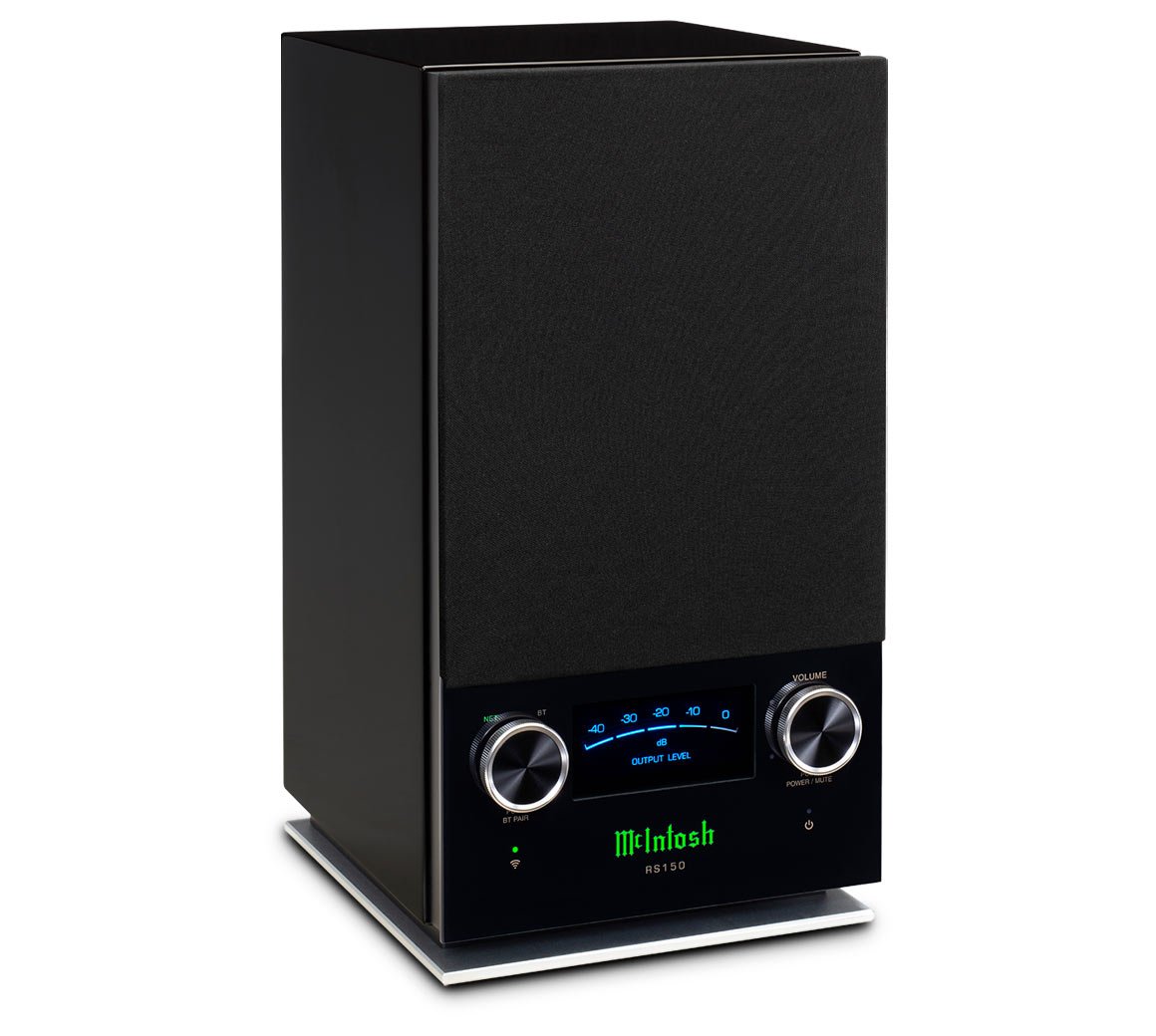

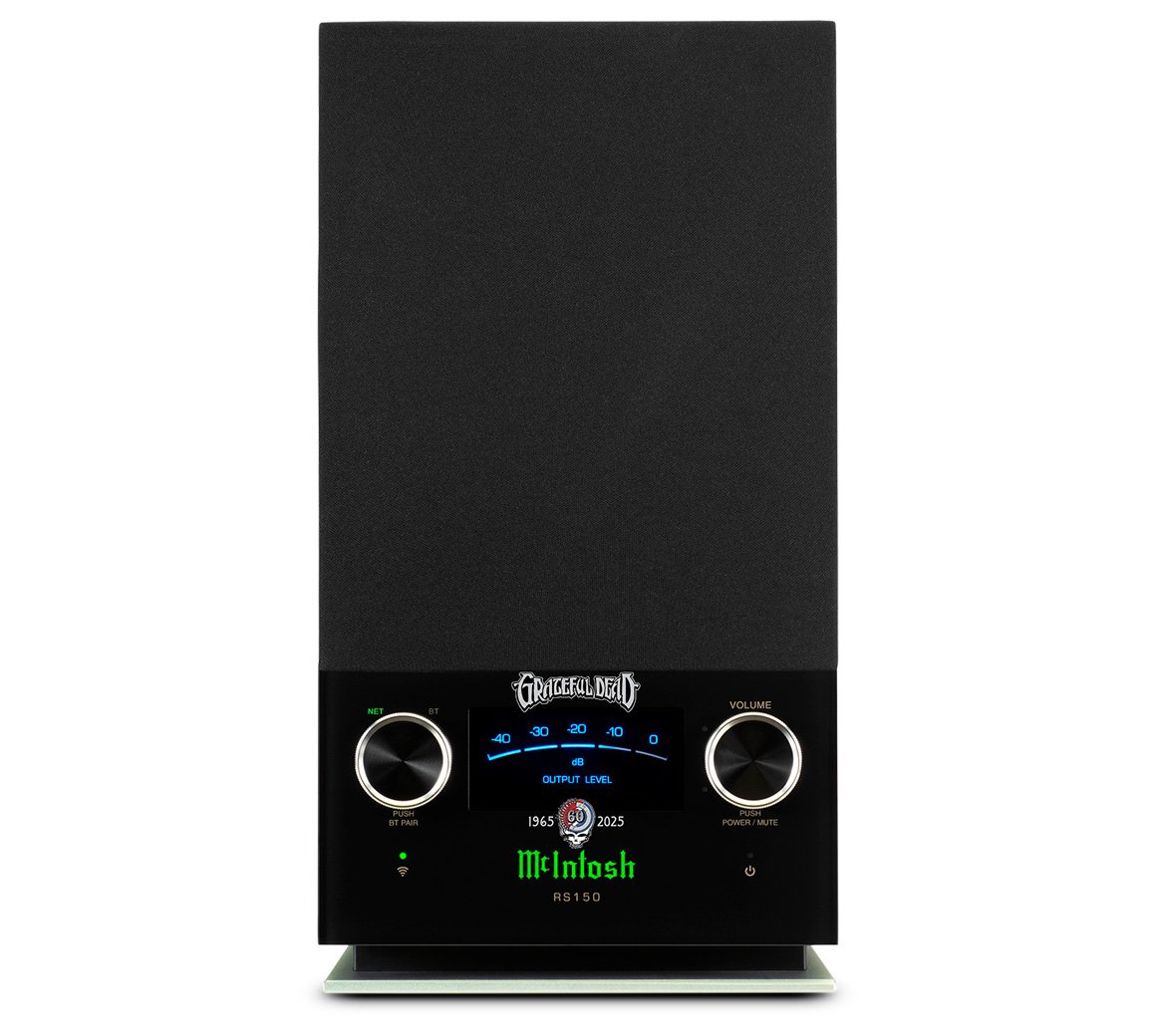

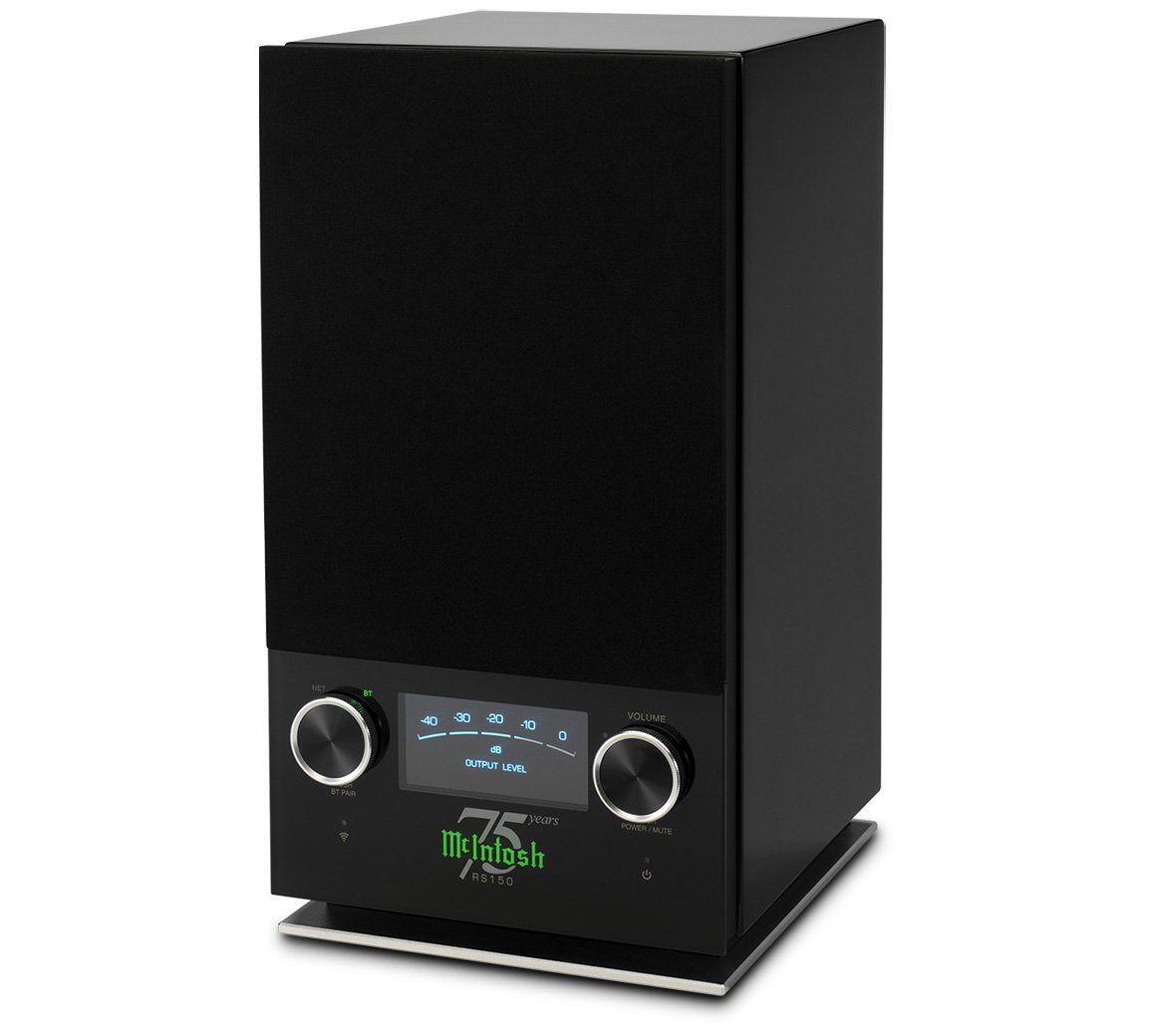

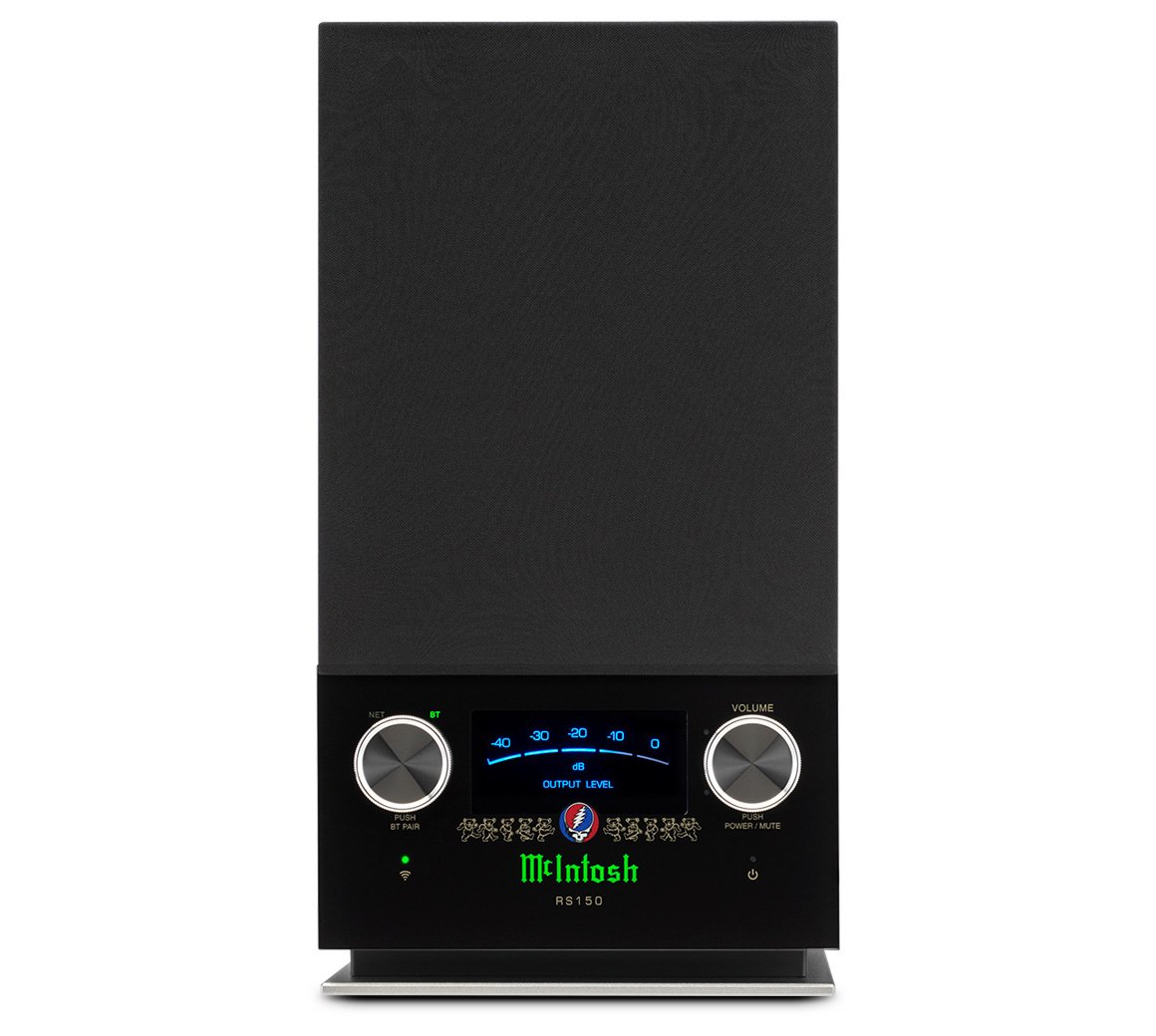

RS150

Wireless Loudspeaker
- Easily add streaming music to any room
- Built-in casting: Spotify Connect, TIDAL Connect, Apple AirPlay 2, Bluetooth, Chromecast, Roon Ready
- Control playback directly from your favorite compatible streaming apps - no dedicated control app needed
- Power output doubled
- New, quick responding LED digital meter
WS500

In-Wall Loudspeaker
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating
WS350

In-Wall Loudspeaker
- Paintable Aluminum Grille
- Deep Drawn Aluminum Back Enclosure
WS300

In-Wall Loudspeaker
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating

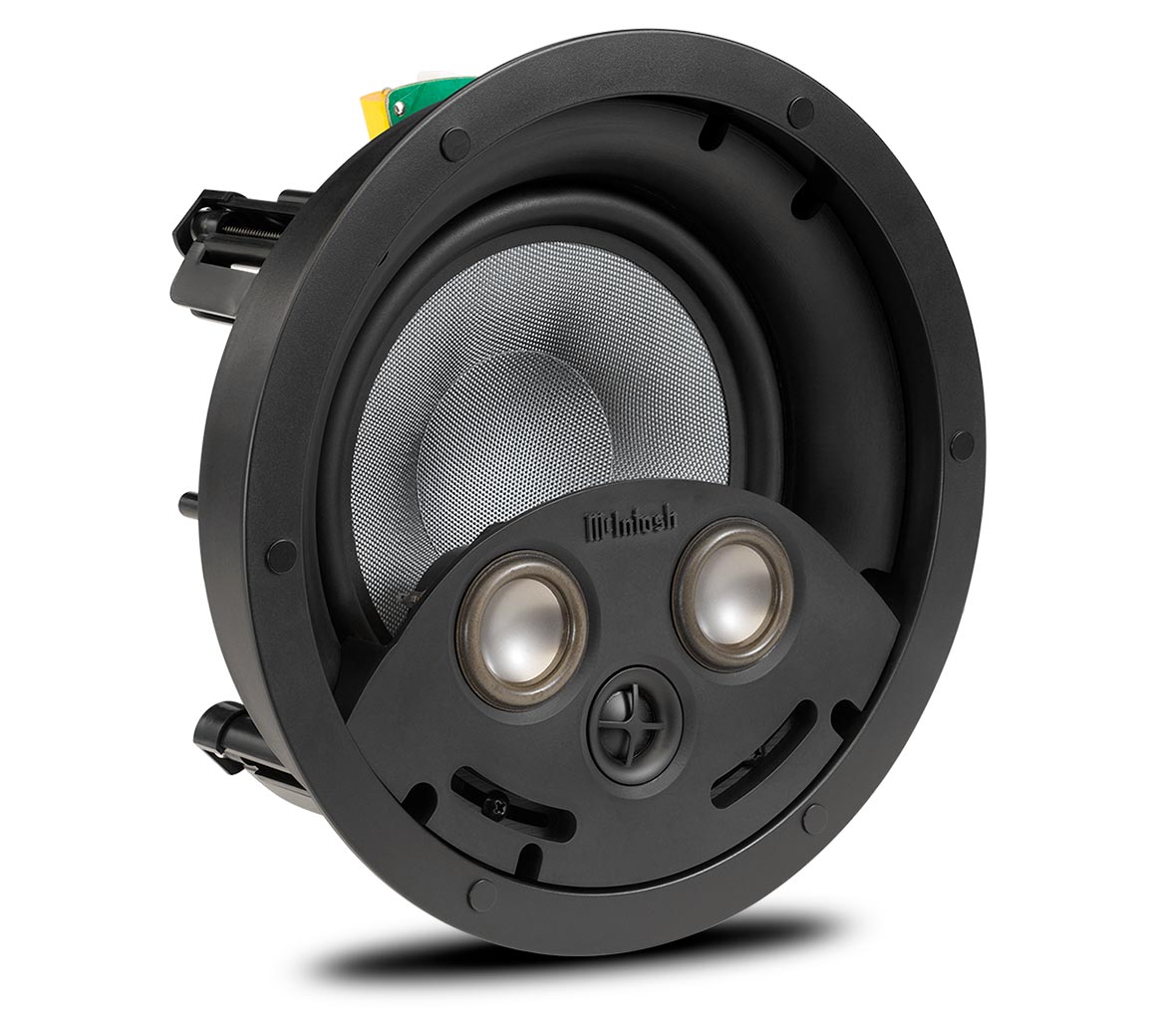

CS200
