Audio Specifications

• Number of Channels

  2

• Fixed Output Level

  N/A

• Variable Output Level

  N/A

• Output Impedance

  N/A

• Frequency Response

  N/A

• Signal To Noise Ratio

  N/A

• Dynamic Range

  N/A

• Total Harmonic Distortion

  N/A

• Channel Separation

  N/A

• Headphone Output Impedance

  N/A

Digital Audio Specifications

• Digital-to-Analog Converter (DAC) Type

  N/A

• Coaxial Sample Rate

  N/A

• Optical Sample Rate

  N/A

• USB Sample Rate

  N/A

• Digital Coaxial Input

  N/A

• Digital Optical Input

  N/A

• Digital Output Sample Rate

  Coaxial: Up to 24-Bit/192kHz
  Optical: Up to 24-Bit/192kHz
  XLR: Up to 24-Bit/192kHz
  MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)

• Digital Optical Output

  -15dbm to -21dbm

• Digital Coaxial Output

  0.5V p-p/75 ohms

• Digital Output Jitter

  ≤ 32ns with 1kHz test tone

• Digital XLR Output

  5V p-p/150 ohms

• Digital MCT (DIN) Output

  3V @110 ohms

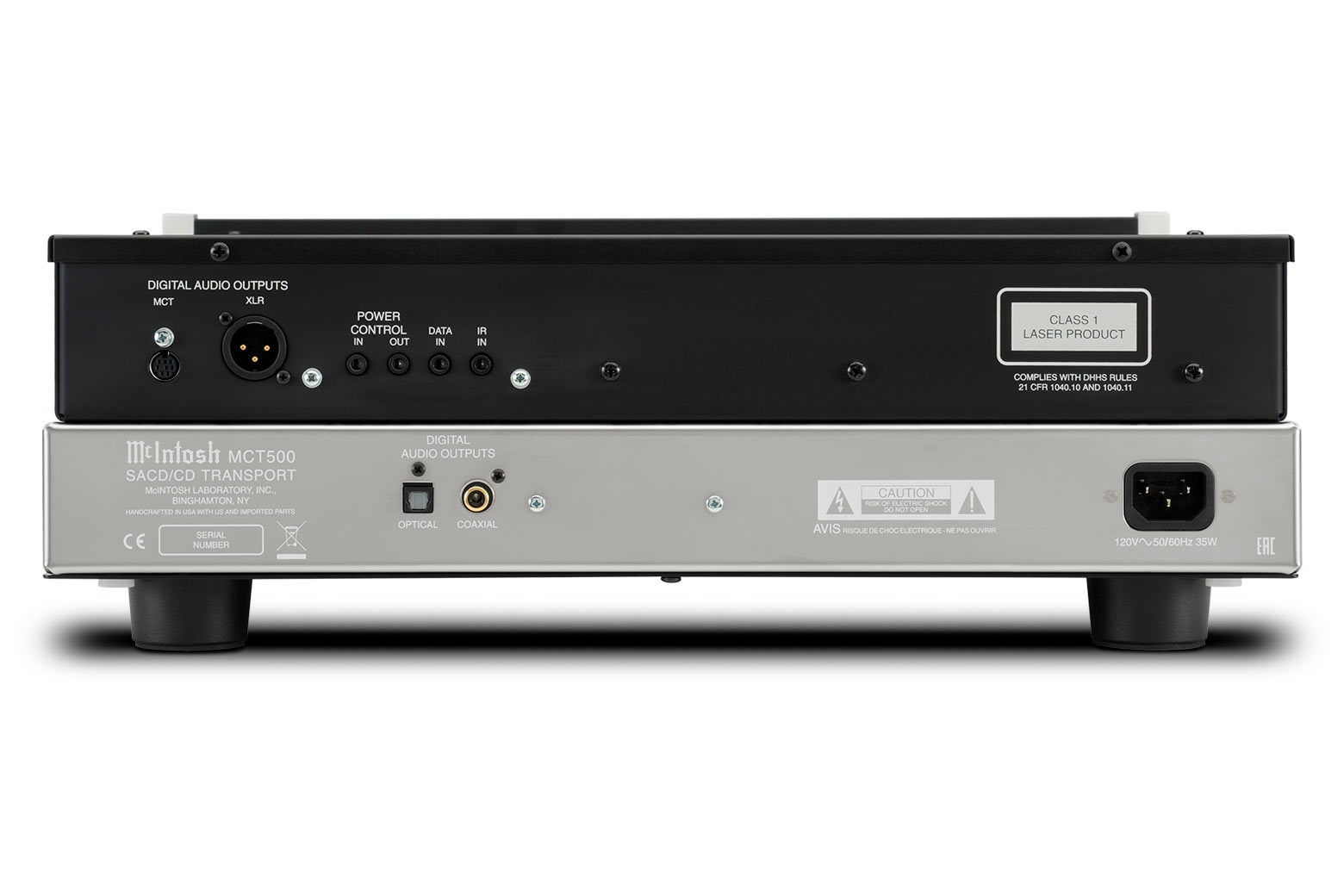

Connectivity

• Balanced Fixed Output

  0

• Unbalanced Fixed Output

  0

• Balanced Variable Output

  0

• Unbalanced Variable Output

  0

• Digital Coaxial Input

  0

• Digital Optical Input

  0

• Digital USB Input

  1 (front)

• Digital USB Input Type

  Type A

• Digital Coaxial Output

  1

• Digital Optical Output

  1

• Digital XLR Output

  1

• Digital MCT (DIN) Output

  1

• Headphone Output

  0

Control

• Rear Panel IR Sensor Input

  1

• Rear Panel Data Input

  1

• Power Control Input

  1

• Power Control Output

  1

General Specifications

• Disc Formats

  SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

• Disc Capacity

  1

• Laser Type

  Twin Beam

• Laser Beam Wavelength

  650nm (SACD)
  790nm (CD)

• Laser Power

  CLASS IIa/CLASS I

• Standby Power Requirement

  <0.5 watt

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).

• Unit Weight

  26 lbs (11.8 kg)

• Shipping Weight

  40.5 lbs (18.4 kg)
