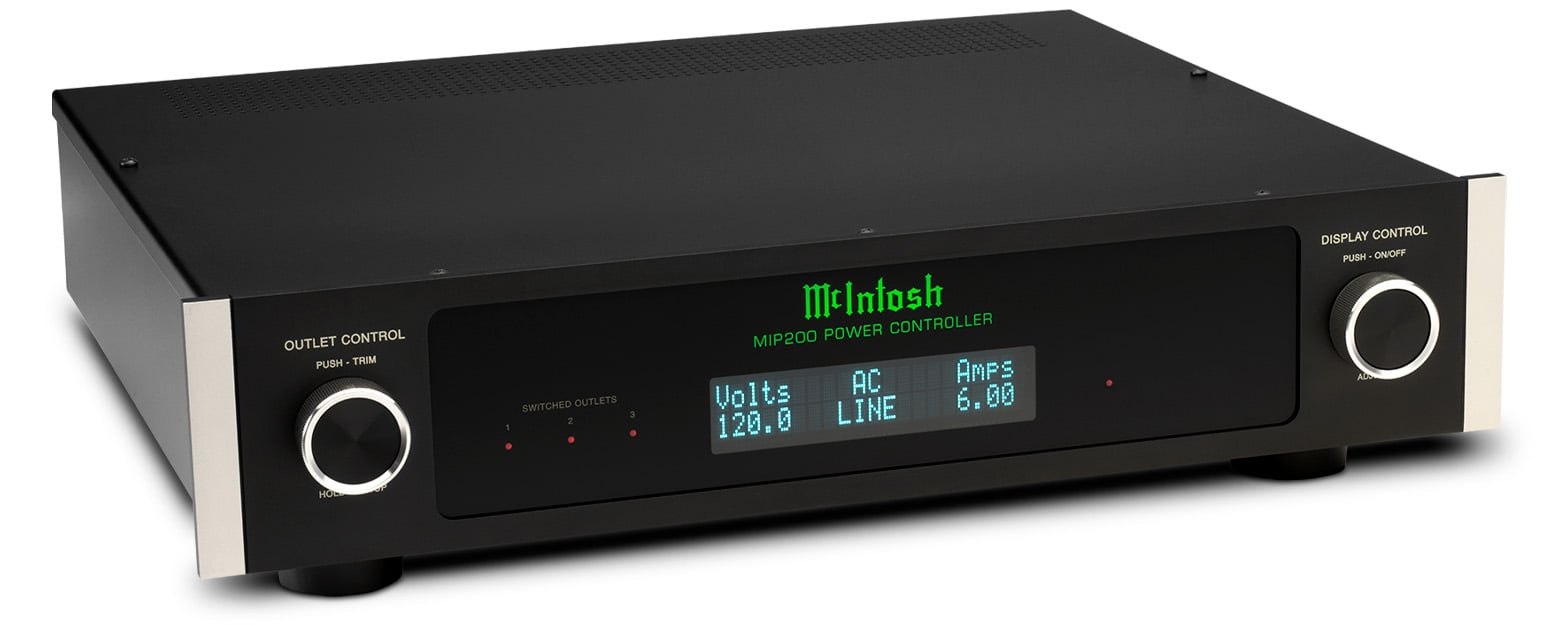

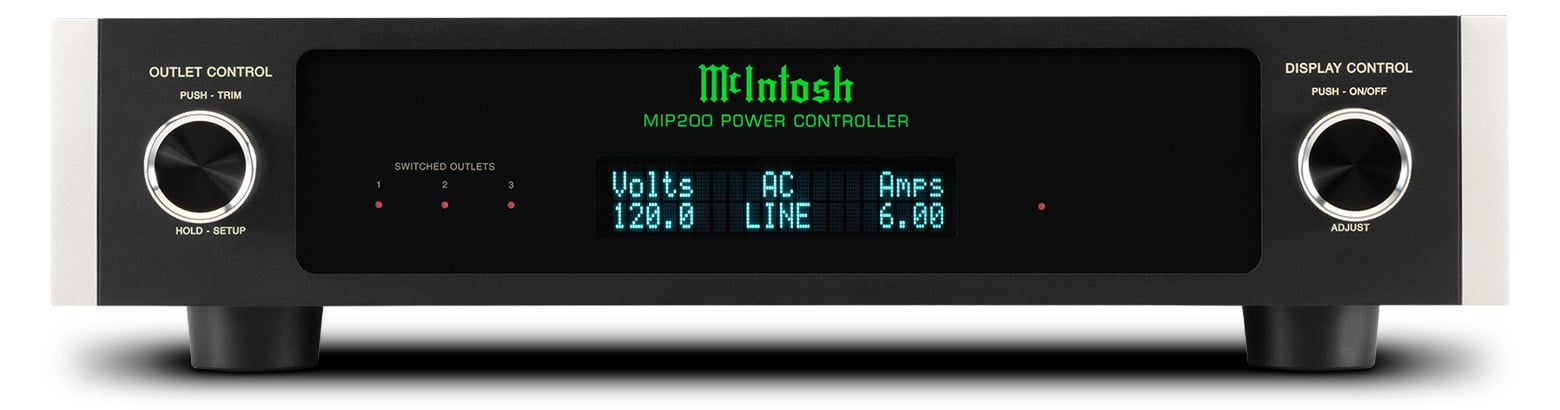

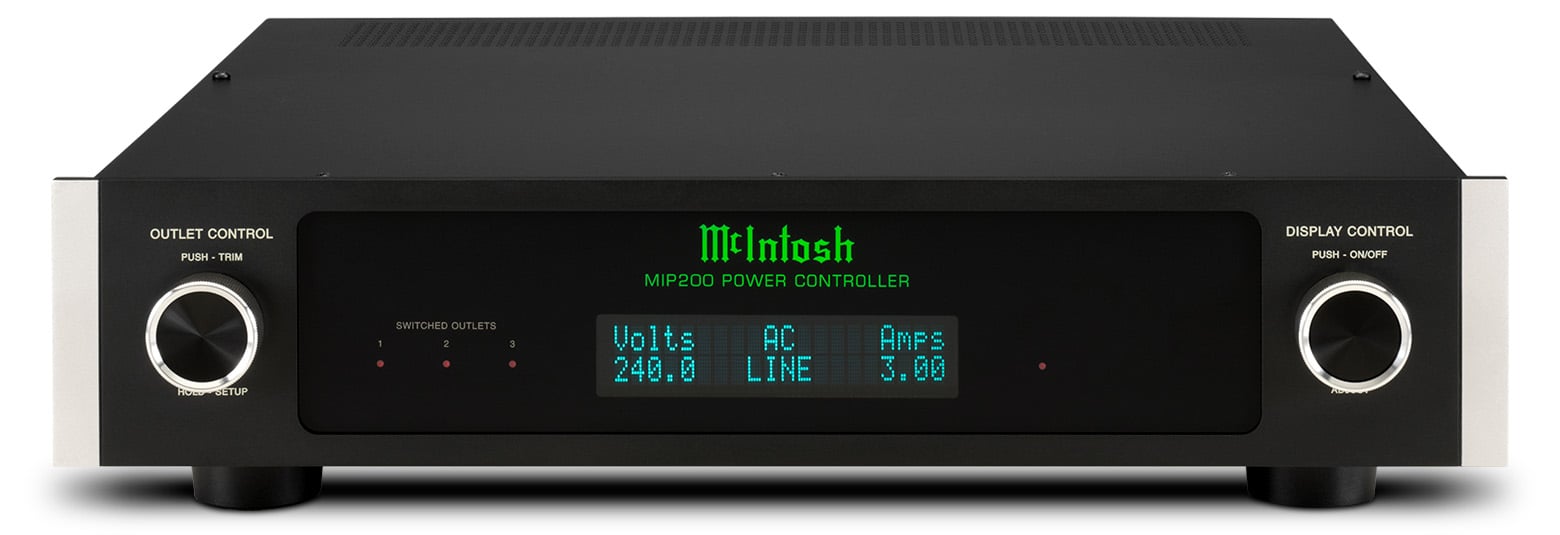

MIP200 Power Controller

Electronic Specifications

• Input Rating

  With Type B (NEMA 5-15R) receptacles:
  100 - 120V 50/60Hz 12A (Max)
  With Type F (CEE 7/3 or “Schuko”) receptacles:
  220 - 240V 50/60Hz 6A (Max)

• Output Rating

  With Type B (NEMA 5-15R) receptacles: 11.6A (1160W)
  With Type F (CEE 7/3 or “Schuko”) receptacles: 5.8A (1275W)

• AC Surge Suppression

  50 kA - 8/20μs Line to Neutral

General Specifications

• AC Surge Suppression Type

  Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection

• Number of Receptacles

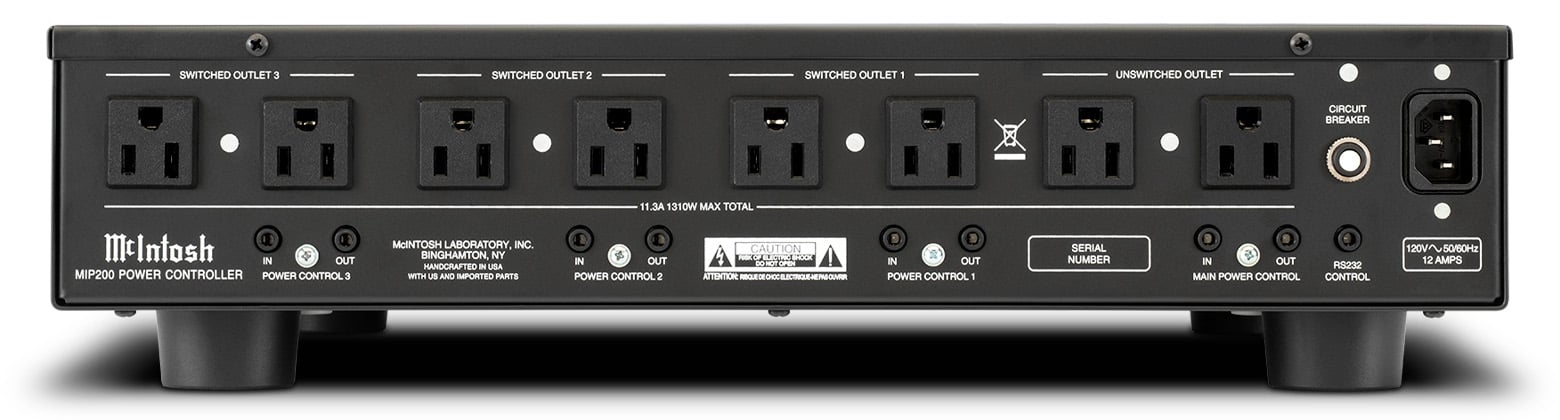

  With Type B (NEMA 5-15R) receptacles: 8

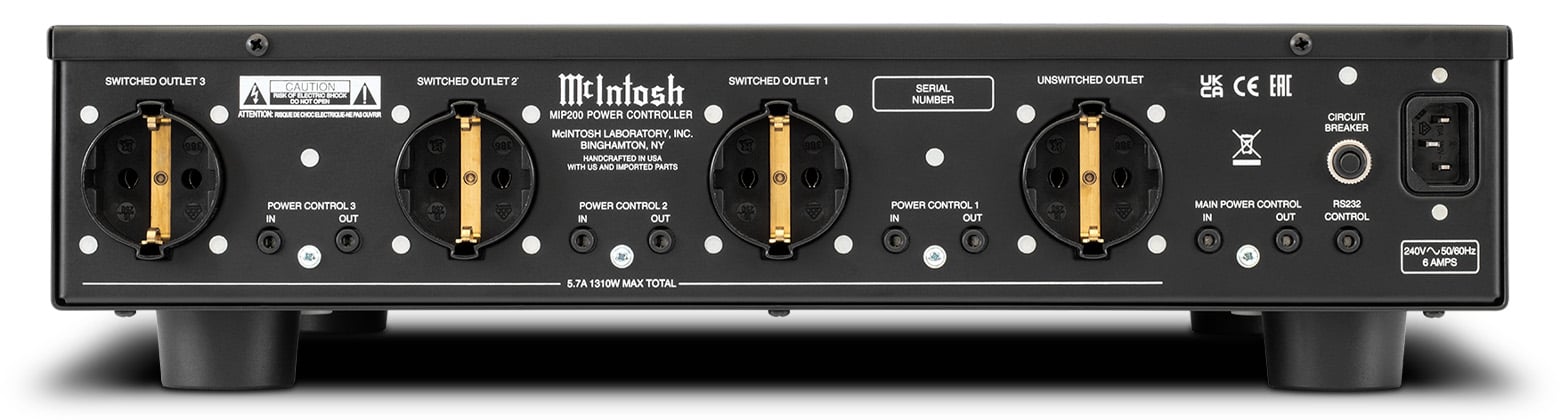

  With Type F (CEE 7/3 or “Schuko”) receptacles: 4

• Number of Always ON Receptacles

  With Type B (NEMA 5-15R) receptacles: 2
  With Type F (CEE 7/3 or “Schuko”) receptacles: 1

• Number of Programmable Receptacles

  With Type B (NEMA 5-15R) receptacles: 6
  With Type F (CEE 7/3 or “Schuko”) receptacles: 3

Weights & Dimensions

• Unit Dimensions (W x H x D)

  With Type B (NEMA 5-15R) receptacles:
  17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-9/16” (39.5cm)
  With Type F (CEE 7/3 or “Schuko”) receptacles:
  17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-23/32” (39.9cm)

• Unit Weight

  17 lbs (7.7 kg)

• Shipping Weight

  33 lbs (15 kg)
