MA352

2-Channel Integrated Amplifier

Hybrid design: vacuum tube preamp and solid state power amp
200 Watts into 8 Ohms
320 Watts into 4 Ohms
5-band tone control

FIND A DEALER

Eligible for online purchase?

3 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

MA352

2-Channel Integrated Amplifier

3 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

FIND A DEALER

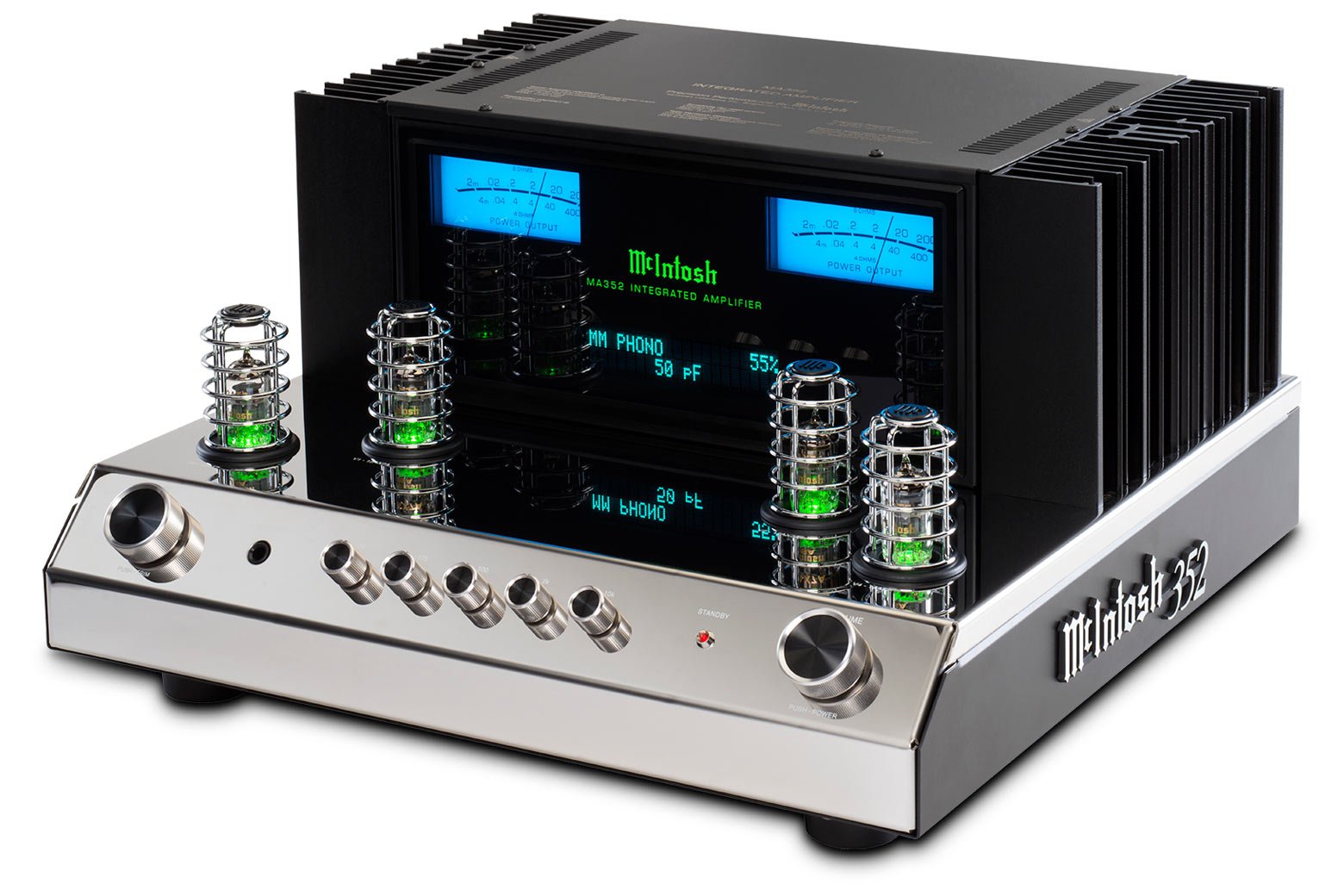

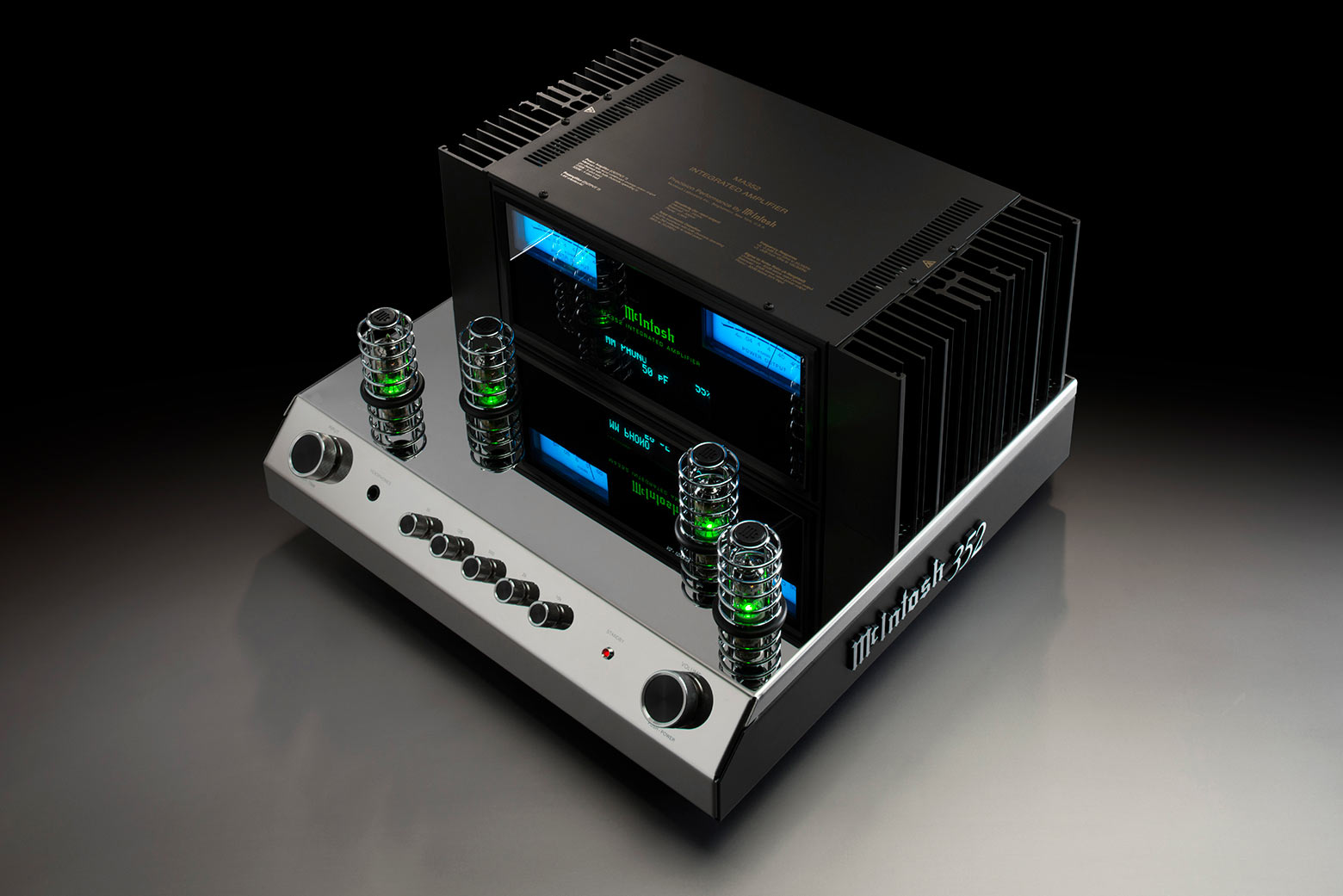

The MA352 Integrated Amplifier is a hybrid design that combines the finest of vacuum tube and solid state audio design principles. The result is an eye-catching amplifier that enjoys the best of these two opposing audio philosophies all while reproducing music at the highest quality level.

An all analog design, the MA352 has a vacuum tube preamplifier section that is powered by a pair of 12AX7A and a pair of 12AT7 vacuum tubes; its output stage is a direct coupled solid state amplifier that outputs 200 Watts per channel into 8 Ohm speakers or 320 Watts per channel into 4 Ohm speakers – enough power to properly drive virtually any set of loudspeakers. Dual scale blue Watt meters give an accurate readout of power output for both speaker impedances.

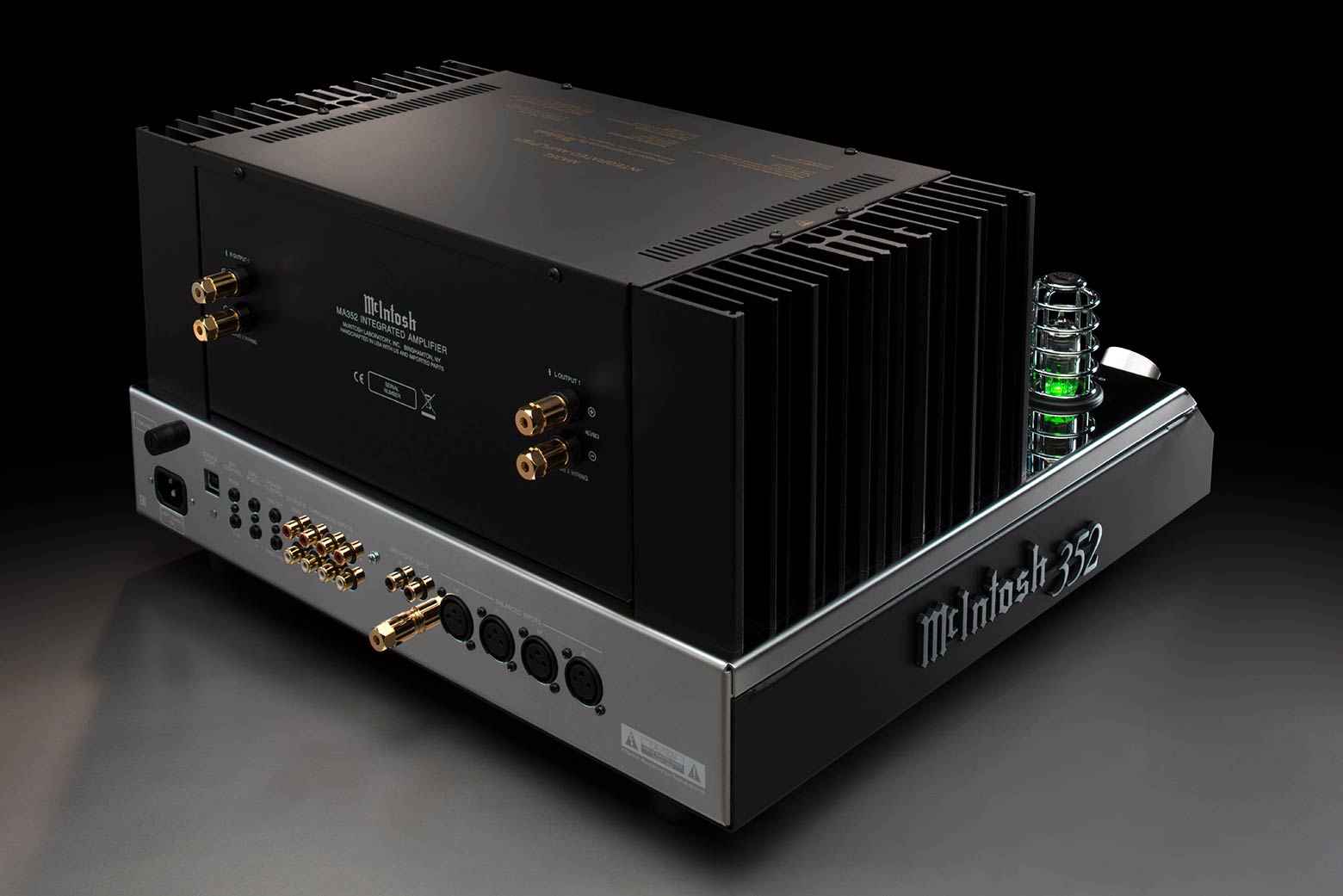

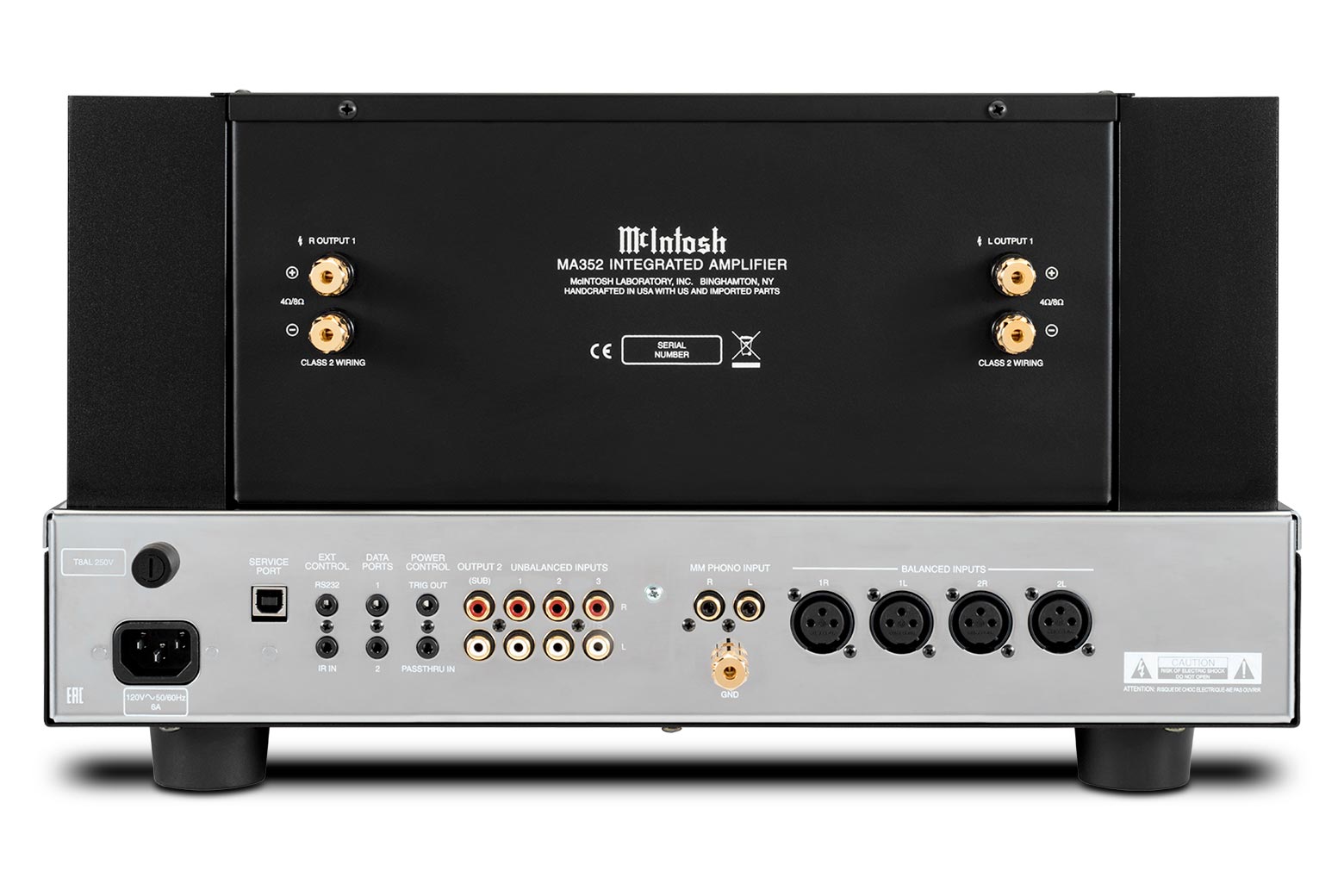

The MA352 has 2 balanced and 3 unbalanced inputs plus 1 Moving Magnet phono input with adjustable loading for connecting a turntable. It has gold-plated speaker binding posts to help prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers. A stereo preamplifier output is available for connecting a higher-powered amplifier; it can also be used to connect 1 or 2 powered subwoofers for added low frequency performance.

The MA352 is packed with numerous McIntosh technologies including:

Our patented Power Guard^® technology that monitors the output signal for over driving and makes real time micro adjustments to the input signal to prevent harsh sounding clipping that could potentially damage your speakers
Our fuse-less short-circuit protection circuit Sentry Monitor™ that will disengage the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal

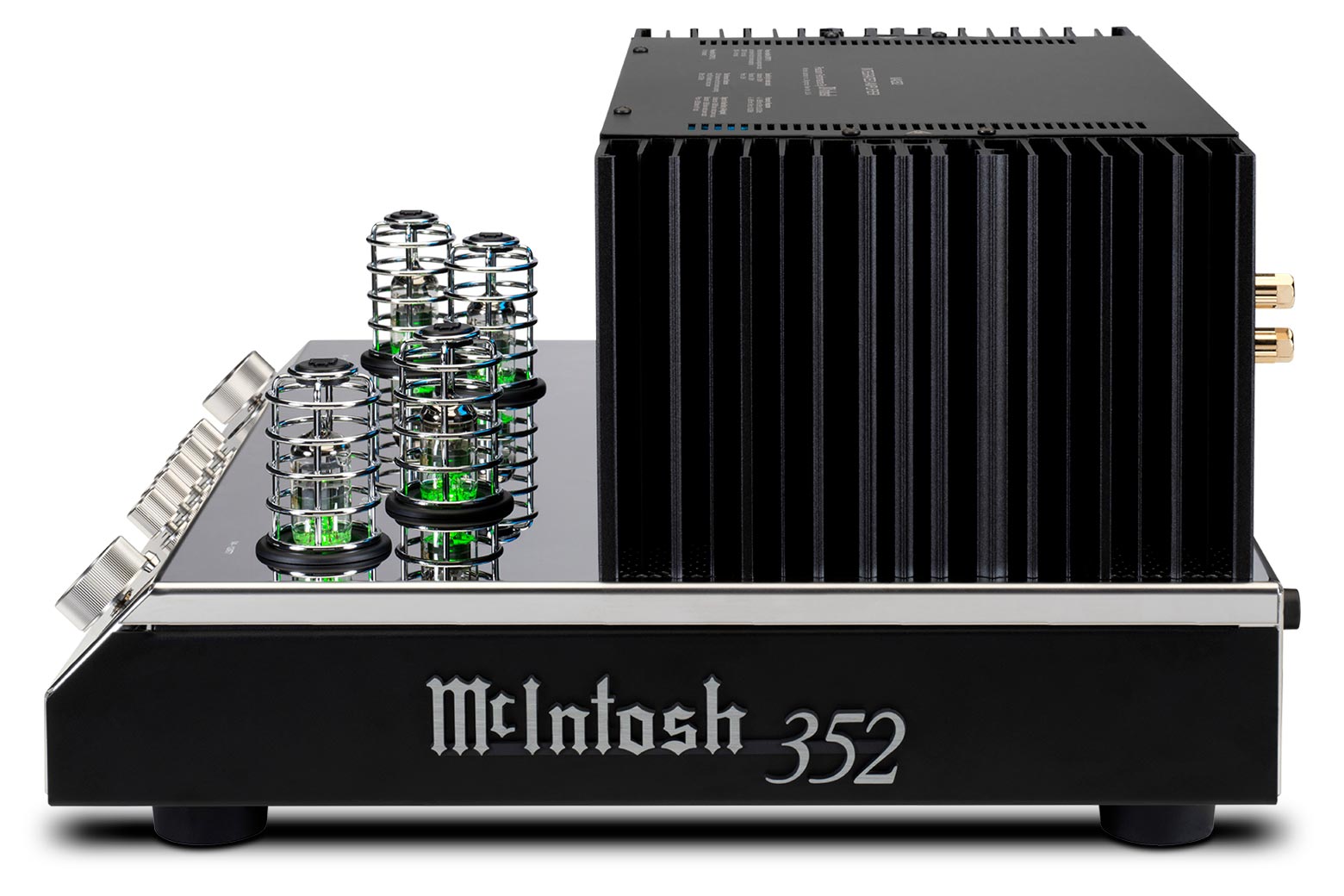

McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that minimize thermal equilibrium lag (or warm-up) time
High Drive headphone amplifier with Headphone Crossfeed Director (HXD^®)
A 5-band analog tone control allows for manual adjustment of your favorite recordings (each band adjustable by ± 12dB)
Home Theater Pass Through lets it be seamlessly integrated into a home theater system
Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown

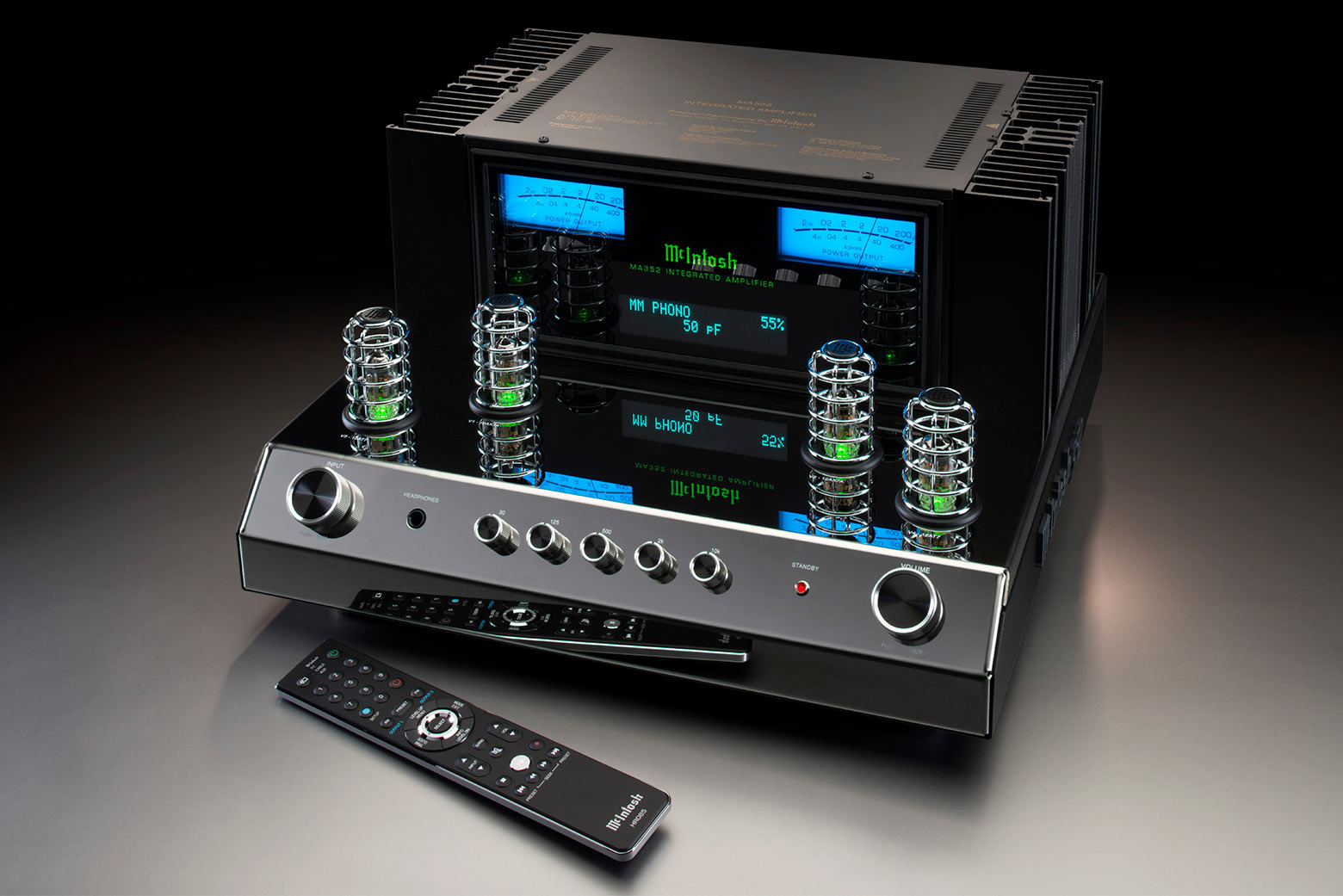

Data Ports to send remote control commands to connected source components

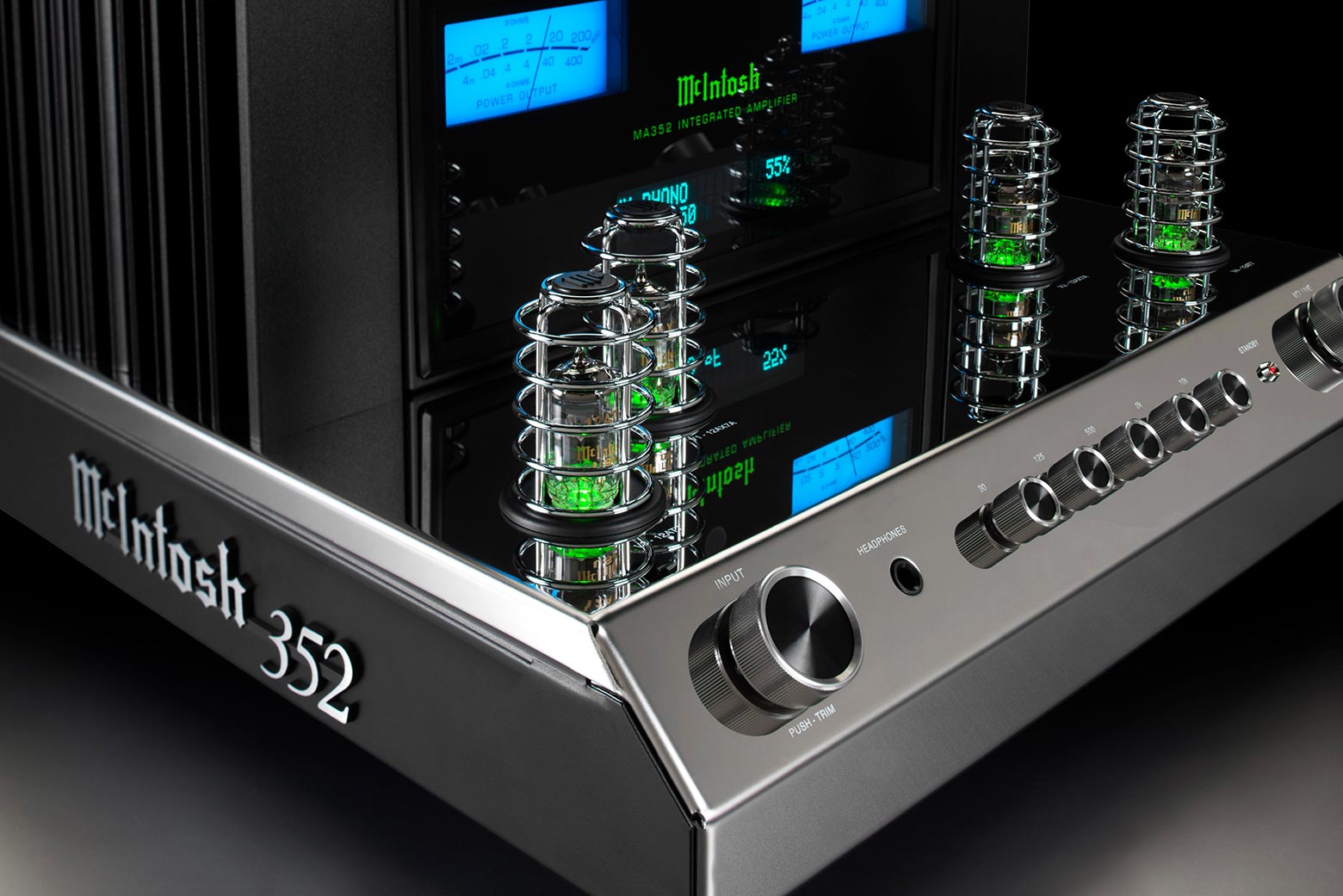

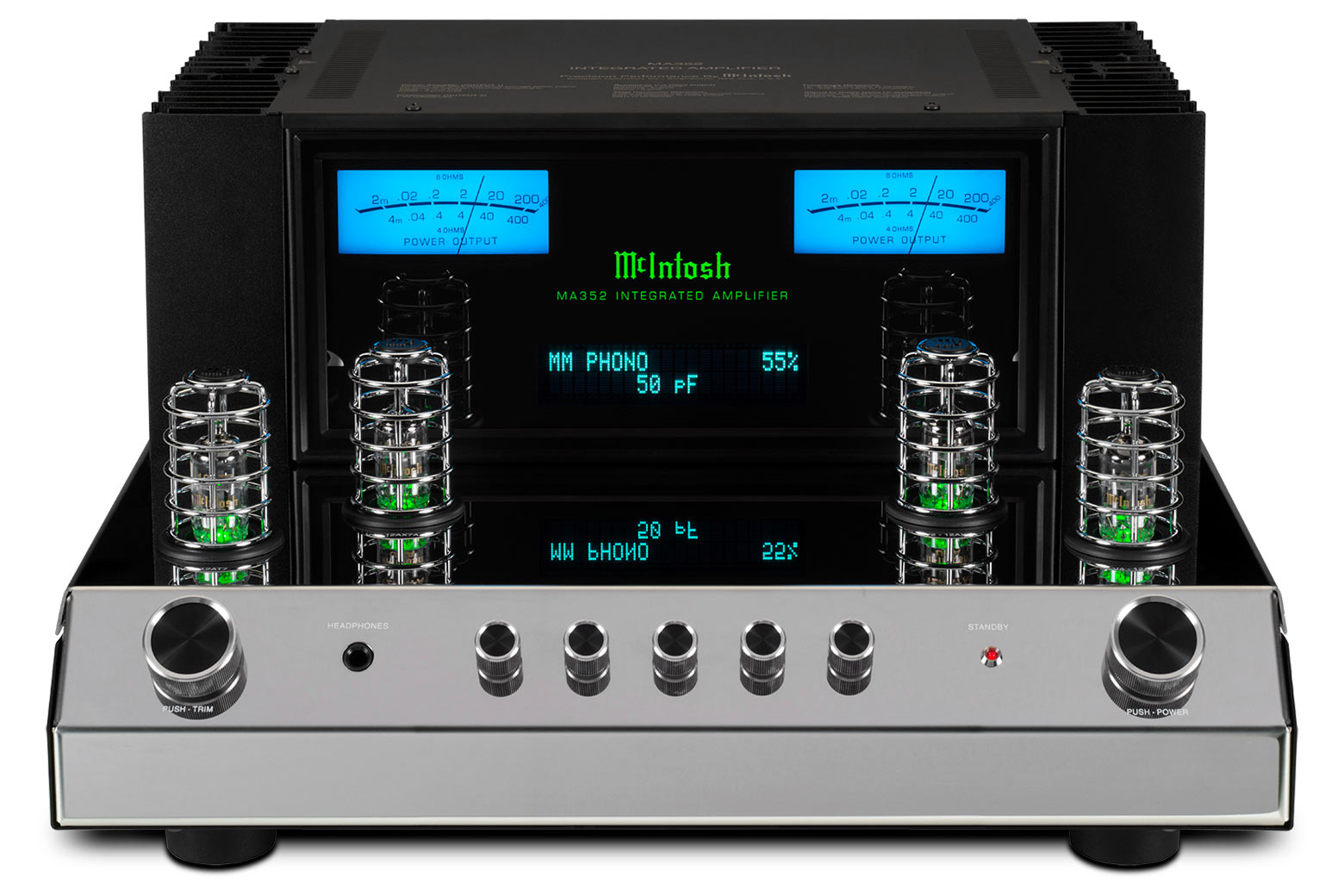

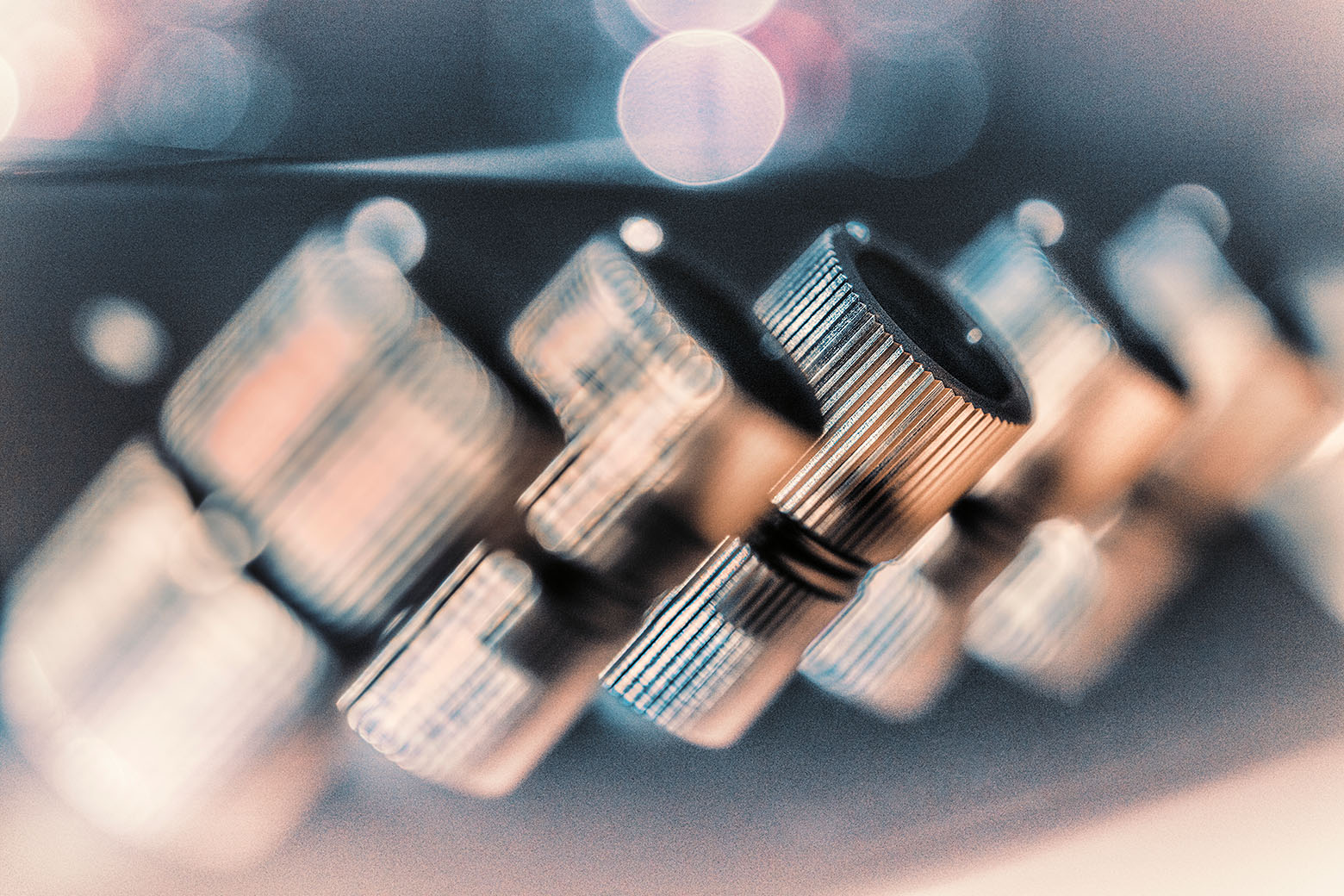

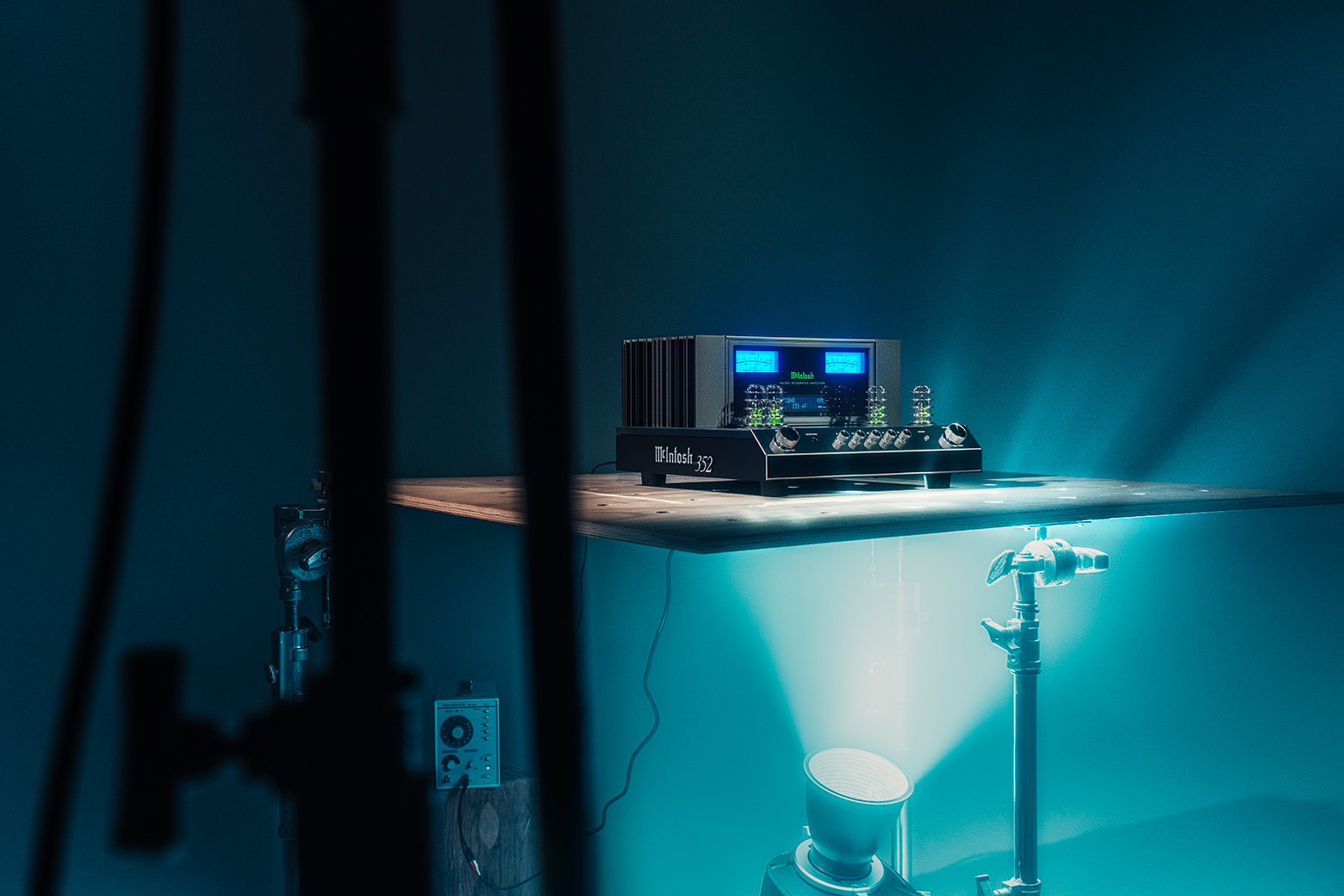

The unit sits on a stainless steel chassis polished to a mirror finish; vintage McIntosh-styled die cast aluminum name badges are affixed to each side. Blue output meters, control knobs, an illuminated logo, and a black glass front panel with direct LED backlighting complete the unit. It can be paired with an assortment of CD players, turntables, tuners, media streamers and speakers to complete your home audio system. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Power Output per Channel

  200 Watts into 8 Ohms
  320 Watts into 4 Ohms
- Number of Channels

  2
- Speaker Impedance

  4 or 8 Ohms
- Rated Power Band

  20Hz to 20kHz
- Total Harmonic Distortion

  0.03%
- Dynamic Headroom

  1.5dB
- Frequency Response +0,-0.5dB

  20Hz to 20kHz
- Frequency Response, +0, -3dB

  10Hz to 100kHz
- Sensitivity Phono (Moving Coil)

  N/A
- Sensitivity Phono (Moving Magnet)

  2.5mV
- Sensitivity High Level (Balanced / Unbalanced)

  0.5V/0.25V
- Sensitivity (Power Amp input)

  N/A
- Signal To Noise Ratio (Moving Coil)

  N/A
- Signal To Noise Ratio (Moving Magnet)

  82dB
- Signal To Noise Ratio (High Level)

  93dB
- Signal To Noise Ratio (Power Amp input)

  N/A
- Input Impedance (Balanced / Unbalanced)

  20K/20K
- Damping Factor

  8 Ohms: >200
  4 Ohms: >100
- Maximum Output (Balanced / Unbalanced)

  8V Unbalanced
Connectivity
- Balanced Input

  2
- Unbalanced Input

  3
- Phono Input Moving Coil

  0
- Phono Input Moving Magnet

  1 (adjustable loading)
- Upgradeable Digital Audio Module

  No
- Digital Coaxial Input

  0
- Digital Optical Input

  0
- Digital MCT (DIN) Input

  0
- Digital USB Input

  0
- Balanced Variable Output

  0
- Unbalanced Fixed Output

  0
- Unbalanced Variable Output

  1
- Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD^®)
- Subwoofer Output

  2
- AM/FM Tuner option

  No
- Home Theater PassThru

  Yes
- Unbalanced Analog Connector Type

  Standard
- Speaker Binding Post Type

  Standard
- Service Port

  1
Digital Audio Specifications
- Digital-to-Analog Converter (DAC) Type

  N/A
- Digital Coaxial Input Sample Rate

  N/A
- Digital Optical Input Sample Rate

  N/A
- Digital MCT (DIN) Input Sample Rate

  N/A
- Digital USB Input Sample Rate

  N/A
Control
- Tone Controls

  5-Band
- Tone Bypass and Input Assign

  Yes
- RS232 Control Input

  Yes
- Power Control Output

  1
- Rear Panel Data Port

  2
- Rear Panel IR Sensor Input

  Yes
- Input Level Match

  Yes
General Specifications
- Vacuum Tube or Solid State

  Preamplifier: Vacuum Tube
  Power Amplifier: Solid State
- Output Type

  Direct Coupled
- Output Meters

  Yes
- Dual Layer Chassis

  Yes
- Chassis Finish

  Polished stainless steel
- McIntosh Monogrammed Heatsinks™

  Yes
- Power Requirement

  120V 50/60Hz, 6.0A
- Standby Power Requirement

  <0.5 Watts
Weights & Dimensions
- Dimensions (W x H x D)

  17-1/2" (44.5cm) x 9-7/8" (25.1cm) x 20-1/2" (52.1cm)
- Weight

  66 lbs (29.9 kg)
- Shipping Weight

  75 lbs (34.0 kg)
