MA7200 2-Channel Integrated Amplifier

200 Watts x 2 channel
Comes with DA1 Digital Audio Module installed
Optional dealer installed upgrade to DA2 Digital Audio Module available

Eligible for online purchase?

3 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

MA7200 2-Channel Integrated Amplifier

3 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.

Making up its 14 inputs are 8 analog connections (5 unbalanced, 1 balanced and 1 each of Moving Coil and Moving Magnet inputs for turntables) along with 6 digital (2 each of coaxial and optical plus 1 USB and 1 proprietary MCT for use with our MCT500 SACD/CD Transport). The digital inputs are housed in our DA1 Digital Audio Module, which can easily be replaced by future modules to keep your MA7200 current with the latest digital audio technologies. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The USB input accepts PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz for high resolution audio playback, while the coax and optical inputs will decode music up to 24-bit/192kHz. All inputs can be given custom names for user-friendly system control and configuration.

"A very elegant sounding amplifier with a lot of power in reserve... a hefty amplifier that is capable of great things and a lot more than just brute force, the MA7200 doesn’t just look the part, it sounds the part!" - HiFi+

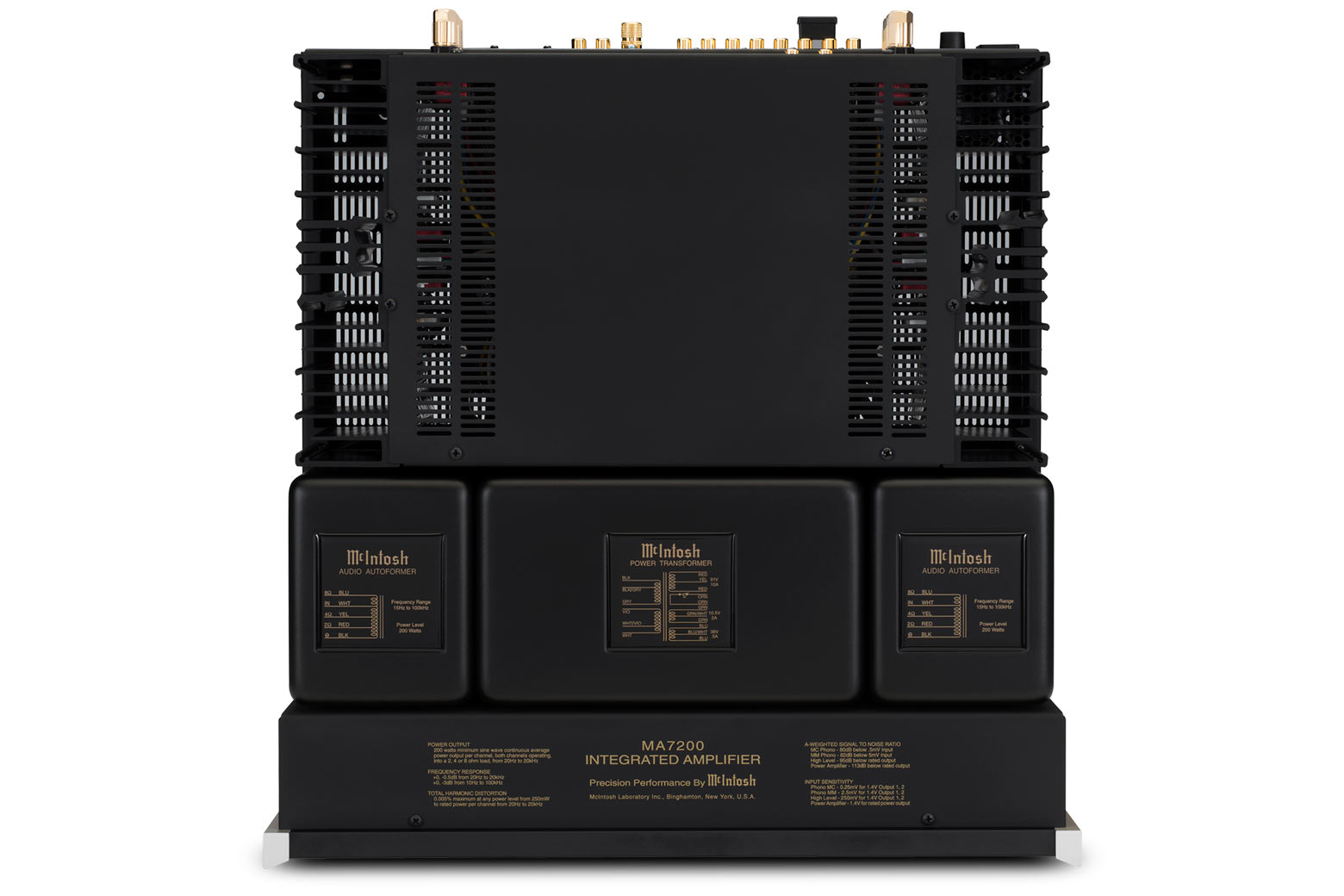

The MA7200 includes our Monogrammed Heatsinks^™ which are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200’s full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers^™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard^®, Sentry Monitor^™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD^®), and gold-plated speaker binding posts.

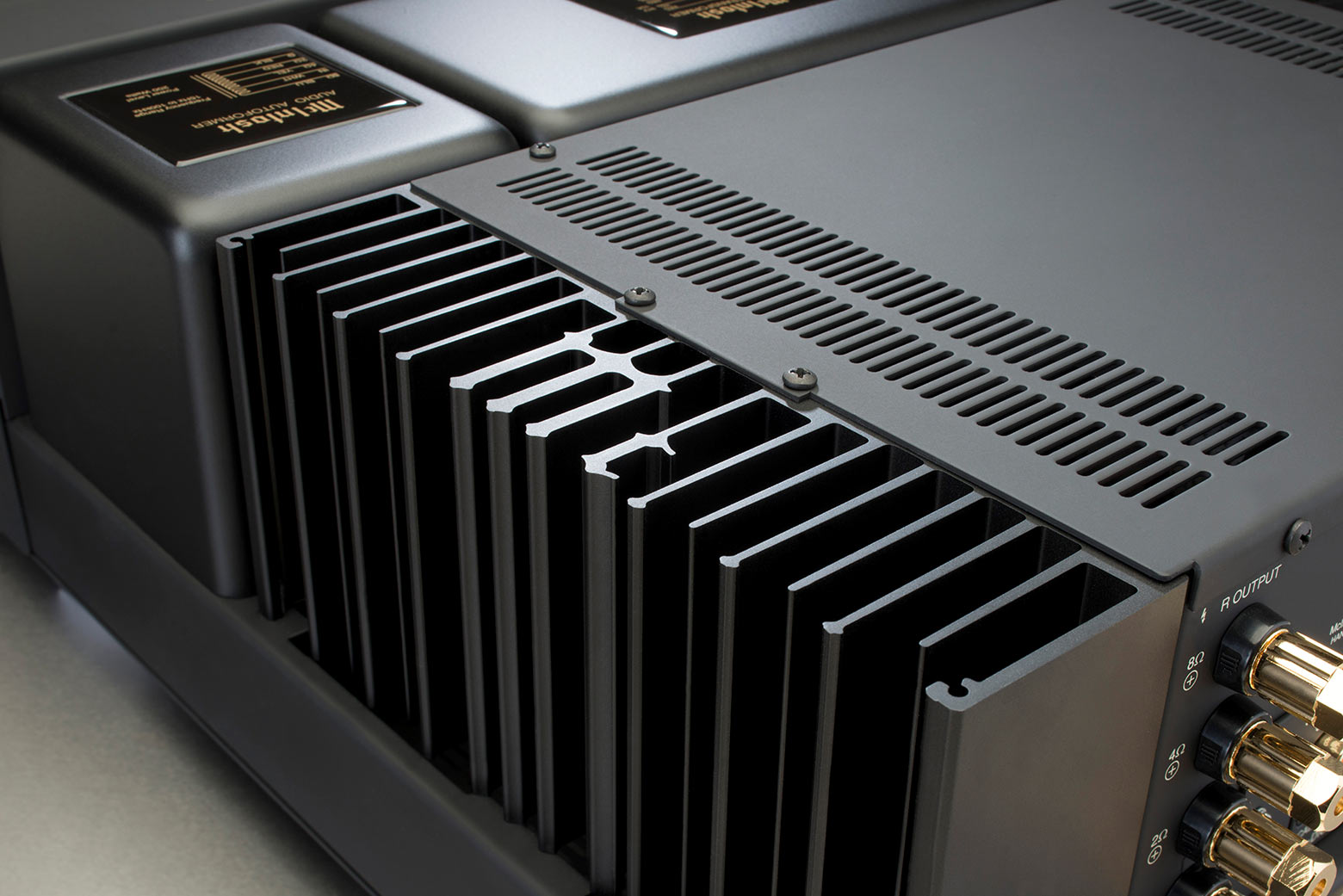

McIntosh Monogrammed Heatsink.

"An astonishingly good amplifier... Blending together the brand's modern take on traditional analogue approaches with a healthy dose of digital inputs plus a top flight phono stage, headphone amp and battleship build quality." - Audiograde

The MA7200 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.

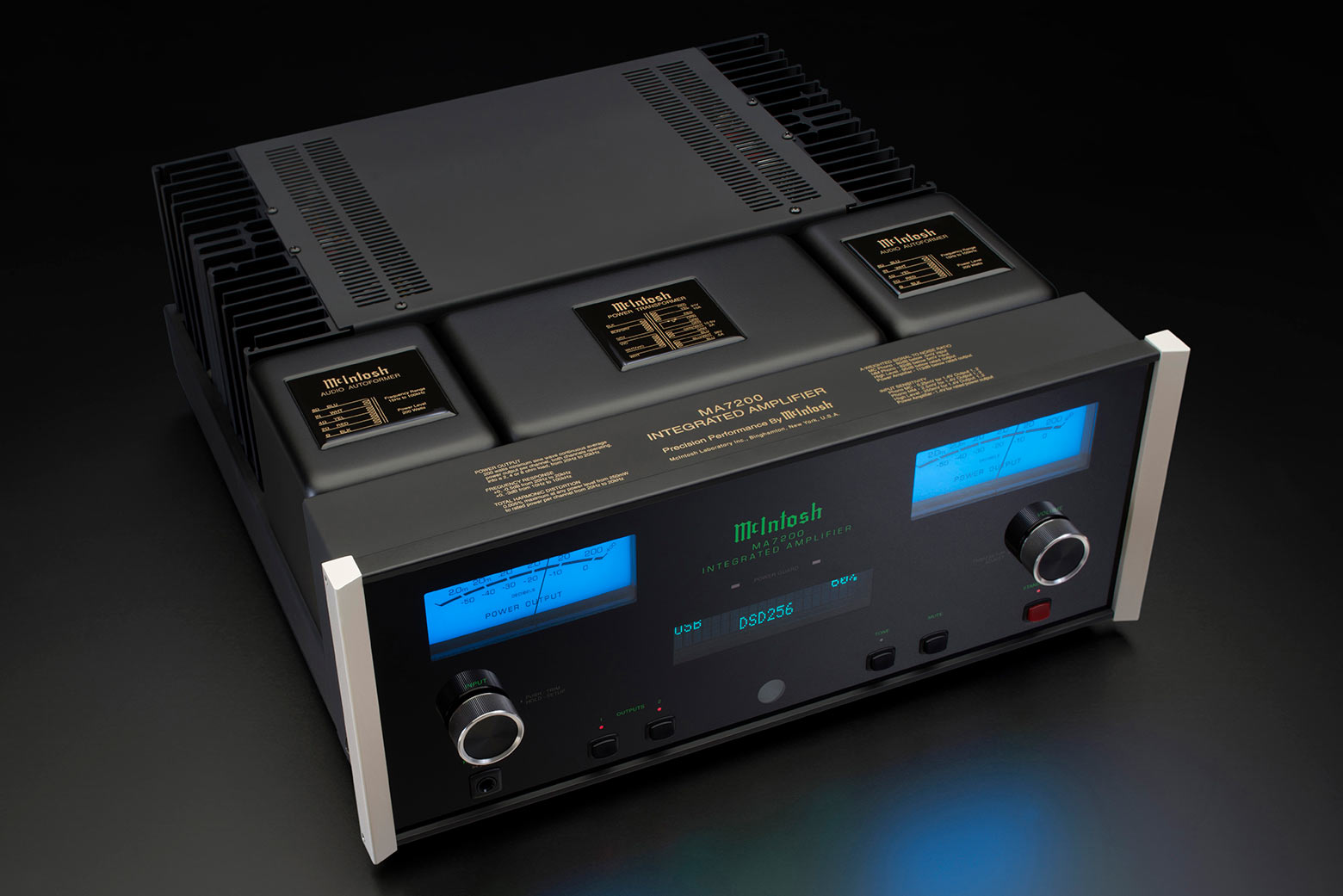

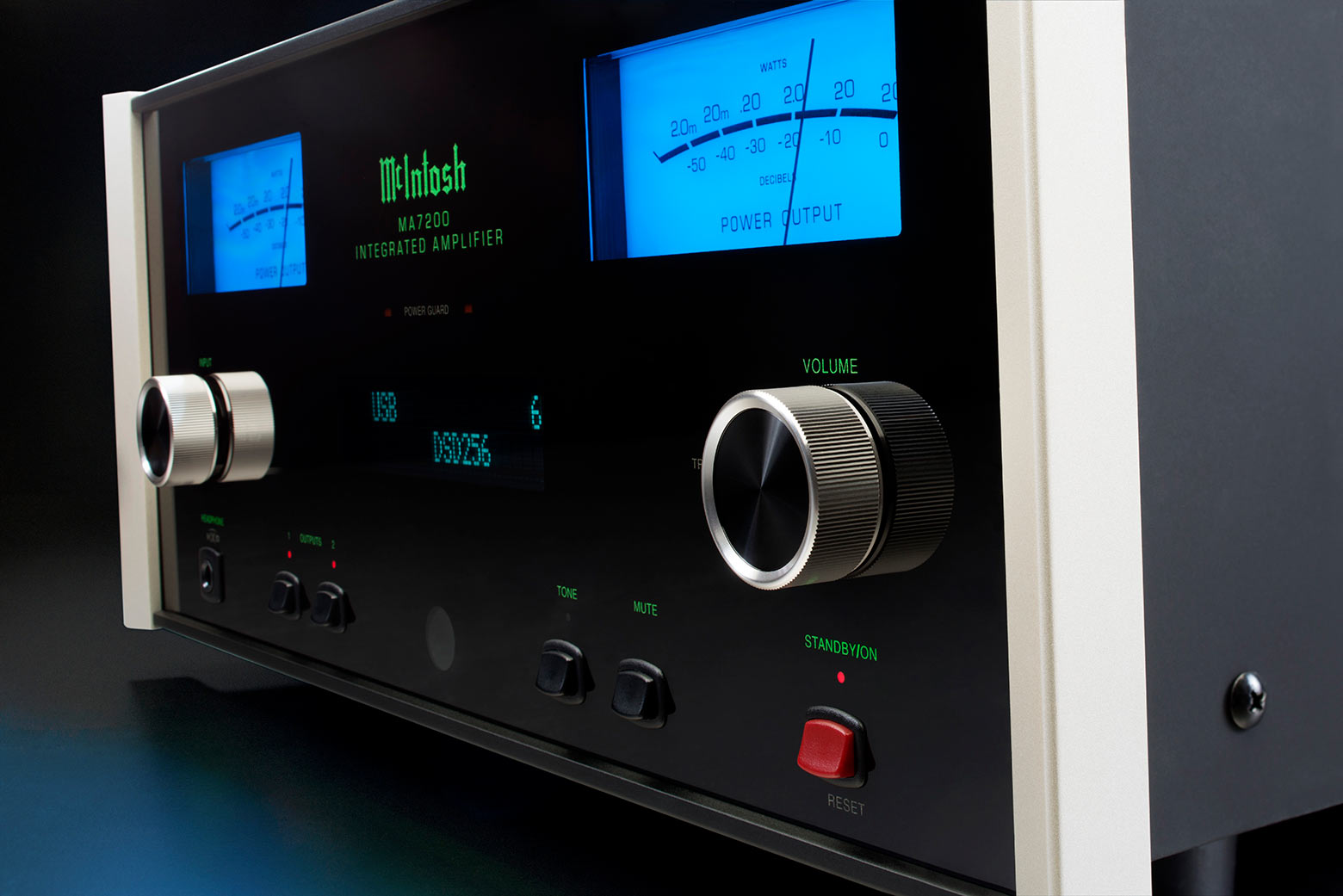

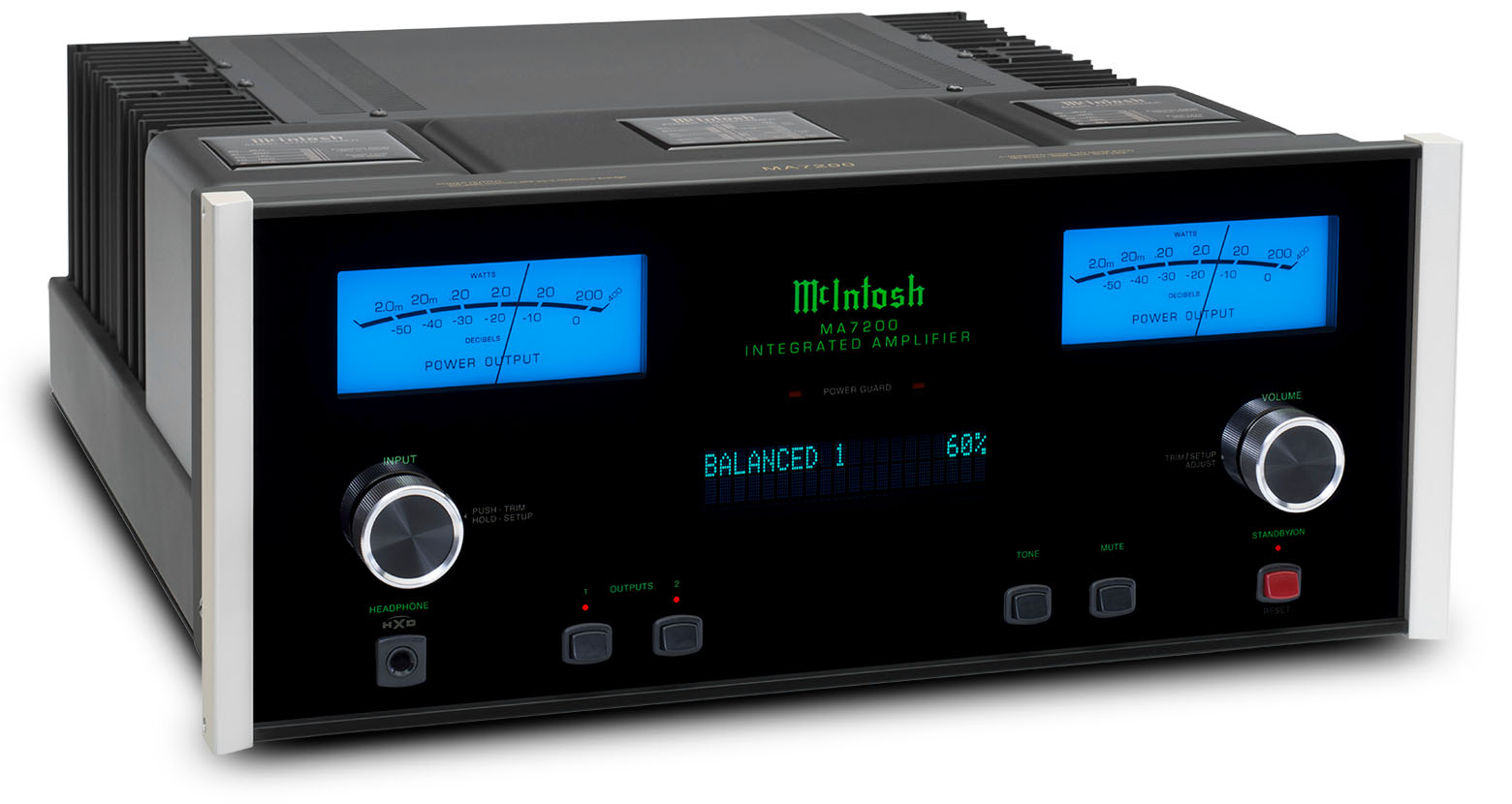

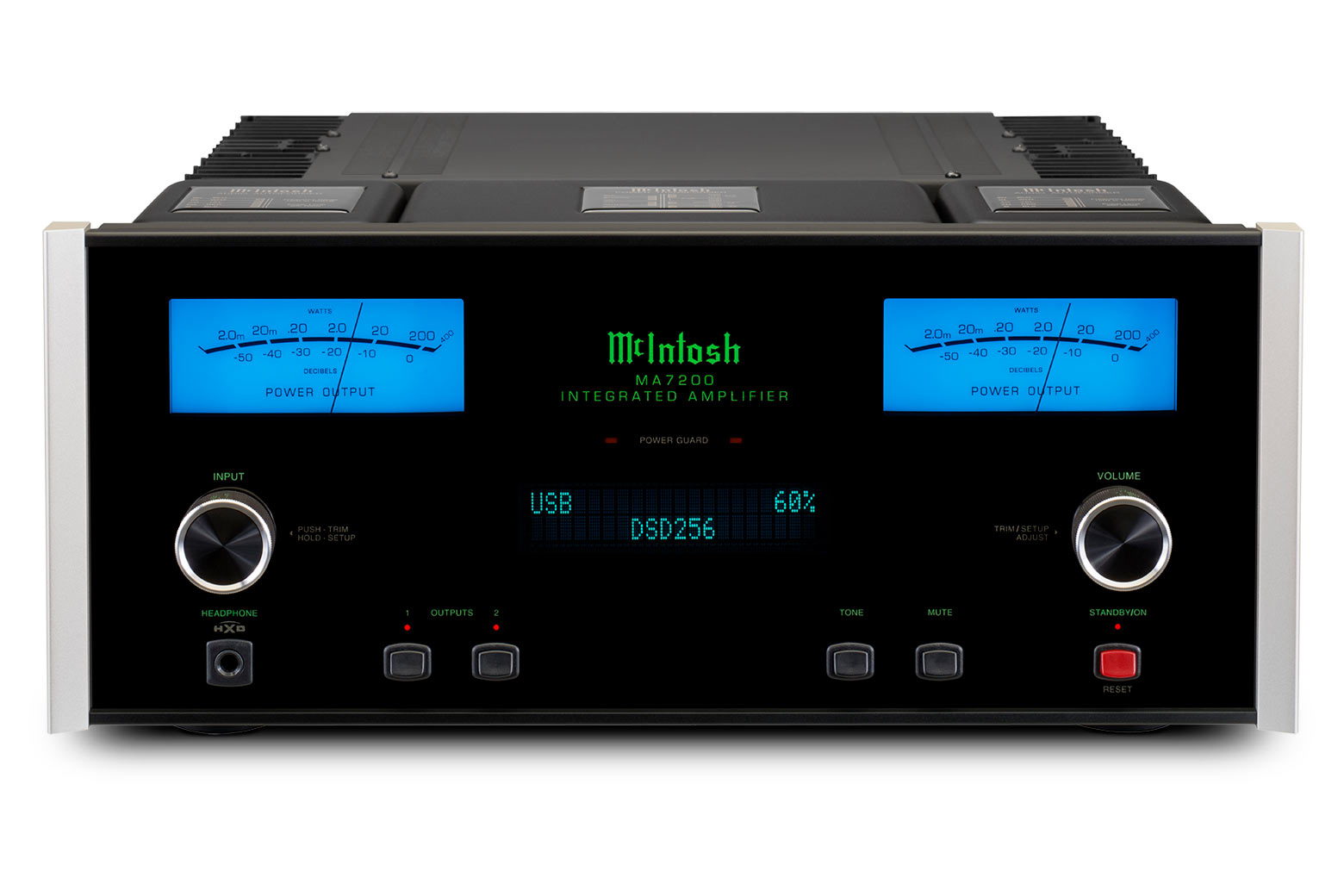

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo. Contact your local dealer to learn more.

MA7200 is not available in the US and Canada. (US and Canada please see the MAC7200 Receiver.)

Specifications
Electronic Specifications
- FTC Power Output Rating

  200 W
- Power Output per Channel

  200 W into 2, 4, or 8 ohms
- Number of Channels

  2
- Rated Power Band

  20Hz to 20kHz
- Total Harmonic Distortion

  0.005%
- Dynamic Headroom

  2dB
- Frequency Response +0,-0.5dB

  20Hz to 20kHz
- Frequency Response, +0, -3dB

  10Hz to 100kHz
- Sensitivity Phono (Moving Coil)

  0.25mV
- Sensitivity Phono (Moving Magnet)

  2.5mV
- Sensitivity High Level (Balanced / Unbalanced)

  0.5V/0.25V
- Sensitivity (Power Amp input)

  1.4V
- Signal To Noise Ratio (Moving Coil)

  80dB
- Signal To Noise Ratio (Moving Magnet)

  82dB
- Signal To Noise Ratio (High Level)

  95dB
- Signal To Noise Ratio (Power Amp input)

  113dB
- Input Impedance (Balanced / Unbalanced)

  20K/20K
- Damping Factor

  >40
- Maximum Output (Balanced / Unbalanced)

  8V Unbalanced

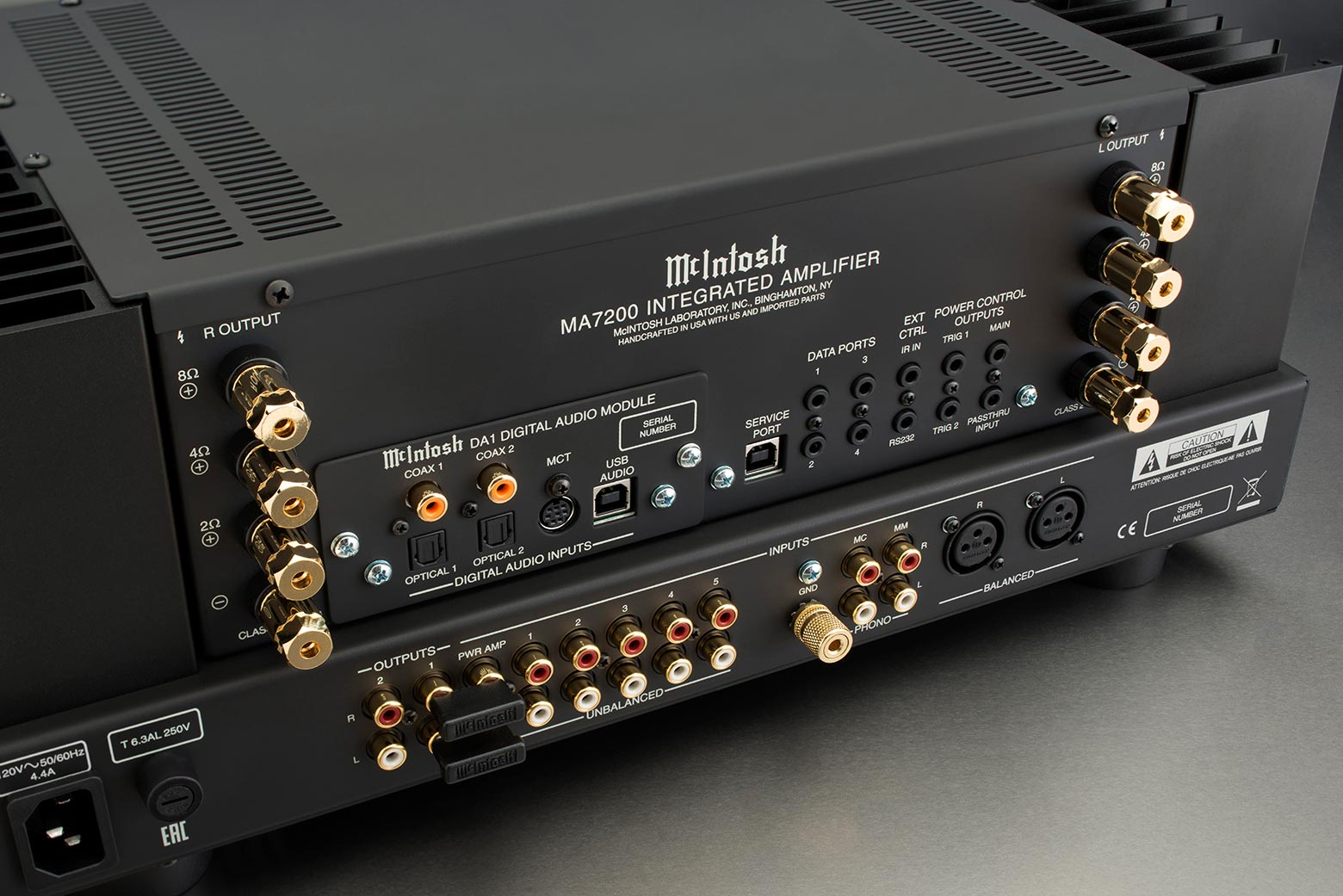

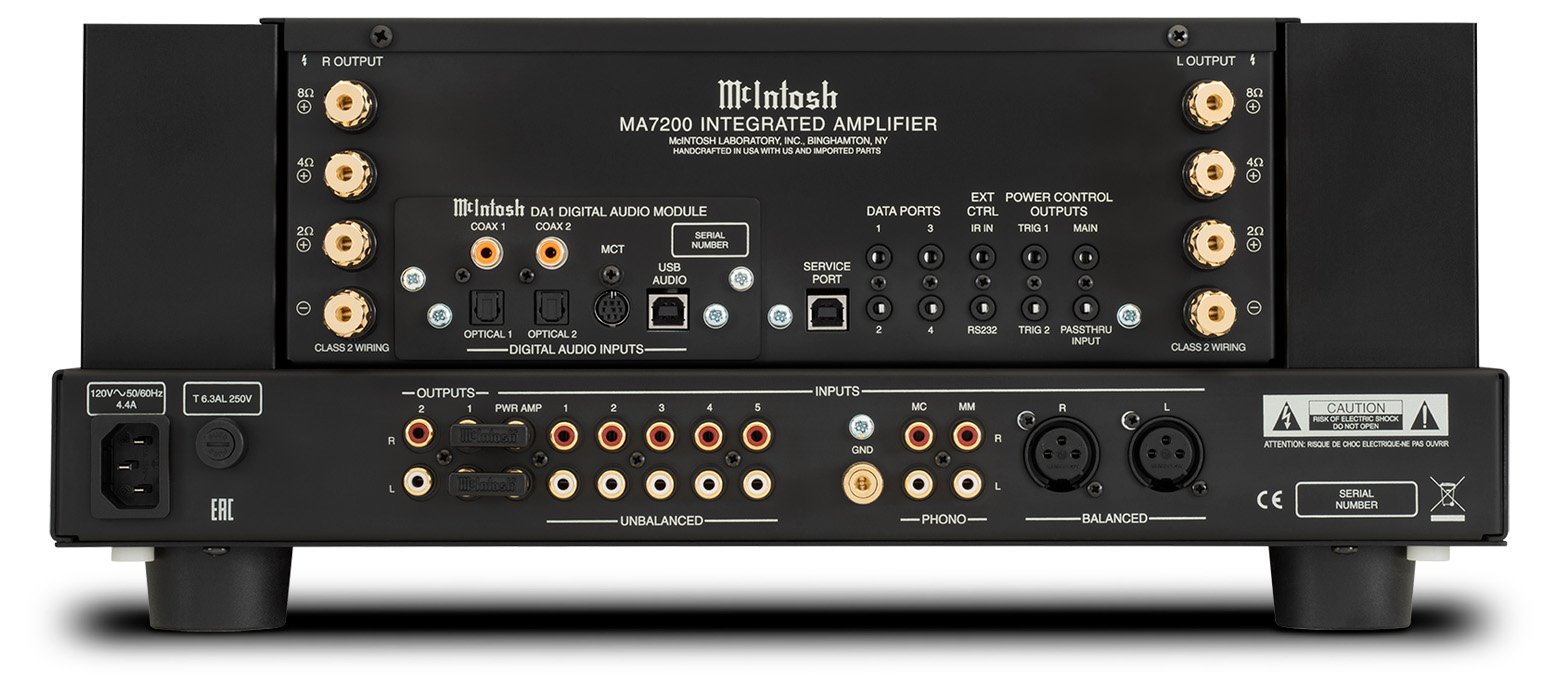

Connectivity
- Balanced Input

  1
- Unbalanced Input

  5
- Phono Input Moving Coil

  1 (adjustable loading)
- Phono Input Moving Magnet

  1 (fixed loading)
- Upgradeable Digital Audio Module

  Yes: DA1
- Digital Coaxial Input

  2
- Digital Optical Input

  2
- Digital MCT Input

  1
- Digital USB Input

  1
- HDMI (ARC) Input

  0
- Balanced Variable Output

  0
- Unbalanced Fixed Output

  0
- Unbalanced Variable Output

  2
- Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD^®)
- Subwoofer Output

  0
- AM/FM Tuner option

  No
- Home Theater PassThru

  Yes
- Unbalanced Analog Connector Type

  Standard
- Speaker Binding Post Type

  Standard
- Service Port

  1
Digital Audio Specifications
- Digital-to-Analog Converter (DAC) Type

  8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
- Digital Coaxial Input Sample Rate

  24-bit/44.1kHz to 192kHz
- Digital Optical Input Sample Rate

  24-bit/44.1kHz to 192kHz
- Digital MCT Input Sample Rate

  16-bit/44.1kHz (CD)
  DSD64 (SACD)
- Digital USB Input Sample Rate

  32-bit/44.1kHz to 384kHz (PCM)
  DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Control
- Tone Controls

  Bass and Treble
- Tone Bypass and Input Assign

  Yes
- RS232 Control Input

  Yes
- Power Control Output

  1 Main, 2 Trigger
- Rear Panel Data Port

  4
- Rear Panel IR Sensor Input

  Yes
- Input Level Match

  Yes
General Specifications
- Vacuum Tube or Solid State

  Solid State
- Output Type

  Autoformer™
- Output Meters

  Yes
- Dual Layer Chassis

  Yes
- Chassis Finish

  Black painted steel
- McIntosh Monogrammed Heatsinks™

  Yes
- Power Requirement

  120V 50/60Hz, 4.4 amps
- Standby Power Requirement

  <0.25 Watts
Weights & Dimensions
- Unit Dimensions (W x H x D)

  17-1/2" (44.5cm) x 7-5/8" (19.4cm) x 18-3/4" (47.6cm)
- Unit Weight

  75 lbs (34.1 kg)
- Shipping Weight

  93 lbs (42.3 kg)

Downloads

Product Literature	User Documents	Software Updates
MA7200 Integrated Amplifier Brochure (2.57 MB)	MA7200 Integrated Amplifier Owner's Manual (6.76 MB) MA7200 Integrated Amplifier Connection Diagram (1.29 MB) MA7200 Integrated Amplifier Rear Panel Connections (0.27 MB) MA7200 Integrated Amplifier Input Assignment Chart (0.13 MB) Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)	For units with DA1 Digital Audio Module: McIntosh USB Audio Windows Driver D v2.0 (compatible with Windows 7, 8, 8.1 and 10) (If v1.0 of driver is installed, it must be uninstalled before installing v2.0.) (4.53 MB) For units with DA2 Digital Audio Module: McIntosh USB Audio Windows Driver I v1.13 (compatible with Windows 10 and 11) (3.86 MB) For units with DA2 Digital Audio Module: McIntosh USB Audio Windows Driver I v1.5 (compatible with Windows 7) (2.1 MB)

Reviews & Awards

Reviews & Awards
MA7200 Review HiFi+ September 2018 (2.44 MB)
